Laboratory CR2016 CR2025 CR2032 Manual Coin Cell Crimping Machine Tool

Laboratory CR2016 CR2025 CR2032 Manual Coin Cell Crimping Machine Tool

  • Model: AOT-H-CM-5T
  • Origin: China
  • Pressure: 5T
  • Application: CR2016 CR2025 CR2032 Coin Cell
  • Product description: Laboratory CR2016 CR2025 CR2032 Manual Coin Cell Crimping Machine Tool with Max 5Ton Pressure. Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precisi
  • INQUIRY

Laboratory CR2016 CR2025 CR2032 Manual Coin Cell Crimping Machine Tool

Main Features

1.Small size, light weight,No oil linkage, easy to carry.

2.High speed steel imported from Japan

3.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

4.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

5.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

6.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

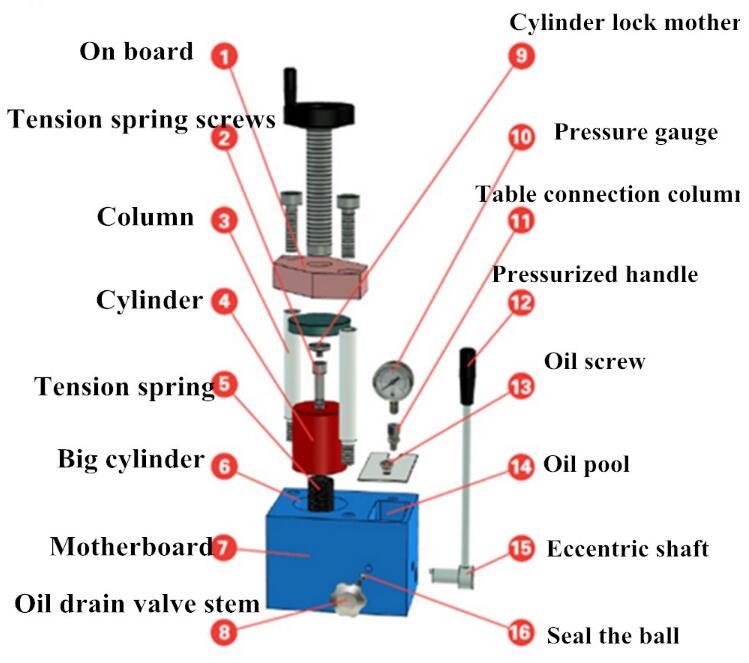

7.One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

8.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

9.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage

BatterySealing Machine

Model No.

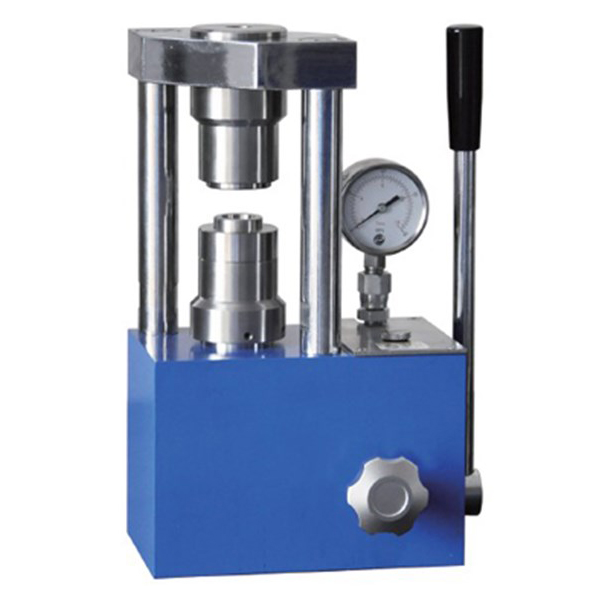

Hydraulic Manual Coin Cell Crimping Machine AOT-H-CM-5T

Press Range

0~5T (0~31MPa)

Piston Diameter

O.D 45mmm

Main Structure

All in one structure,don't have leak point

Pressure gauge

Pointer Pressure gauge

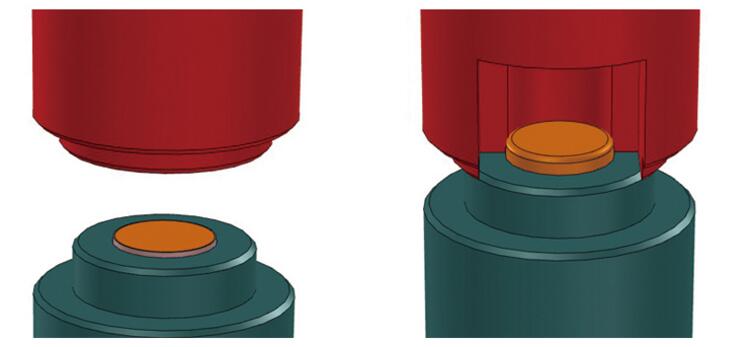

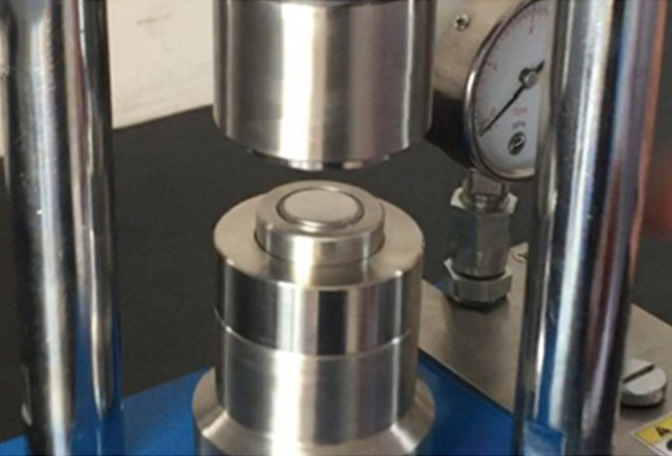

Standard Mold

CR20 Sealing Mold

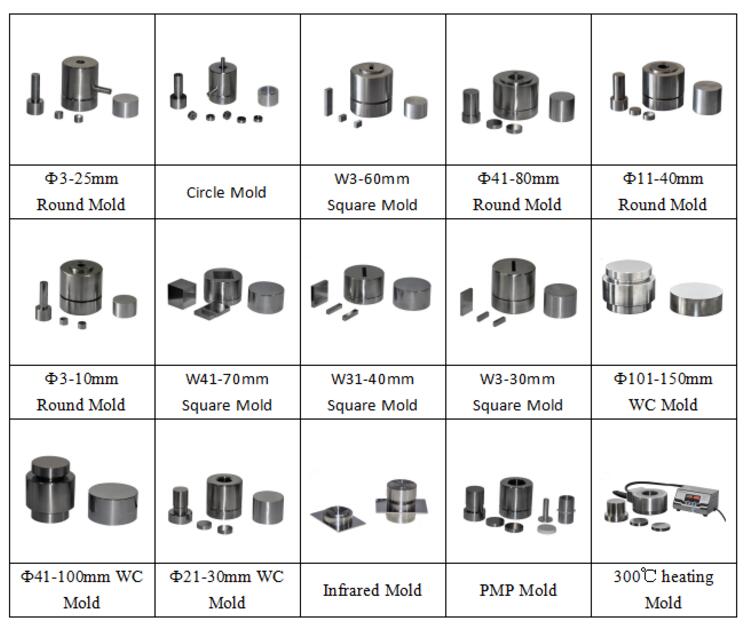

Optional Mold

CR16, CR20,CR24,CR30 etc

Sealing pressure

0.8~1.2T

Demoulding Mold

CR16, CR20,CR24,CR30 etc

Column

2 pieces column

Demoulding Pressure

less than 0.4T

Outer dimension

225*155*320mm

Gross weight

28Kg

We can also provide revised mold to hydraulic Press Machine
