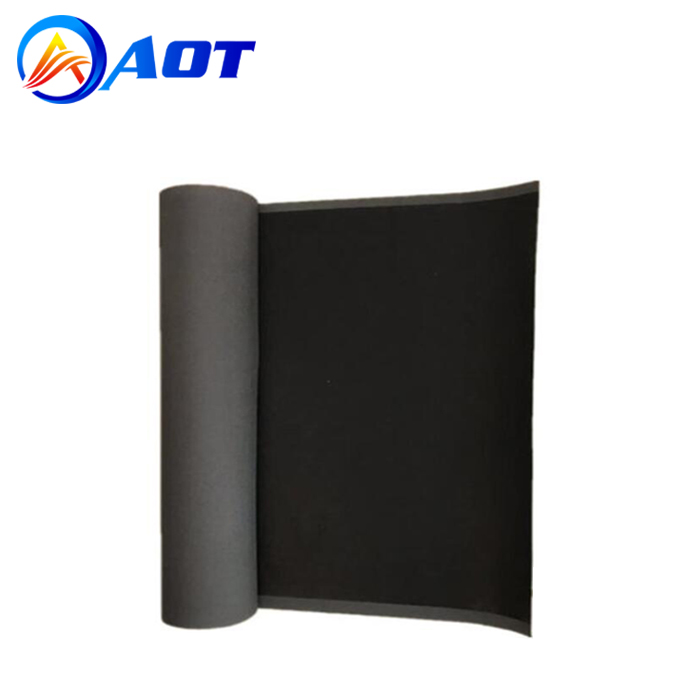

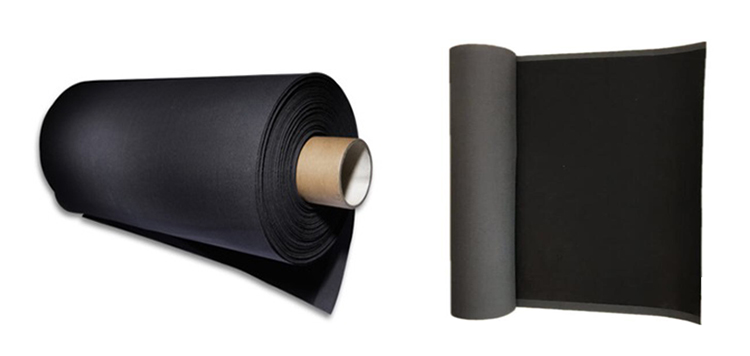

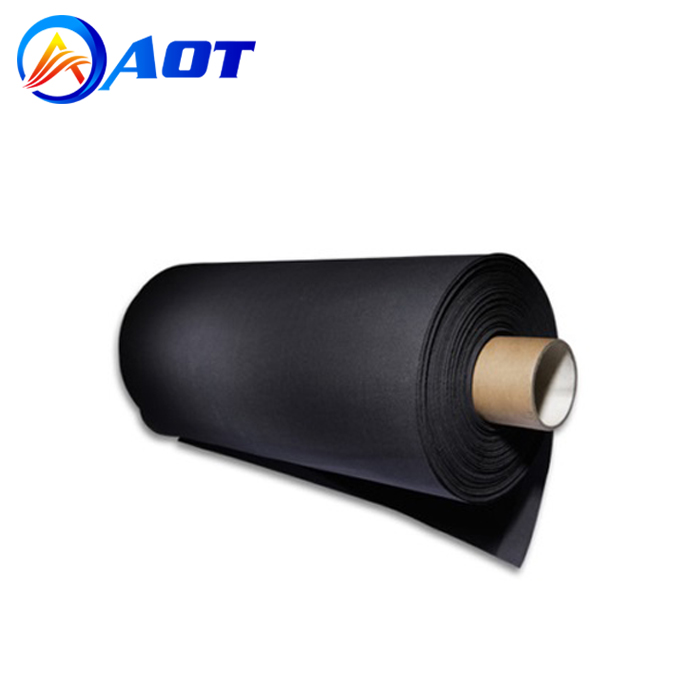

High-Performance Flexible Hydrophilic Carbon Cloth for Supercapacitor

  • Name: Carbon Cloth
  • Thickness: 0.3mm
  • Size: 20cm*20cm
  • Origin: China
  • Product description: Carbon cloths are the important materials composed of woven carbon fibres, these materials have been investigated for innumerable applications such as supercapacitors (symmetric and asymmetric), batte
  • INQUIRY

Hydrophilic Carbon Clothfor Supercapacitor


Note: Hydrophobic is optional.


Carbon cloths are the important materials composed of woven carbon fibres having the diameters in the range of 5–10 μm. These materials have been investigated for innumerable applications such as supercapacitors (symmetric and asymmetric), batteries, solar cells, and catalysis.


Carbon Cloth Features:

1. Soft, flexible, can be bent 180°

2. High strength, Not easy to break

3. Although it has burrs, it is not easy to fall apart after cutting

4. Good conductivity, resistance ratio less than 5mΩcm2


Application of carbon cloth:

1. hydrogenfuelcell (PEMFC)

2. Methanol fuel cell (DMFC)

3. Supercapacitor

4. Microbial fuel cell

5. Suitable for growing and depositing materials in liquids


Product Property Test


Actually measure a value

AVG

Thickness(mm)

0.32

0.32

0.33

0.33

0.32

0.33

0.33

Nominal Basis Weight(g/m2)

114

116

115

115

Air Permeability(Gurley)

1.32

1.35

1.26

1.31

Resistance(mΩcm2)

(Through Plate)

1.88

1.96

1.84

1.89

Tensile Strength(N/cm)

MD

22.6

19.6

24.9

22.37

XD

9.8

9.2

12.2

10.40


*Resistance(mΩcm2)(Through Plate) four point measurement, copper plate cootact under 200pst testing area 19.6cm2.
