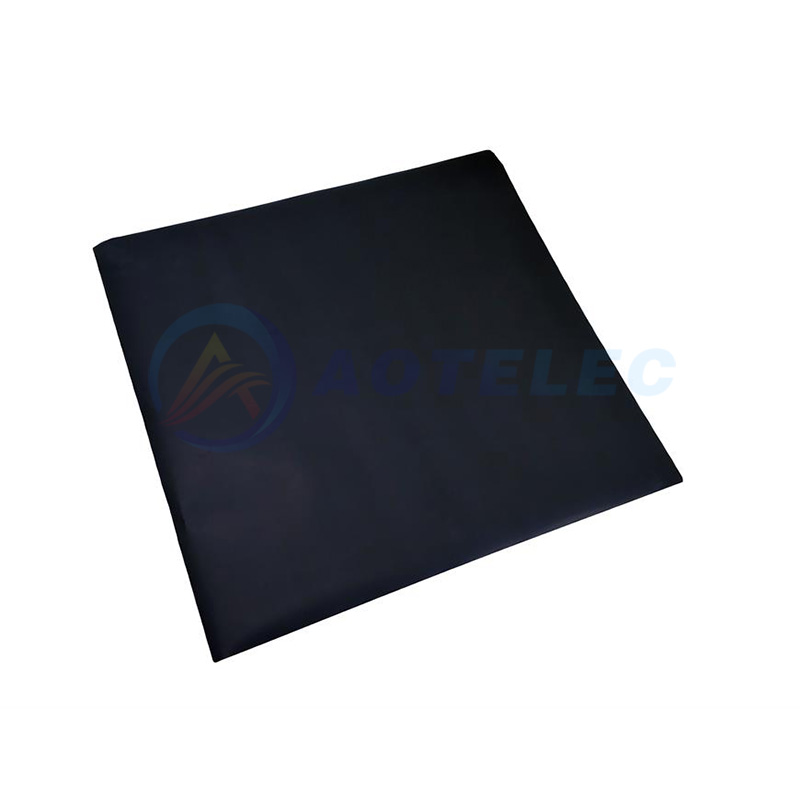

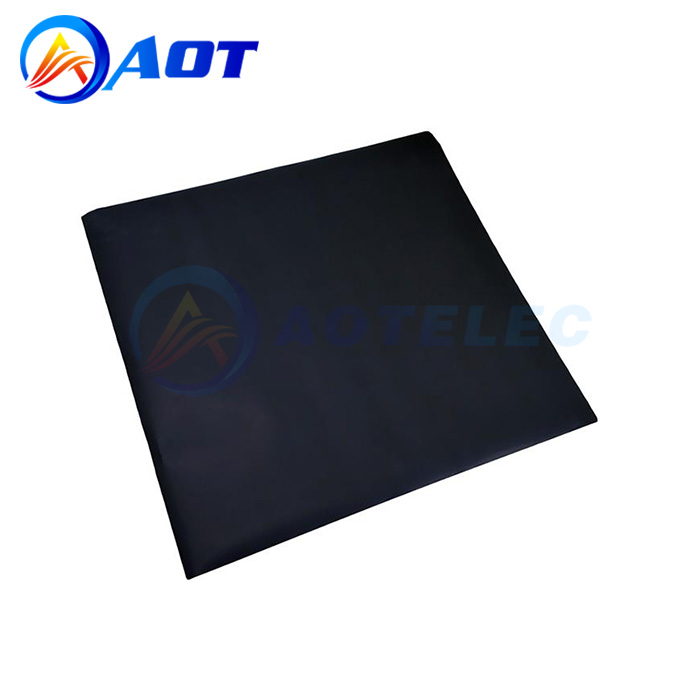

This electrode sheet is based on Aluminum Foil coated by Lithium Nickel Manganese Cobalt Oxide on a single side and is used as the cathode of Li-Ion battery.
SPECIFICATIONS
Material |
LiNiCoMnO2 ( 5:2:3) |
Current collector (substrate) |
Aluminum foil ( 15 microns) |
Single sides active material density |
121g/㎡ |
Active Material Weight |
4.821g |
Cathode material |
Lithium Nickel Manganese Cobalt Oxide |
Active Material Proportion in Powder |
94.2% |
Specific Capacity |
155 mAh/g |
Average Cycle Life |
500 Cycles @ 0.2C Charging/Discharging Rate |
Size |
Length: 241mm*Width: 200mm*Thickness: 60um +/- 5um |
Foil Thickness |
15um +/- 5um |
Coating Thickness |
45um +/- 10um (double side coated) |
Net Weight |
19.5g |
Qty |
5 sheets/bag |
