Manual Coin Cell Disc Punching Tool for Battery Electrode Cutting

Manual Coin Cell Disc Punching Tool for Battery Electrode Cutting

Model: AOT-T-12
Dia. 8mm, 15mm,18mm,20mm
Origin: China
Delivery Time: 1-3days
Product description: AOT-T-12 manual coin cell punching tool is a cost-effective lab cutting tool forlithium battery electrode disc prepare, It is easy to change cutter die through a permanent magnet holder and good for o
INQUIRY

Manual Lab Coin Cell Disc Cutting Tool withOptional Cutter Die 8-20 mm

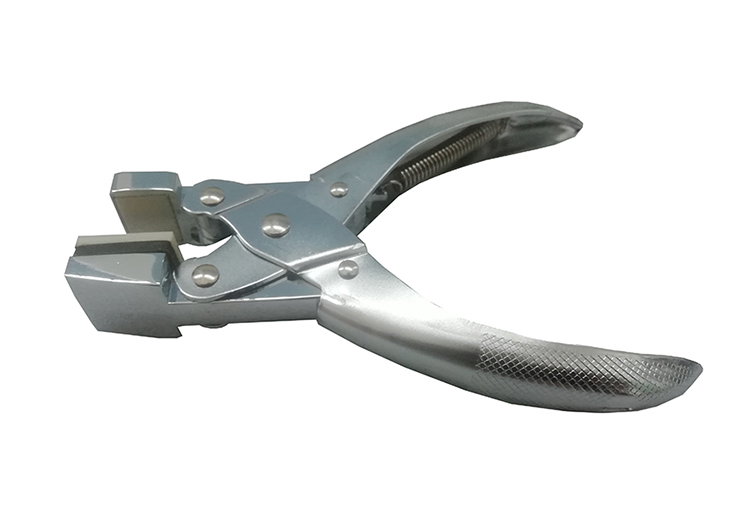

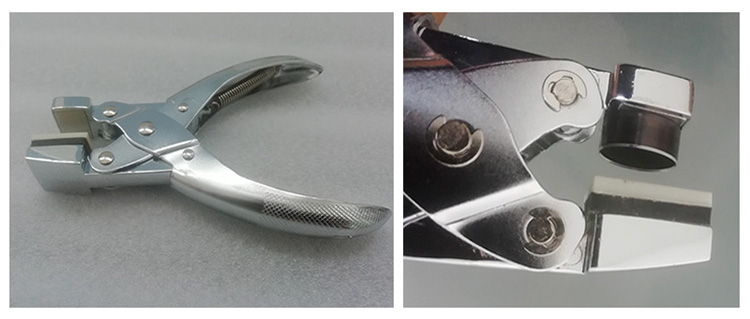

AOT-T-12 is a manual coin cell punching tool with optional cutting dies(Diameter: 8, 15, 18, 20 mm). It is a cost-effective lab cutting tool forlithium battery electrode disc prepare, also for other materials cutting,such as Al, Cu, Li, and coated battery electrode sheet. It is easy to change cutter die through a permanent magnet holder and good for operating in a glove box.

Name	Hand-Held Coin Cell Disc Cutter for Lab
Advantage	Small size, low cost, light weight, convenient
Ring Cutting Die	Diameter 8mm,15mm, 18mm and 20mm, other size customized.
CuttingThickness	Max0.3 mm for soft metallic foil
Cutting Accuracy	±0.01mm
Product Dimensions	157 x 109 mm
Warranty	One-year limited manufacturer warranty with lifetime support
Warranty	Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty
Storage	Spare cutting die shall be stored in the dry box to avoid rushing
Net Weight	0.5KG
