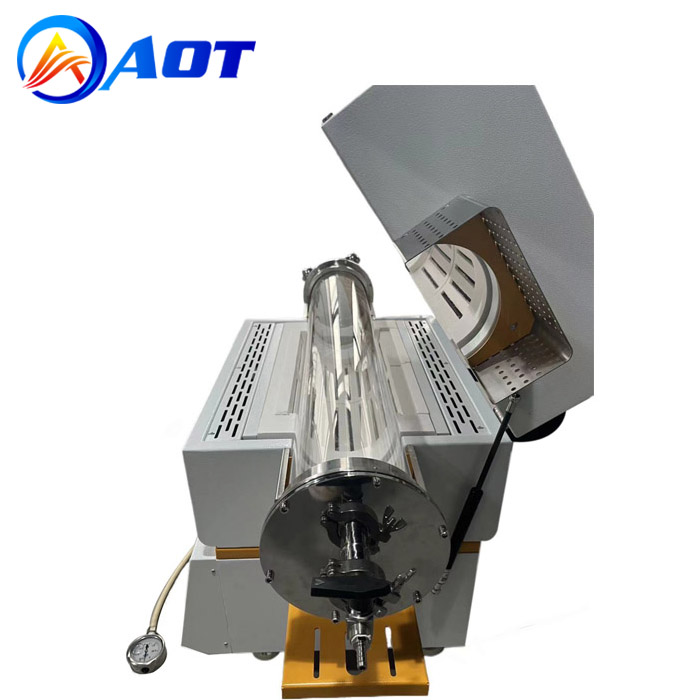

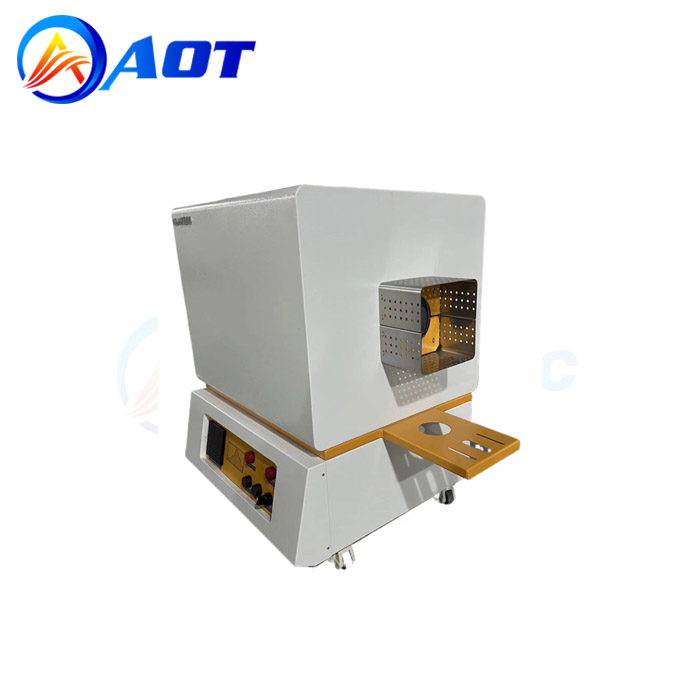

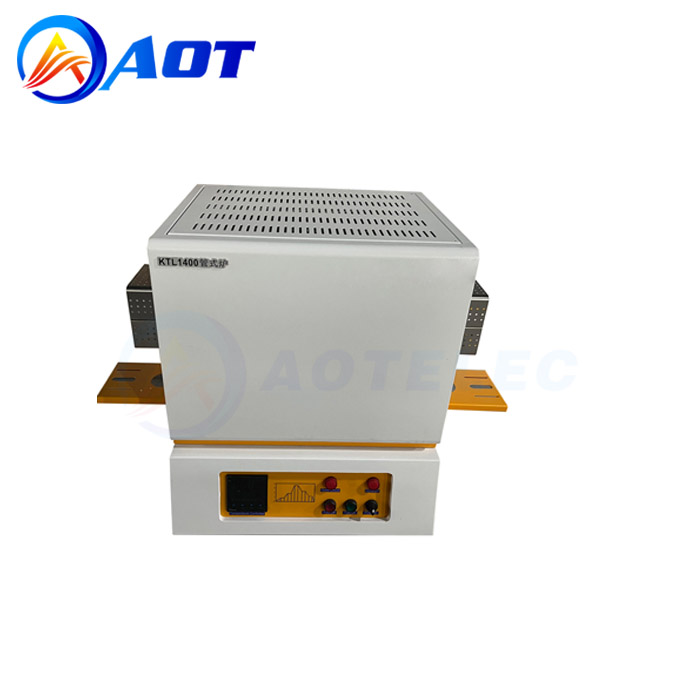

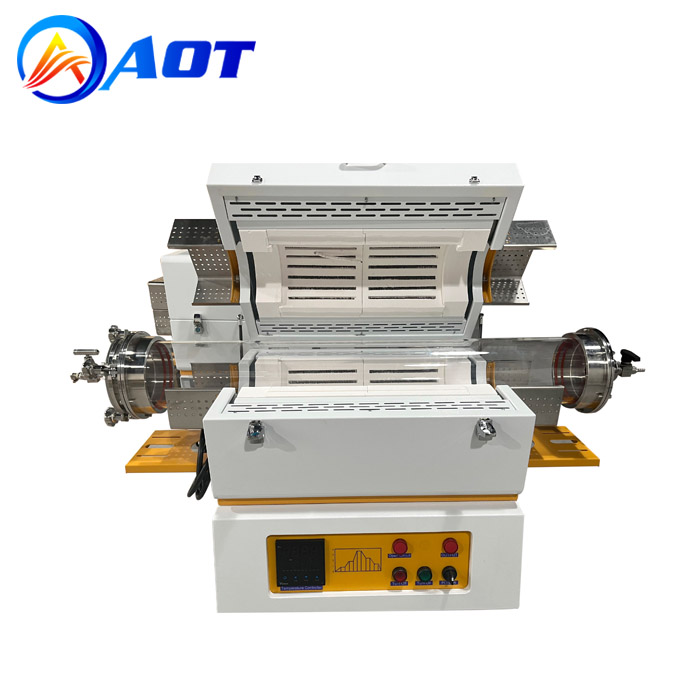

Tube Furnace Single Phase Electric Vacuum Tube Furnace with Small Quartz Tube

  • Product Name:Product Name
  • Model Number:AOT-KTL1400
  • Brand Name. AOT
  • Product Orgin:China
  • Product description: This tubular furnace uses silicon carbon rod as heating element, adopts double shell structure and temperature control meter, can carry out 30 stage programmed temperature control, phase shift trigger
  • INQUIRY

AOT-KTL1400 Tube Furnace description:

This tubular furnace uses silicon carbon rod as heating element, adopts double shell structure and temperature control meter, can carry out 30 stage programmed temperature control, phase shift trigger, thyristor control, the furnace adopts alumina polycrystalline fiber material, both ends of the furnace tube can be sealed by stainless steel flange, stainless steel flange installed with gas nozzle, valve and pressure gauge. The furnace has the advantages of balanced temperature field, low surface temperature, fast rising and falling temperature rate, energy saving, etc.

Product technical parameters:

Model

AOT-KTL1400-60

AOT-KTL1400-80

AOT-KTL1400-100

Quartz tube size

60*1000 mm

80*1000 mm

100*1000 mm

Overall dimensions

1300*600*860 mm

1300*600*940 mm

Power

5 KW

6KW

phase number

single phase

heating element

silicon carbide rod

temperature control accuracy

+/- 1 ℃

heating rate

≤20 / Min

maximum temperature

1400

temperature rating

1300

Recommended heating rate

≤10 / Min

Thermocouple model number

Type S

Length of heating section

300mm

Length of constant temperature section

150-200mm

Ambient surface temperature

 ≤45

vacuum pump

Optional according to customer requirements on vacuum degree

Weight

8 2Kg

8 2Kg

90Kg
