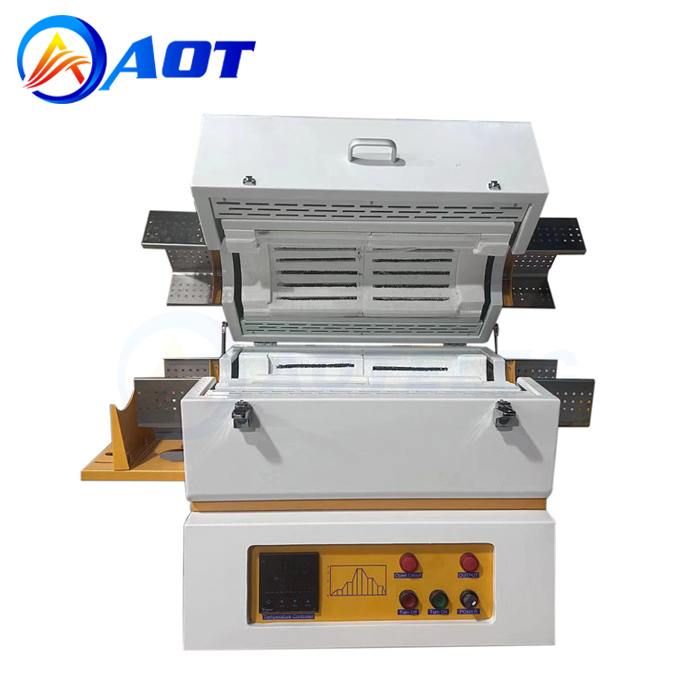

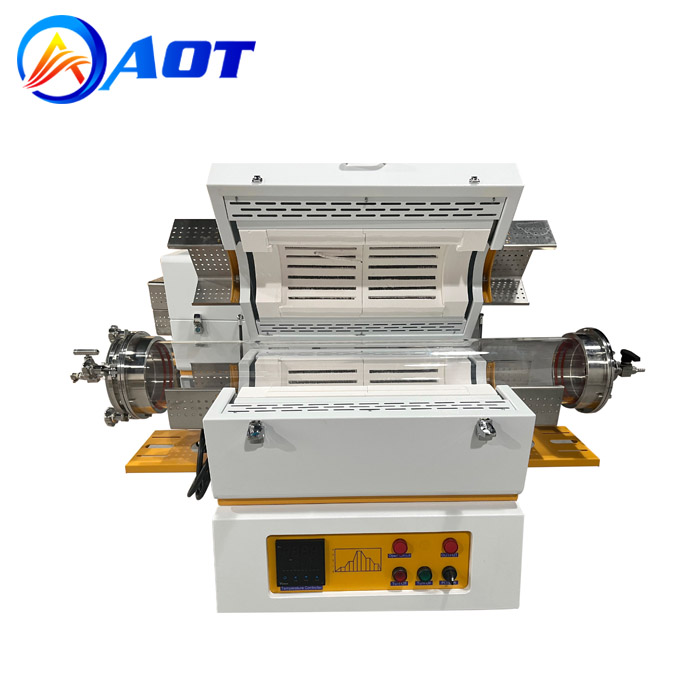

OTL1200 tubular Furnace introduction

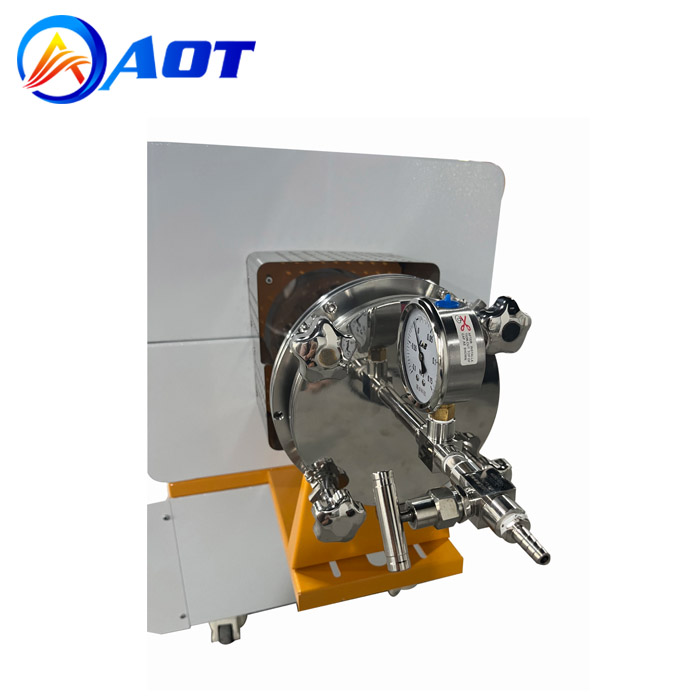

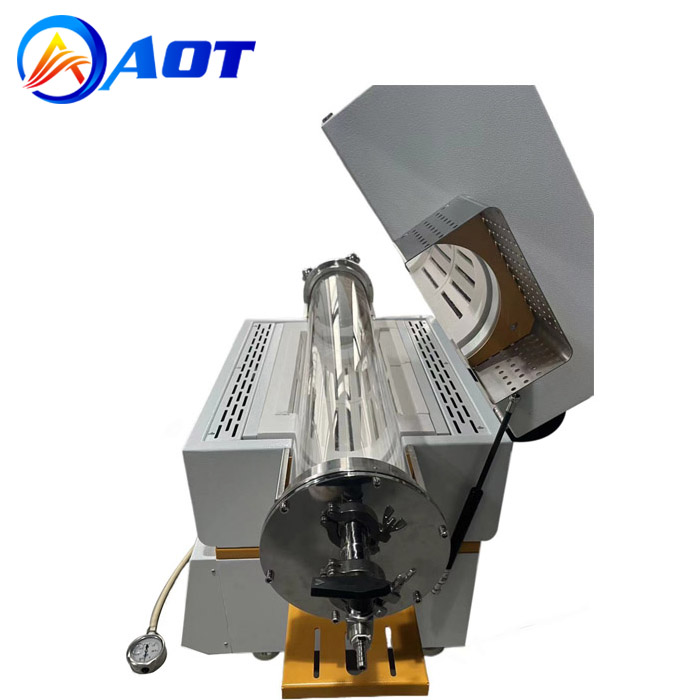

This tubular furnace takes resistance wire as heating element, adopts double shell structure and temperature control meter, can carry out 30 stage programmed temperature control, phase shift trigger, thyristor control, furnace adopts alumina polycrystalline fiber material, both ends of the furnace tube can be sealed by stainless steel flange, stainless steel flange installed with gas nozzle, valve and pressure gauge. The furnace has the advantages of balanced temperature field, low surface temperature, fast rising and falling temperature rate, energy saving, etc. It is an ideal product for high temperature atmosphere sintering, atmosphere reduction, CVD experiment and vacuum annealing in universities, scientific research institutes and industrial and mining enterprises.

The tube furnace uses a programmed temperature meter

1, 30-segment programme temperature control intelligent PID regulation.

2, with over-temperature protection broken even protection over-temperature or broken even when the furnace heating circuit automatically cut off, (when the temperature of the furnace exceeds 1200 degrees or thermocouple burned out, the main circuit of the AC relay will automatically disconnect, the main circuit is disconnected, the panel ON lights off, OFF lights, limited protection of the furnace).

3, with a power failure protection function, that is, after the power failure and then give power to start the furnace, the programme is not from the starting temperature to rise, but from the power failure when the temperature of the furnace began to rise.

4、Instrument has the function of temperature self-tuning.

Company Profile

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.

Exhibition

AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Certificate

Cooperative

FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
