Automatic Assembly Line of Electric Vehicle Battery, Energy Storage Battery and Power Battery Pack

  • Battery Pack Production Line 3
  • Type: Semi-automatic and Automatic
  • Origin: China
  • Warranty: 1 Year
  • Product description: This automatic battery production assembly line mainly realizes the automated production process of battery packs. The total length of the line is 16 meters, and the whole line is composed of the sort
  • INQUIRY

Automatic assembly line of electric vehicle battery,energy storagebatteryandpower battery pack

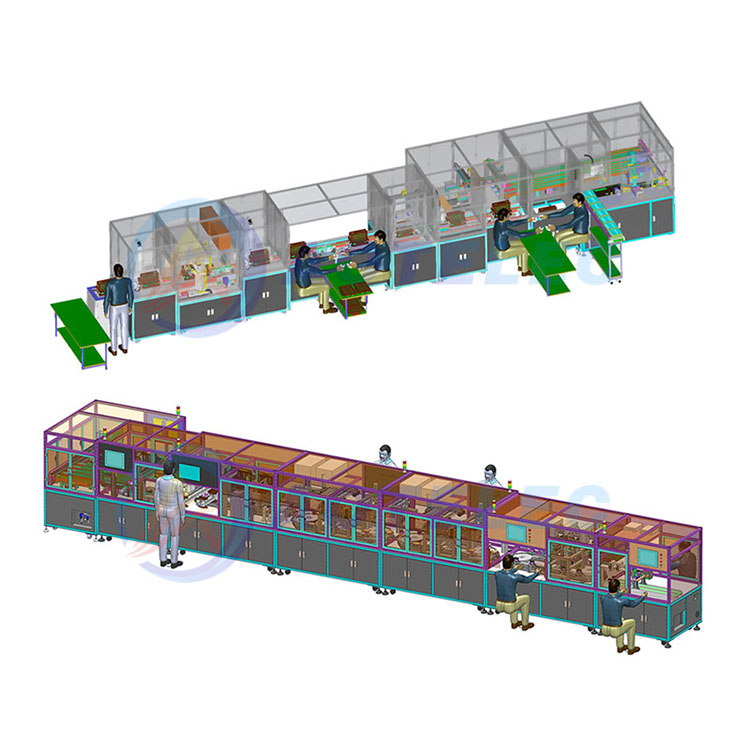

This line mainly realizes the automated production process of battery packs. The total length of the line is 16 meters, and the whole line is composed of the following equipment:

(1) Automatic sorting of battery loading test data from highland barley paper batteries (2) Robot to (3) Battery pack bracket assembly, (4) Nickel welding of battery pack (5) BMS PCB welding-6 battery components.Including multi-station fast and high-precision automatic battery pack production line, picking robot and CCD inspection effect.All devices can be linked together, with simple interface, convenient operation and convenient maintenance. Each device has its own control system and display screen.


Automatic LithiumBattery PackAssemblingLine

 1

Automatic batteries loading system

Full automatic battery cell transfer system, save labor cost

2

Aumatic sticking machine

barley paper insulation pasting to prevent short circuit

3

Automatic sorting machine

Automatic sort the batteries by testing internal resistance and voltage

4

Automatic CCD testing machine

Inspect whether the positive(+) and negative(-) of batteries are misplaced

5

Automatic spot welding machine

Weld the cells together according to design, single side spot welding and double side welding is optional

6

Automatic Battery performance tester

For quickly checking the performance of semi-finished battery pack by charging, discharging, AC/DC resistance, testing different pressure/internal resistance etc.

7

Other Equipment

Other supportingdevice


As one of the representatives of China's lithium battery intelligent equipment enterprises, AOTELEC Battery Technology has independently developed a semi-automatic assembly line system for lithium battery PACK based on the characteristics of the battery module group.

Automatic battery pack assembling line for energy storage battery

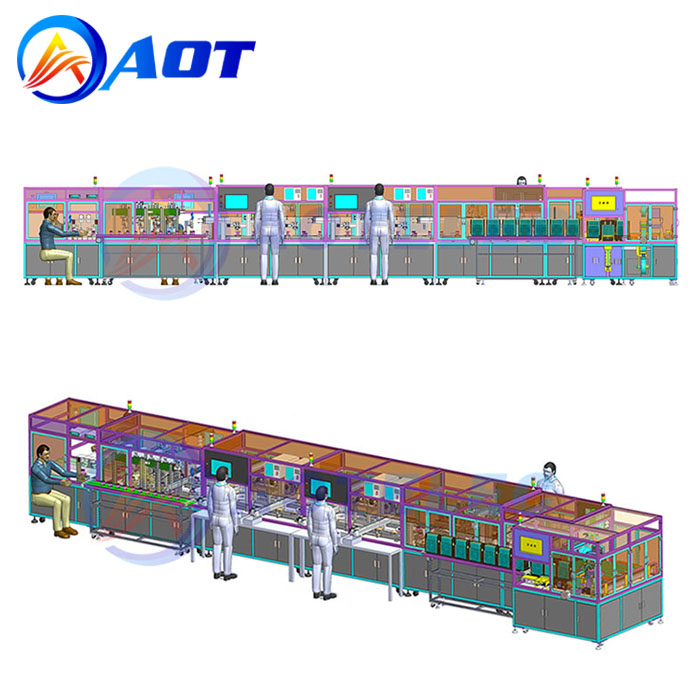

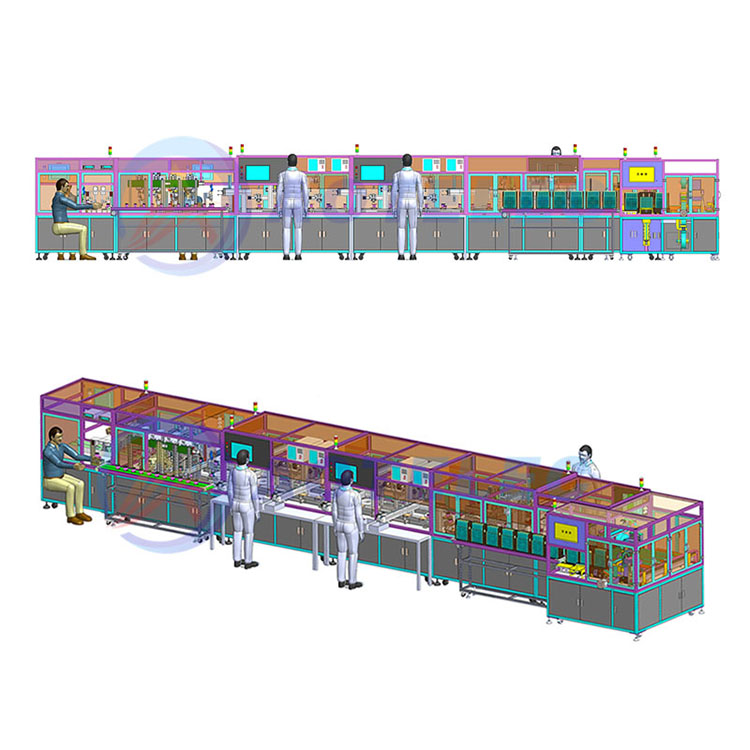

Automatic battery pack assembly line for electric vehicle
