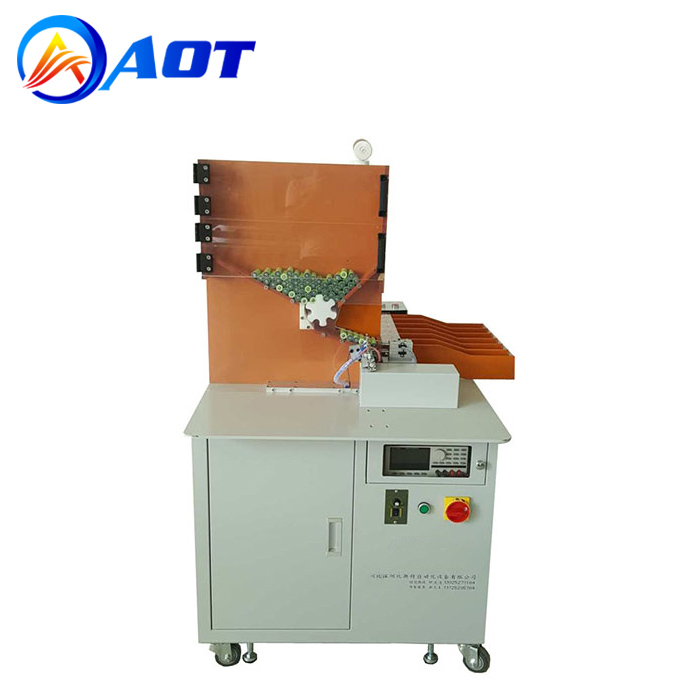

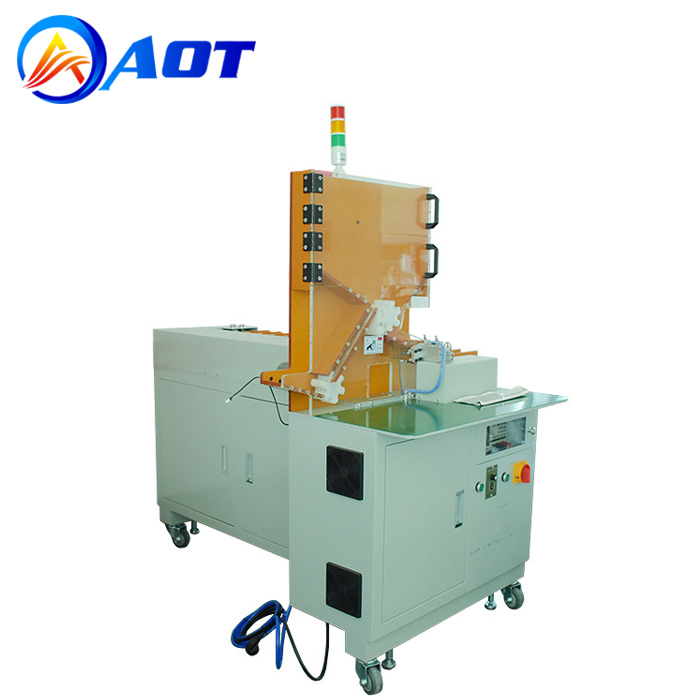

It is a necessary equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting. 5 channels automatic cell sorter is designed to sort cylindrical 18650 cells.
Sort by cell's voltage and impedance up to up to 5 groups
Automatic sorting control
Fast sorting speed (5000 batteries/hr)
Easy to refill cells during the process
wheels design, easy to move the machine to any operating place
BATTERYPACK EQUIPMENT- 18650 batterysoring machine |
|
Item Name |
5 channels Automatic 18650 sorting machine |
Power Supply |
220V/50HZ; 110V can be customized |
Power |
1.6KW |
Air Pressure |
0.4-0.8Mpa |
Application |
Automatic soring 18650 cells by voltage and internal resistance, or separately sorting voltage or sorting internal resistance |
Voltage Range |
0-6V |
Voltage Accuracy |
0.00005V |
Resistance Range |
0-999.9mΩ |
Resistance Accuracy |
0.01mΩ |
Scanning Function |
Optional (standard model don’t have this function) |
Automatic on-line interface |
Can be customized(connected to the automatic surface cushion machine, achieve automatic connection of the cells, save labor costs) |
Sorting Speed |
About 5000pcs cells/hour (standard); 3000pcs cells/hour (with scanning function) |
Display |
7.5 inch touch screen control |
Dimension |
L 1100mm*W 930mm*H 1390mm |
Weight |
About130KG |
Warranty |
2 years |
