11-Channel Automatic Cylindrical Battery Sorting Machine for Battery Pack Line

  • Model: AOT-ST-1811
  • Suitable: 18650 Battery Cells
  • IR test range:0mΩ-999.9 mΩ
  • Origin: China
  • Product description: 11 Channel Automatic Cylindrical Battery Sorting Machine for Battery Pack Assembly Line, suitable for kinds of cylindrical batteries such as 18650 and 26650, 32650 ,21700 cells.
  • INQUIRY

Description

It is a necessary machine for cylindrical battery pack assembly, it is for voltage and resistance testing and sorting.

10 Channel automatic cell sorter is designed to sort cylindrical 18650. 26650 , 32650, 21700 cells are optional.

Sorting process is set by software, automatic sorting control
Hopper loading box, easy to refill cells during the process
Four wheels design, easy to move the machine to any operating place


Specifications

Model

Automatic battery sorting machine AOT-ST-1811

Voltage supply

220V/50HZ

Power

1.6kw

Air Pressure

0.4-0.8Mpa

Display screen

7.5-inch touch screen, 3-axis PLC programmer

Suitable for

18650 battery

Receiving channel

10 sorting and matching channel,1 unqualified channel

Internal resistance setting

0mΩ-999.9 mΩ

Voltage setting

0-6V

Production efficiency

About 5000pcs/h

Feeding

By hopper, 500pcs cells one time

External connection

Customizable automatic connection padding machine

Tester

Standard tester: HOPETECH HK3560 tester (Hioki tester is optional)

High speed tester

Voltage accuracy 0.00001V

Internal resistance precision 0.01 mΩ

Motion device

Step shifting using closed-loop stepper motor, and the positioning is accurate.

The synchronous belt conveys the cell to prevent the cell surface damaged

Advantage

Automatic collection the production quantity to show current production efficiency

Test data can be stored in U disk

Optional cell dynamic tester, Practical embodiment the quality and load performance of cell

The equipment debugging is simple, easy to learn and easy to understand, with fault alarm

Package size

L1650*W1250*H1690mm

Weight

About 350kg


Reference Pictures

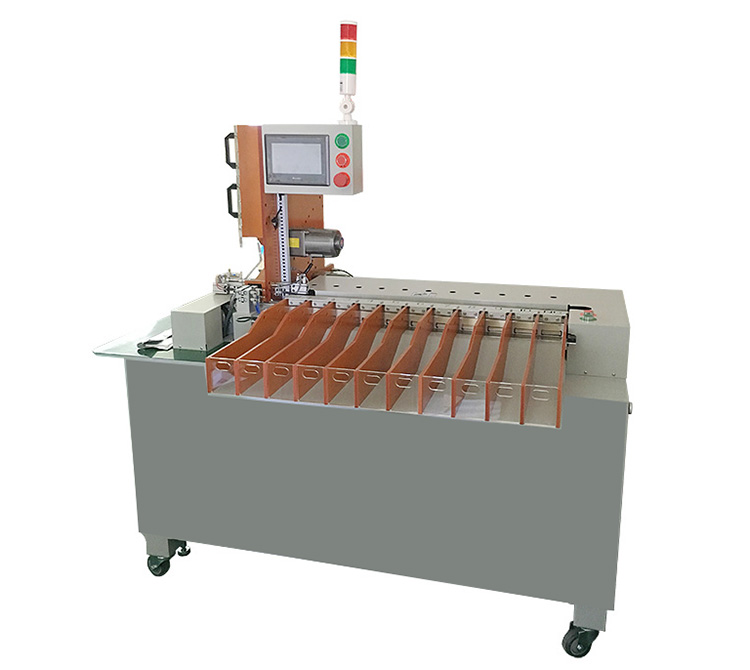

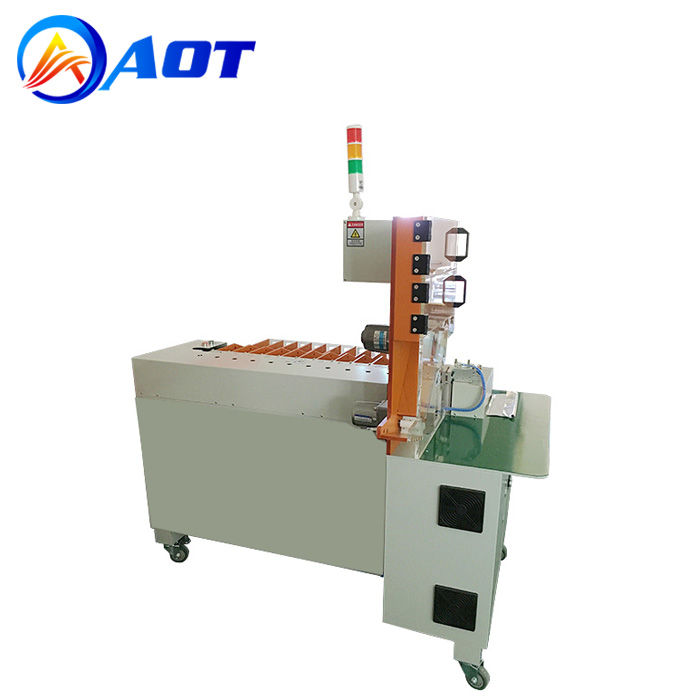

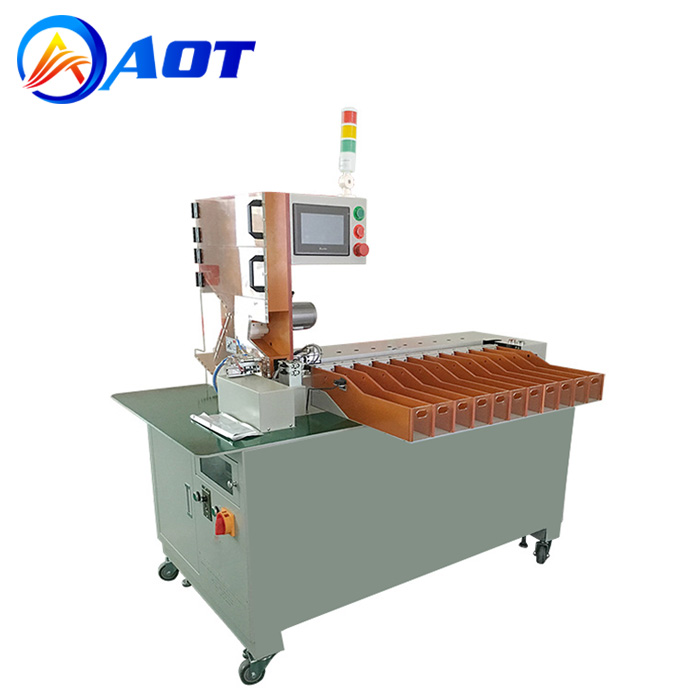

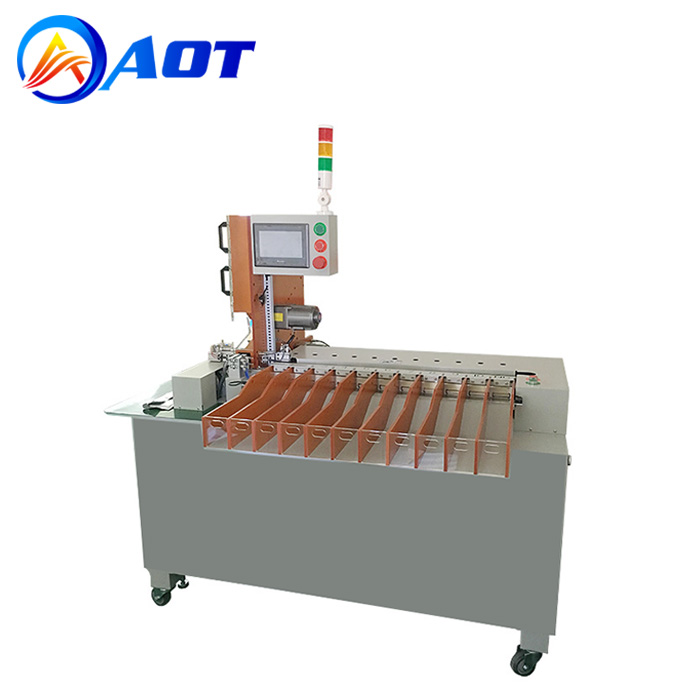

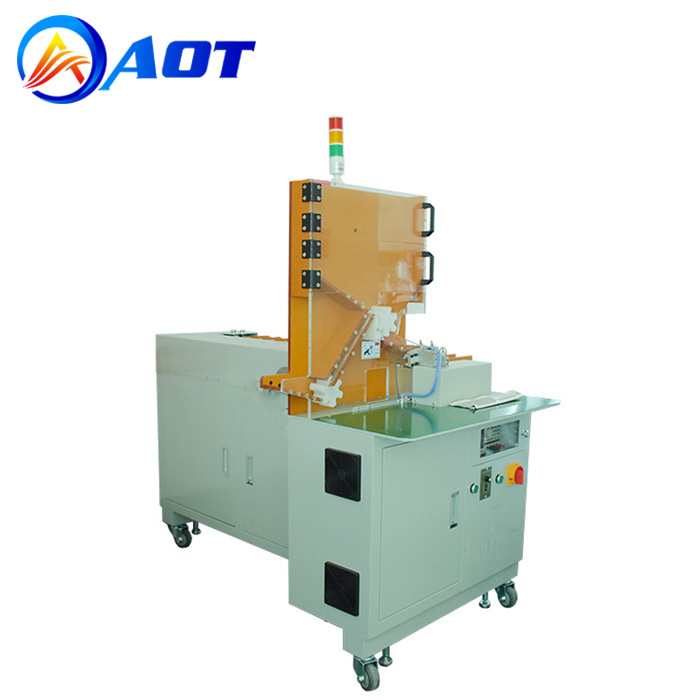

Automatic 18650 Battery Cell Sorter Machine for Pack Line

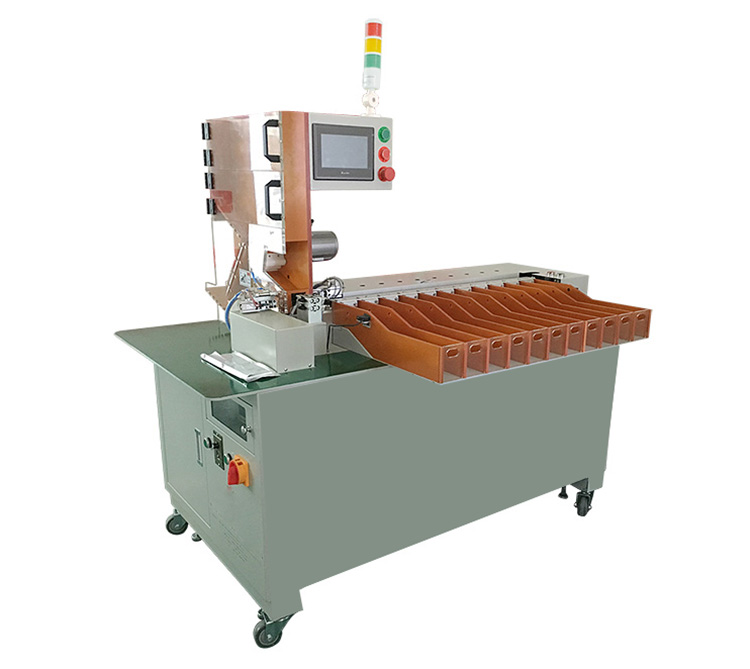

Automatic-18650 Battery Grading Sorting Machine

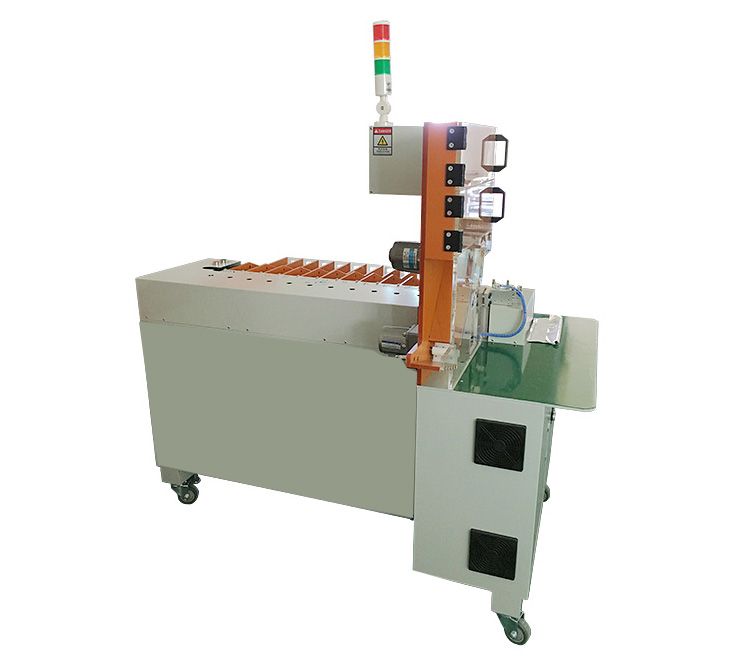

Automatic-18650 Cell Battery Sorting Machine
