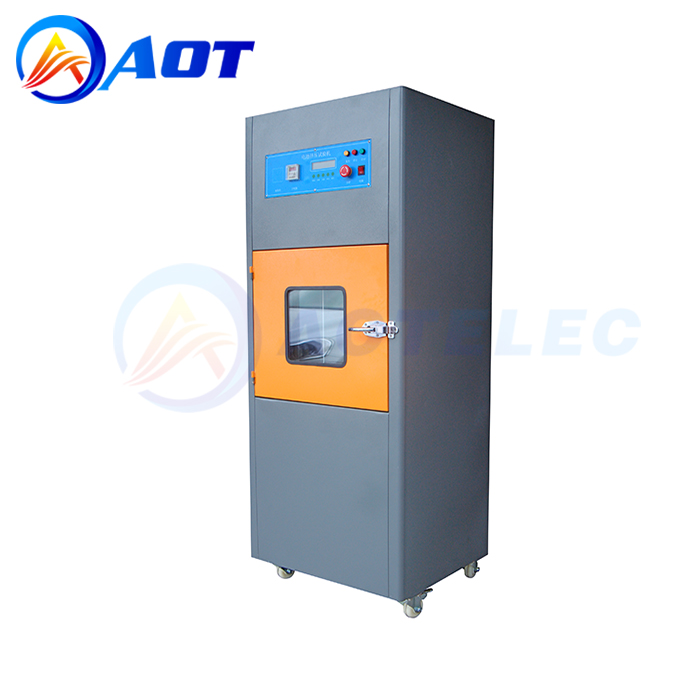

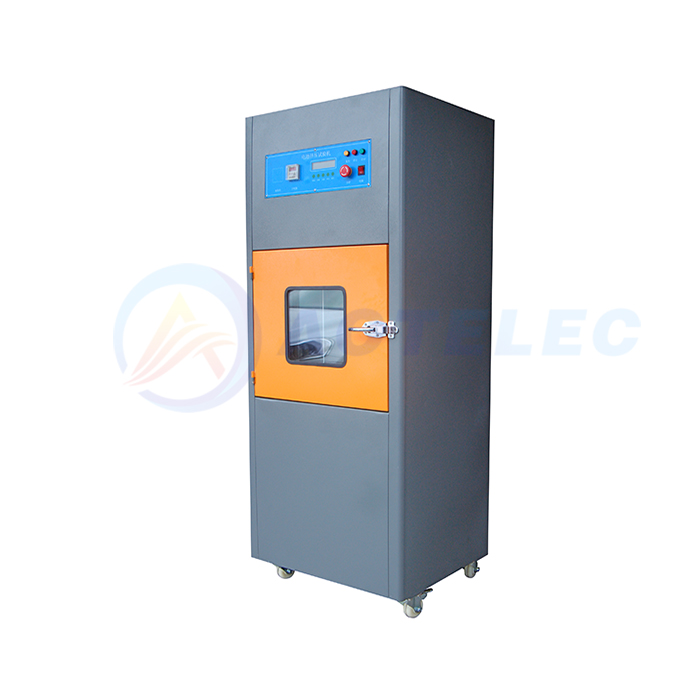

Battery Extrusion and Acupuncture Tester Machine For Lithium Battery

Battery Extrusion and Acupuncture Tester Machine For Lithium Battery

  • Product Name:Battery​ Extrusion and Acupuncture Tester
  • Model:AOT-EAT-01
  • Force value range:1 ~ 20kN
  • Origin:China
  • Product description: The all-in-one battery extrusion and needle punching machine is suitable for simulating the situation that the battery is squeezed and needled when using, transporting, storing or disposing of househo
  • INQUIRY

The all-in-one battery extrusion and needle punching machine is suitable for simulating the situation that the battery is squeezed and needled when using, transporting, storing or disposing of household waste.

The extrusion direction of the extrusion test should follow the following rules: a battery is only squeezed once, and the battery is qualified if it does not explode or fire.

1. For cylindrical batteries, the longitudinal axis of the extrusion battery should be parallel to the two flat plates of the extrusion device;

2. Square and pouch cell batteries, only squeeze the wide side of the battery;

3. Coin cell or button cell batteries are squeezed so that the upper and lower planes of the battery are parallel to the flat plate.


Specification:

Product Name

Battery Extrusion and Acupuncture Tester Machine

Drive mode

hydraulic drive

 Force value range

1 ~ 20kN

Force measurement accuracy

0.1N

Unit conversion

kg, N, lb

Extrusion stroke

200mm or 300mm

Force value display

LCD display

Battery extrusion head

standard extrusion head, area ≥ 20cm

 Extrusion degree

the extrusion pressure reaches 13±0.2kN, and keep it for 1min

Box material

inner box stainless steel,

outer box cold-rolled steel plate spray treatment

Features

The rear side of the box is designed with an air outlet and a pressure relief device, and the box is equipped with lights

Test space(L*W*H)

300x300x300mm

Dimensions(L*W*H)

700x800x1830mm

Power supply

AC380V, 50HZ

 Weight

220kg

 Steel needle

φ5mmφ8mm high temperature resistant steel needle, the length is 100mm (can be specified).

Needling stroke

200mm or 300mm

Clampable battery distance

 200mm

 Needling speed

1040mm/s (can be specified)

Acupuncture force value

1200Kg (optional)

Force value display

 LCD display

 Force measurement accuracy

 ±1%

 Drive mode

 cylinder drive or hydraulic drive

 Battery Extrusion and Acupuncture Tester Machine Drive mode hydraulic drive Force value range 1 ~ 20kN Force measurement accuracy 0.1N Unit conversion kg, N, lb Extrusion stroke 200mm or 300mm Force value display LCD display Battery extrusion head standard extrusion head, area ≥ 20cm Extrusion degree the extrusion pressure reaches 13±0.2kN, and keep it for 1min Box material inner box stainless steel, outer box cold-rolled steel plate spray treatment Features The rear side of the box is designed with an air outlet and a pressure relief device, and the box is equipped with lights Test space(L*W*H) 300x300x300mm Dimensions(L*W*H) 700x800x1830mm Power supply AC380V, 50HZ Weight 220kg Steel needle φ5mm~φ8mm high temperature resistant steel needle, the length is 100mm (can be specified). Needling stroke 200mm or 300mm Clampable battery distance 200mm Needling speed 10~40mm/s (can be specified) Acupuncture force value 1~200Kg (optional) Force value display LCD display Force measurement accuracy ±1% Drive mode cylinder drive or hydraulic drive
