18650 Cylindrical Cell Case Disassembly Machine

18650 Cylindrical Cell Case Disassembly Machine

Product Name; Disassembly Machine
Power：100W
Model:AOT-530
Origin:China
Product description: OT-530 is a manual machine for disassembling cylinder cases in lab research, it’s equipped with different dies to disassemble different cylindrical batteries (18650, 26650,32650).
INQUIRY

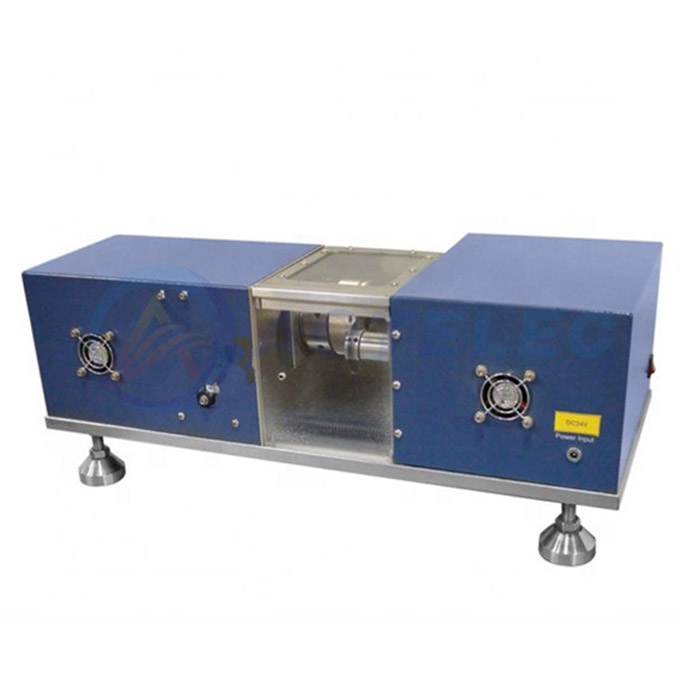

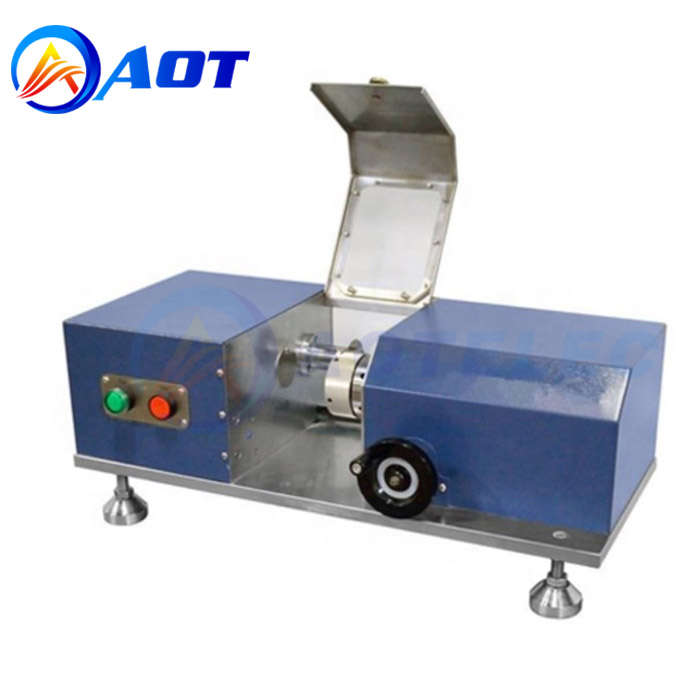

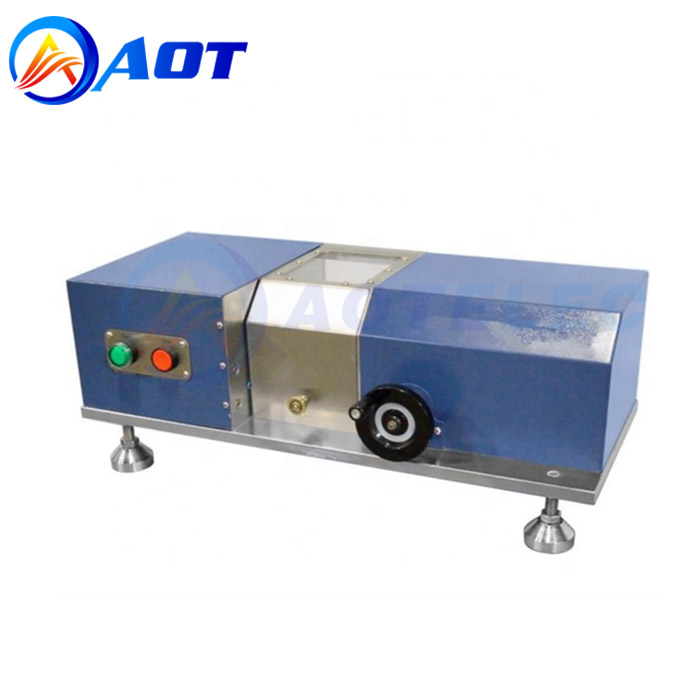

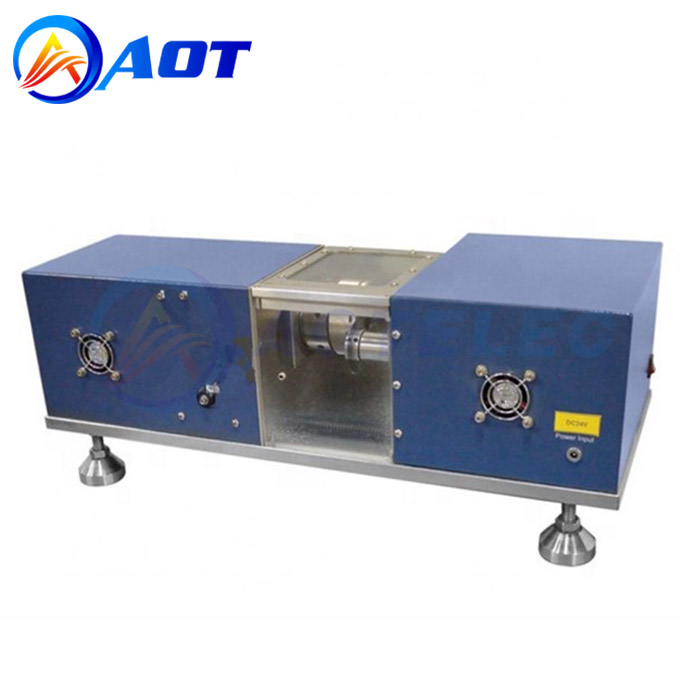

AOT-530 is a manual machine for disassembling cylinder cases in lab research, it’s equipped with different dies to disassemble different cylindrical batteries (18650, 26650,32650).

The compact body design allows easy operation inside a glove box to preserve and prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with safety protection cover

Product Name	Cylindrical Cases Disassembly Machine
Power	100W
Model	AOT-530
Power Supply	AC 220V
Disassembling Die	Standard die for 18650 (26650 ,32650is optional)
Motor Speed	1000rpm
Die Rotating Speed	1000rpm
Blade Material	Tungsten steel
Accuracy	0.05mm

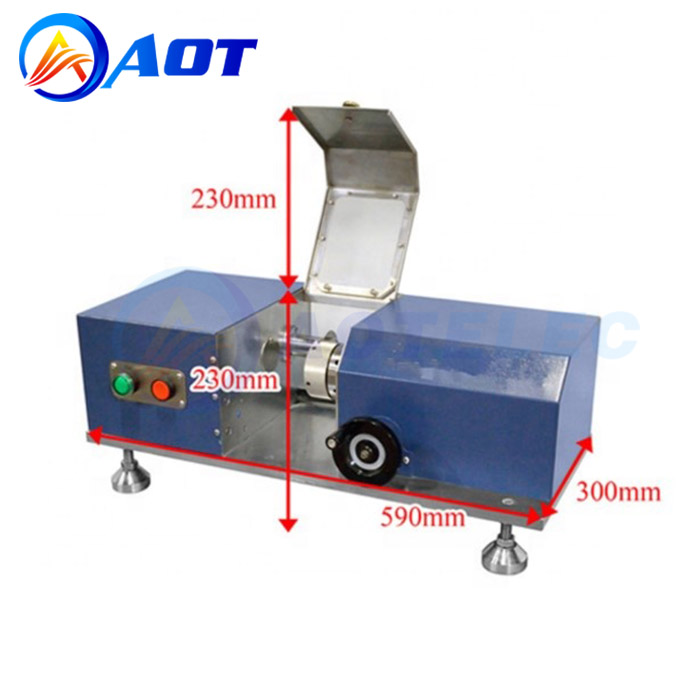

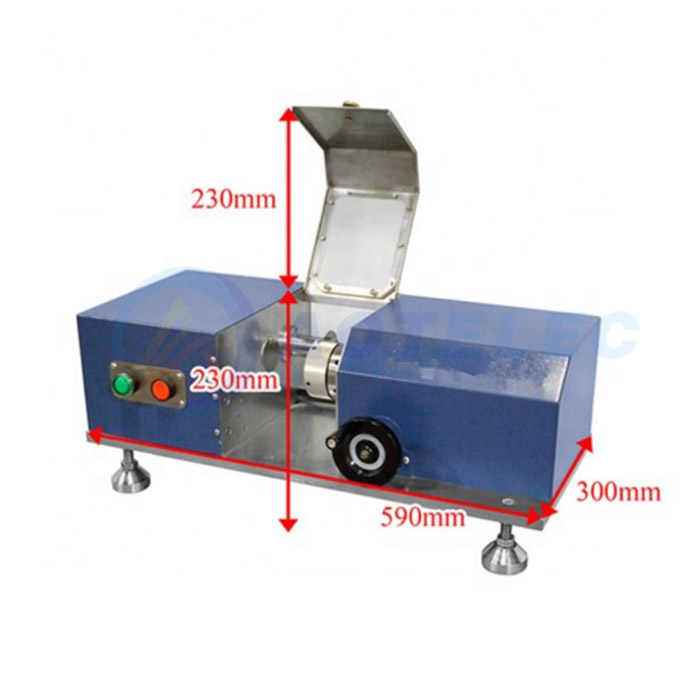

Dimension (LWH)	590300230mm
Weight	35kg
