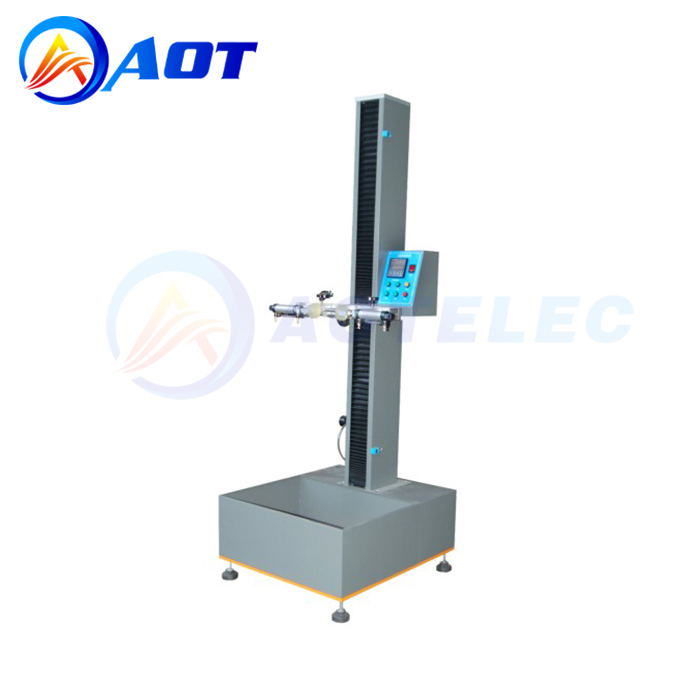

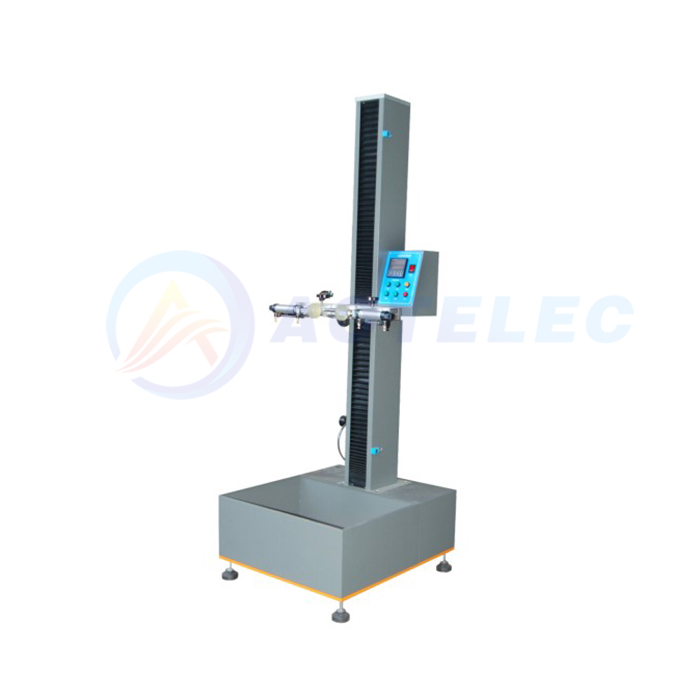

This machine is suitable for the free fall test of small consumer electronic products and components such as mobile phones, walkie-talkies, video intercom phones, CD/MD/MP3, etc.;
Using a pneumatic structure, place the test piece in a special fixture (adjustable stroke), press the drop button, the cylinder is released, the test piece will be subjected to a free fall test, the drop height can be adjusted up and down, and the altimeter records the test product. Drop height, there are a variety of drop floors to choose from.
Specification:
Product Name |
Battery drop impact tester |
Drop height |
400~1500mm (adjustable); |
Control method |
metal button control; |
Lifting method |
automatic lifting; |
. Falling method |
free fall; |
Height accuracy |
±1mm; |
Height display |
LED screen display; |
Clamping method |
pneumatic clamp; |
Material of drop board |
steel plate; |
Air source |
≥0.4MPa; |
Drop surface size |
W560xD410xH10mm |
Dimensions |
W570xD650xH1730mm |
Power source |
220V, 3A |
The weight of the test piece |
2kg±100g |
Weight |
80kg |
