  • Brookfield Digital Rotational Viscosity Meter LVDV-1T

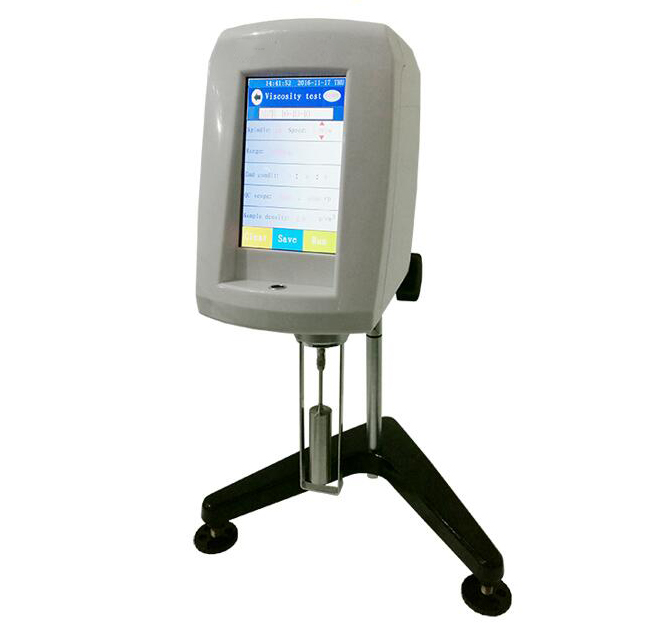

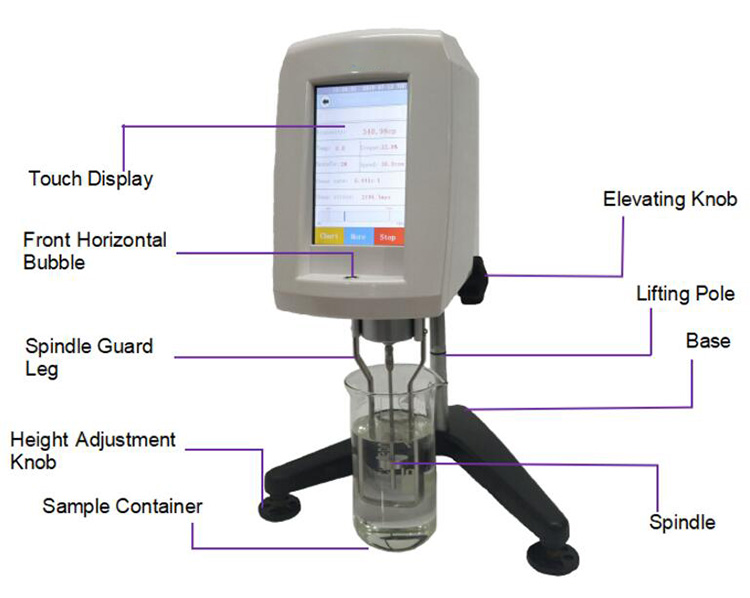

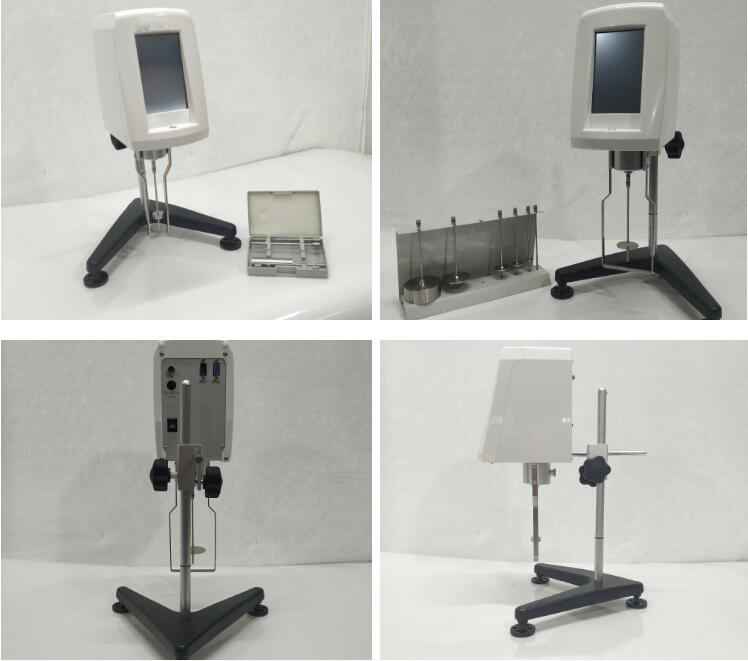

Brookfield Digital Rotational Viscosity Meter LVDV-1T

Brookfield Digital Rotational Viscosity Meter LVDV-1T

  • Model: AOT-LVDV-1T
  • Origin: China
  • Range: 1-2Million mPa.S
  • Rotor: 1-4#
  • Product description: DV-1T series viscometer is intelligent instrument based on ARM technology, to achieve full screen operation, to replace the traditional mode of operation of the traditional buttons plus small size LCD


Compared with similar instruments, this series of instruments has the advantages of convenient operation, intuitive reading, rich content, high measuring accuracy, stable speed, strong anti-interference performance, working voltage 100~240v (50/60Hz) and so on.

In terms of the use of the instrument operation, the instrument has a series of measurements for the full-scale value 100% range overflow function, alarm display, automatic scanning function, the user can rely on these, intuitive, fast, and accurate rotor speed combinations available to choose the right, and can save the test conditions to determine, convenient and use the fast out of the testing process in the production of the day.


This series of equipment widely used in solvent based adhesive, latex, biochemical products, cosmetics, paint, paint, ink, paper pulp, food, starch and other industries.




Control / display mode

5 inch color touch screen

Speed (r/min)



Measuring range(mPa.s)

1 –2,000,000 mPa.S

<10 Optional 0# rotor

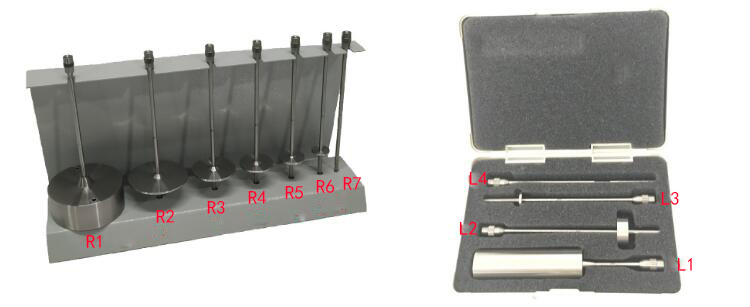

1 - 4#(Standard)


Measurement range

(Newton liquid)


Repetition error (Newton liquid)

±0. 5%

Timing function

standard configuration

Automatic scanning

Automatic scanning and recommendation of the best combination of rotor and speed

Display the maximum measurement range

The range of viscosity can be measured by the combination of the selected rotor and rotational speed.

Auto display kinematic viscosity

Required input sample density

Display shear stress / shear rate


Auto display kinematic viscosity

Required input sample density

Self built measurement procedure

Can save up to 30 groups (including the rotor, speed, temperature, time, etc.)

Save measurement results

Can save up to 30 sets of data (including viscosity, temperature, rotor, speed, time, density, kinematic viscosity, etc.)

Viscosity curve

real-time display

Print output

The data curve can print (standard print interface, to buy a printer)

Data output interface


Constant temperature unit

Options (including all kinds of special thermostat thermostatic cup viscositymeter.)

Working power supply

110V / 60Hz   0r  220V / 50Hz

Outline dimension

300 × 300 × 450(mm)

Package size


Package weight



Using environmental requirements

Ambient temperature: 5 ~ 35

Relative humidity: less than 80%

Power supply: AC100 ~ 240V (50 / 60Hz)

There is no strong electromagnetic interference, no corrosive gas, no violent vibration.
