Revolutionizing Battery Materials Testing: Quick Assembly Split Test Cell for High-Efficiency Electrochemical Characterization

A cutting-edge split test cell has been developed to facilitate high-throughput research and development of battery materials, offering a streamlined approach to cell assembly and testing. This innovative device eliminates the need for a Crimper, allowing for quick and easy coin cell assembly through manual tightening, thereby significantly enhancing research efficiency. Its versatile design enables application in both liquid and solid-state battery systems, making it a valuable tool across various battery technology domains.

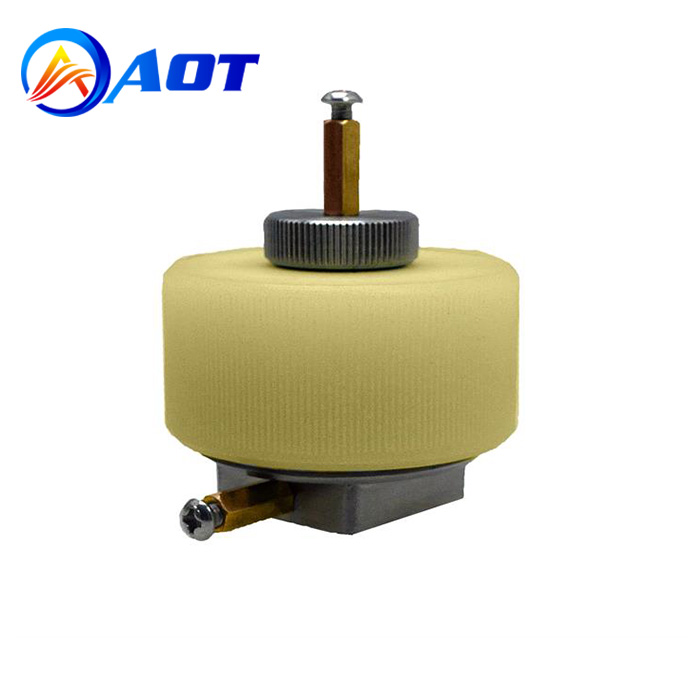

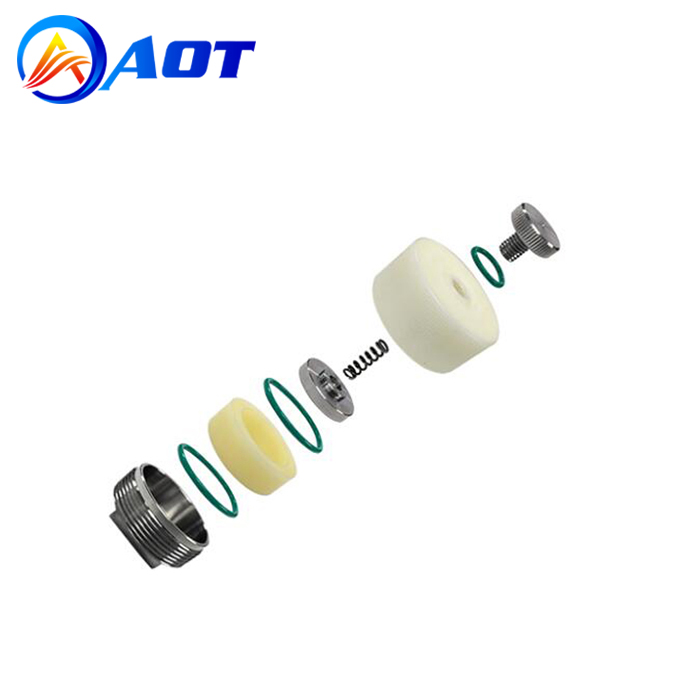

The structural design of this test cell is centered around user-friendliness and functionality. The assembly process is simplified by "thread-in" mechanisms for the bottom contacting plate and top plunger into the Nylon body, ensuring that even those with minimal expertise can swiftly set up the cell. The contact plates and plungers are constructed from stainless steel, providing durability and reliable electrical contact; additionally, copper alternatives are available for those requiring specific material properties, albeit at an extra cost.

Materials selection plays a crucial role in the test cell's performance, particularly in withstanding the harsh chemical environment of battery electrolytes. The sealing gaskets are made from PTFE, and the body from Nylon, both of which exhibit excellent resistance to chemical corrosion, ensuring the integrity of the cell even when in contact with aggressive electrolytes. This robust construction, combined with an air-tight design, guarantees zero electrolyte leakage, a critical factor in maintaining consistent test conditions and accurate results.

Post-testing, the cell can be easily separated and cleaned, a feature that enhances its reusability and reduces downtime between tests. Functionally, it mirrors the capabilities of the "Swagelok Type Cell" but offers greater flexibility in terms of electrode and separator sizes, catering to a wider range of experimental requirements. A spacer within the test cell serves to press down on the electrode, preventing curling and ensuring stable contact throughout the testing process, which is essential for reliable electrochemical measurements.

In terms of practical testing convenience, the cell can be directly clamped onto a battery analyzer without the need for wire connections, enabling rapid initiation of tests. Each electrode comes with an extending rod, adding to the adaptability of the device. The standard electrode diameter is 20mm, with a maximum insertion thickness of up to 6mm, allowing for the testing of various material configurations. The working temperature range is capped at 100 ºC, suitable for a broad spectrum of battery testing scenarios.

For applications requiring enhanced corrosion resistance, an optional anti-corrosive gold coating on the base contact plunger and inserts is available upon request, further expanding the test cell's utility in specialized research contexts. Overall, this split test cell represents a significant advancement in battery material testing technology, combining ease of use, durability, and versatility to meet the demands of high-throughput R&D in the field of battery materials.
