  • Intelligent Karl Fischer Moisture Analyzer for Lithium Battery Electrolyte Moisture Analyzing

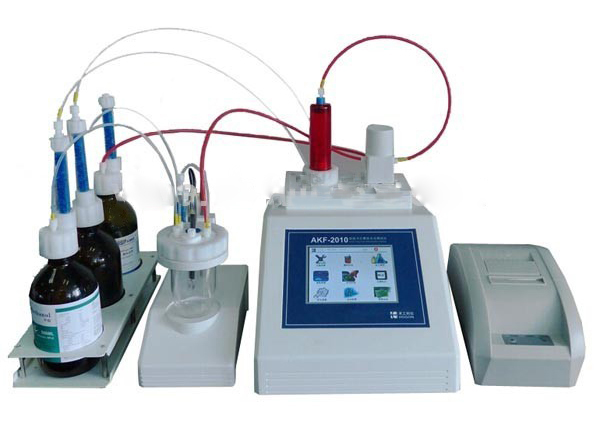

Intelligent Karl Fischer Moisture Analyzer for Lithium Battery Electrolyte Moisture Analyzing

Intelligent Karl Fischer Moisture Analyzer for Lithium Battery Electrolyte Moisture Analyzing

  • Model: AOT-AKF-2010
  • Origin: China
  • Test time: average 3min
  • Result resolution: 1PPM
  • Product description: Karl Fischer titrator is an Intelligent moisture tester adopting volumetry method. it is mainly used for scientific research, produce, and education field, with high accuracy and simple operation. It
  • INQUIRY

High precision intelligent Karl Fischer moisture analyzer for Lithium Battery Electrolyte Moisture Analyzing


1 AOT-AKF-2010 Karl Fischer titrator is an Intelligent moisture tester adopting volumetry method. it is mainly used for scientific research, produce, and education field, with high accuracy and simple operation.

2 It can be used for analyzer water in many industries fields such as Medicine, organic solvents, industrial salt, petrochemical industry, chemical fertilizer, agricultural medicine, dyes, food and beverage, surface active agent, cosmetics and so on.

3 This Karl Fischer used for lithium battery industry mainly used for powder materials and electrolyte moisture analyzer



Model

Volumetry Method Karl Fischer Titrator AOT-AKF-2010

Testing range

0.001-100%

Measuring resolution

1ug

Result resolution

1PPM

Measuring repeatability

99.7%, (10mg)

Max error

±0.3%

Testing time

Average 3min

Date storage

100000, can be expanded

Buret

Optional 20 ml, 10 ml and 5 ml high precision measuring tube component,

attached to the uv radiation shield

Titration control precision

0.5u-0.1ml can be chosen

Electrode connect

Double platinum electrode

Display mode

HDLCD, Chinese or English can be set

Data interface

RS-232C, USB, WEB

Working humidity

≤80%

Working temperature

5-40°C

Source voltage

220V / 50HZ, can work with voltage transformer

Power

50W

Dimension(L*W*H)

400*350*280mm

Weight

5.5kg
