Pouch Cell Line Making Machine for Li ion Battery

  • Product Name;Pouch Cell Line Making Machine
  • Model:AOT-PCB01
  • Compliance: CE Certified
  • Origin:China
  • Product description: AOT offers the full set of pouch cell battery producing equipment from mixing to last testing equipment.
  • INQUIRY

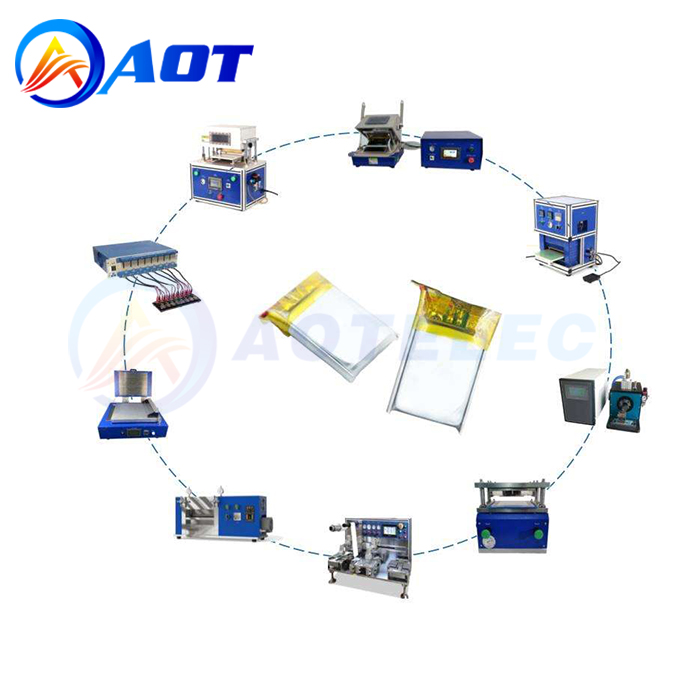

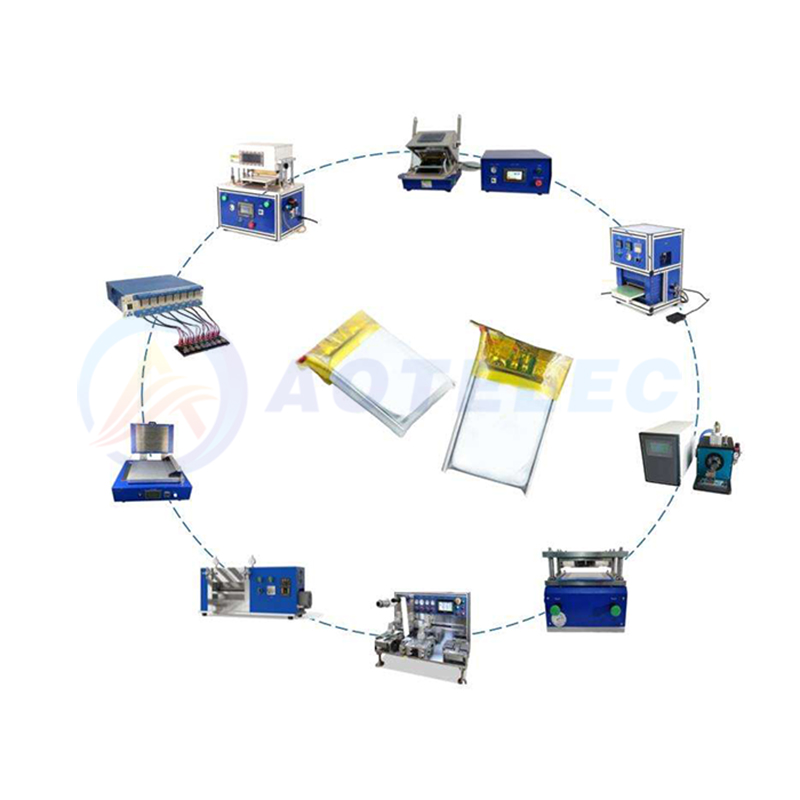

AOT offers the full set of pouch cell battery producing equipment from mixing to last testing equipment.


No.

Model

Name

Explanation

1

AOT-DZF-6050

Vacuum drying oven

For materials, electrode, battery baking, price include vacuum pump, you will need 2 ovens.

2

AOT-FA2004

Electronic
analytical balance
200g/0.1mg

For materials, Aluminum Foil, copper foil
and electrode weighing, at least choose the 0.1mg accurate
model or more high precision model

3

AOT-SMF-6E

Vacuum Mixer

For cathode and anode materials mixing, price include two mixing tanks.

4

AOT-SNB-1A

Digital display viscometer

To control the viscocity of slurry

5

AOT-FT02

Magnetic De-ironing Filtration System

Remove big particles and iron

6

AOT-CCM-300

Cotinuous Coating Machine

Knife coating method. continuous coating process.

7

AOT-HRP-H150-200

Hot rolling press

200mm rolling width, for coated electrode calendering, heat function good for pressing

8

AOT-DC-300

Semi-auto Battery Electrode Die Cutting Machine

Max size: 200mm*300mm (size of die customized), with two set dies for cathode and anode

9

AOT-MST-200

Manual stacking machine

For electrode and separator stacking

10

AOT-USW-2000W

Ultrasonic Spot Welder

Suitable for 10-20 layers of electrode spot welding

11

AOT-YD2681A

Short Circuit Tester

For testing the accidental short between anode and cathode after final sealing.

12

AOT-MPF-200

Semi-auto aluminum pouch forming

Max size: 160*120mm

13

AOT-TSS-200

Hot sealing machine

for pouch cup Top-side sealing, max width 200mm

14

AOT-EIP-10

Single Head Electric Injection Pump

With 10pcs filling drivepipe; manual type optional

15

AOT-SB300

Electrolyte Diffusion Chamber

For removing air from the electrolyte after it's been injected into the polymer li-ion cell or after the formation for final sealing under a vacuumed condition

16

AOT-VPS-200

Vacuum Pre-sealing Machine

Max 200mm sealing width

17

AOT-VFS-200

Vacuum Sealing Machine

For pouch cell secondary sealing, with needle to puncture air bag and remove the air, it is optional for lab

18

AOT-HPS-200

Hot Press Shaping Machine

Hot/Cold Press Machine for pouch cell battery core after stacking and vacuum sealing

19

AOT-VGB-4

Dual work station glove box

With purification system, water and oxygen index less
than 1ppm, single side four gloves operation

20

AOT-BTS-5V6A

battery tester

For battery charging, discharging, capacity, cycle testing, suitable for both cylindrical battery and pouch cell.

21

AOT-R203

Battery Internal
Resistance Tester

Testing battery resistance is a rapid and accurate method to check battery performance, usually the smaller resistance is higher quality

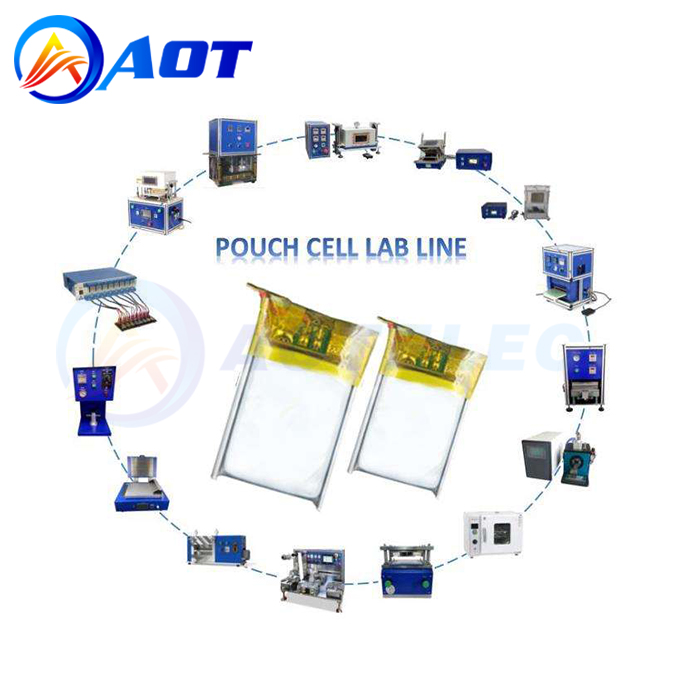

Pouch cell line


Company Profile


Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.


Exhibition


AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.


Certificate


Cooperative


FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).


Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.


Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.


Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
