Precautions For The Use Of Lithium Battery Sorting Machine

The lithium battery sorting machine is a testing and sorting equipment for the internal resistance, voltage and other parameters of cylindrical batteries. This equipment can accurately sort the batteries to the corresponding gear according to the set internal resistance and voltage valuesTo achieve the sorting of good and bad products in different grades, the following points need to be paid attention to when operating the lithium battery sorting machine:

1. When starting up, first check whether the various action actuators of the equipment are in the initial position, confirm that there is no other debris on the equipment, then turn on the gas source, confirm that the gas source pressure is 0.5 ~ 0.6Mpa, and then turn on the power supply to run the control program

2. Turn off the power supply and gas source when the equipment is out of use;

3. When the equipment is repaired, the power supply and gas source should be turned off during maintenance and maintenance;

4. When putting the batteries to be sorted into the feeding box, ensure that the positive and negative directions of all batteries are the same. When the batteries in the receiving box are full, the batteries should be removed in time;

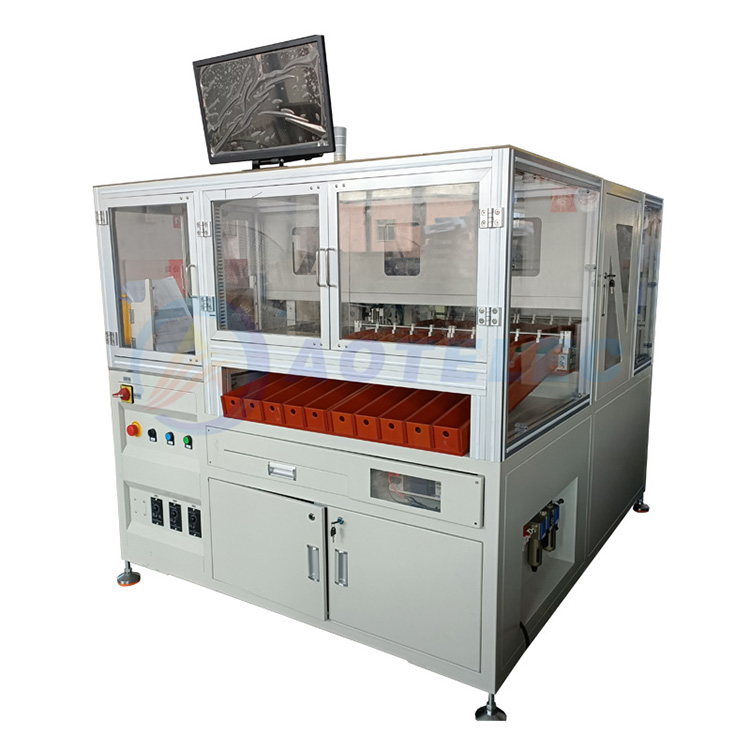

battery sorting machine

5. When the machine is running, do not put your hand into the battery sorting track to avoid pinching your fingers;

6 . When the equipment runs abnormally or stops for no reason, press the emergency stop button first, and then check the equipment for abnormal conditions.After troubleshooting, release the emergency stop button to make the manipulator return to the origin, the system is in a suspended state, and then press the start green button to make the system resume automatic operation,If the system fails to run, you can press the system reset button to restore the normal working state;

7. When the battery sorting of a certain type is completed and there is no material alarm, you can press and hold the green button for 3 seconds to clear the material.Or after waiting for 30 seconds, the system will automatically enter the finishing mode to automatically sort the remaining materials into the trough.

8. Before running the equipment, the battery on the sorting manipulator should be emptied, press the system reset button to make the equipment enter the initial state, and then press the run button;

9. It is necessary to ensure that the positive and negative electrodes of the battery to be sorted are clean, and at the same time, it is necessary to avoid dust and other debris contaminating the detection probe to ensure the accuracy of the measurement data;

10. In order to ensure the measurement accuracy, it is recommended to clean the probe with alcohol every 4 hours under normal production conditions, and replace the probe every month;

11. In order to ensure the high-precision measurement of the tester, please reset and calibrate the tester regularly.

The above precautions for the lithium battery sorting machine are introduced by the technical team of AOT.
