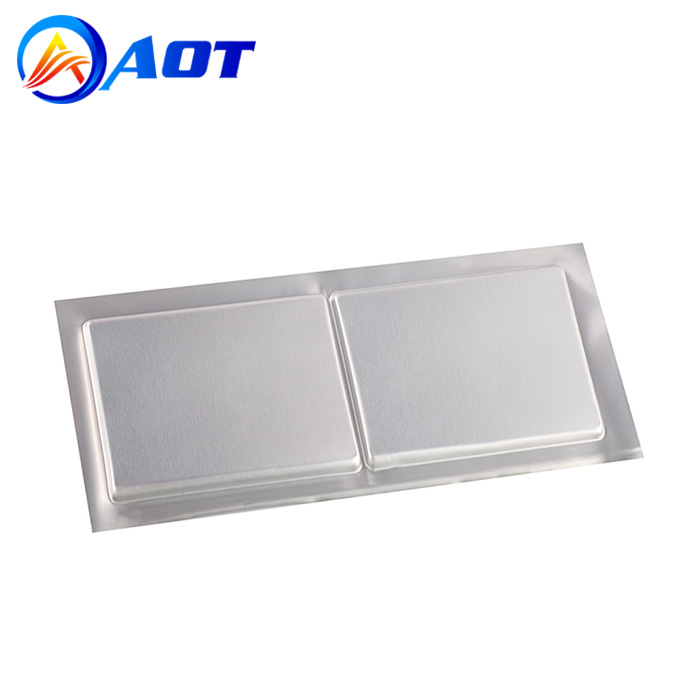

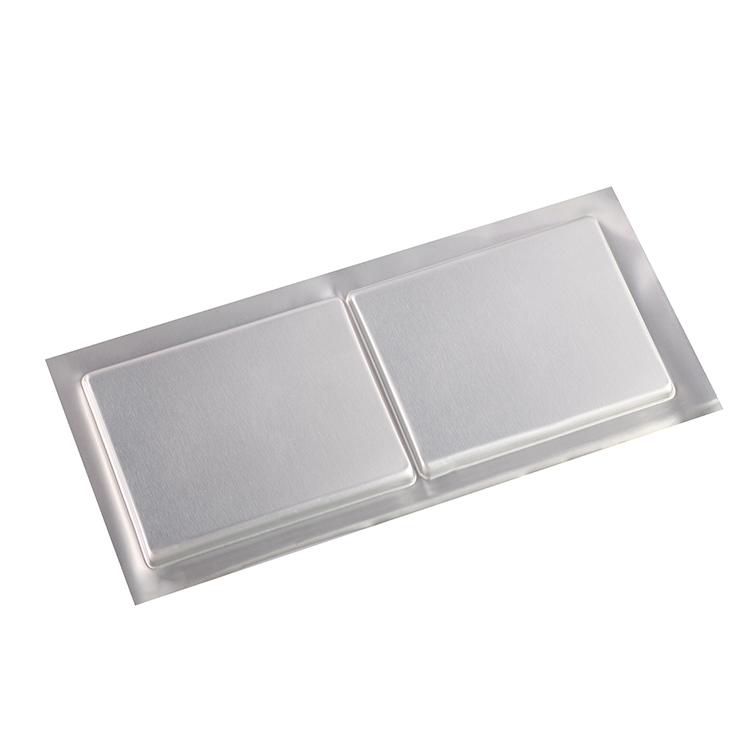

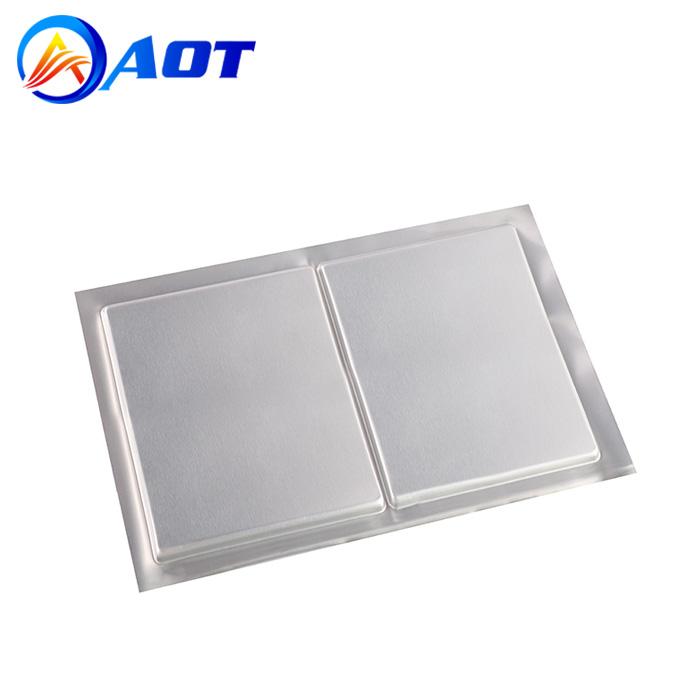

Ready Made Aluminum Laminated Film for Lithium ion Battery Pouch Cell Case

Model: Pouch Cell Case
Material: Aluminum Laminated Film
Thickness: 113um/88um/152um
Size: Customized
Product description: Lithium ion Battery Pouch Case Made by Aluminum Laminated Film
INQUIRY

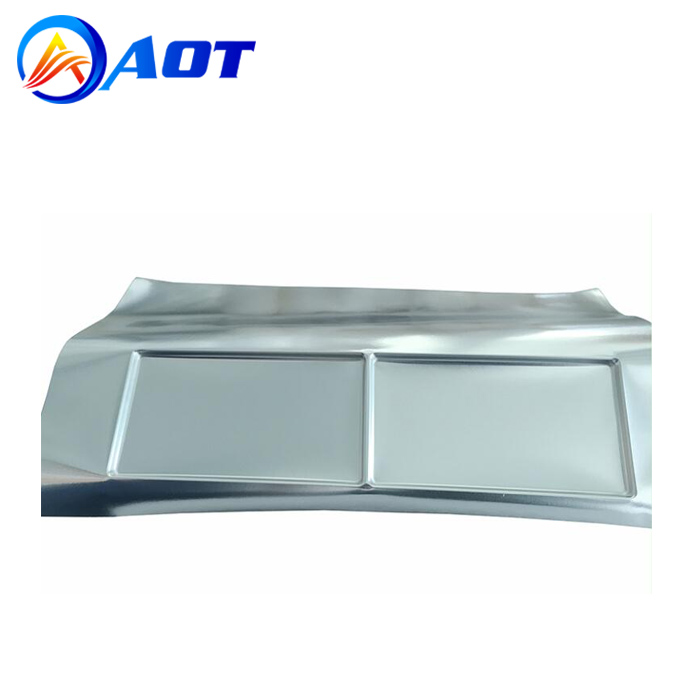

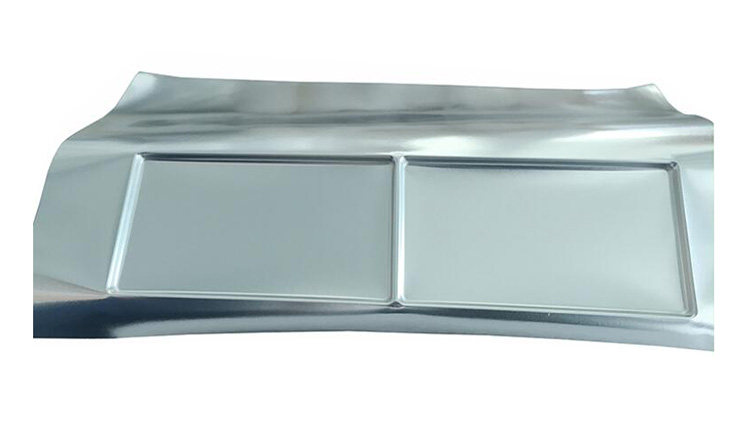

Aluminum laminated film 113micron thickness lithium ion pouch battery packing case/cup

1. The sizes can be customized according to the requirement.

2. There is three kind of thickness for your choice: 88um, 113um, 153um. The 113um is most popular.

Aluminum Laminated Film Specification

Consist			D-EL40H
			ON25
			DL4
			AL40
			Improved PPa15
			Improved PP30
			Acid modified resin combination, waterproof and acid attacks (Thickness 113µm)
Thickness	µm	Designed	113
Steam Barrier Property 60°C90%RH 336H	PPm	Sealing Pressure 1.0MPa	50↓
Initial strength of laminated layers(AL/PPa)	N/15mm		11~12
Initial sealing strength	N/15mm	Sealing Pressure 0.5MPa	70~80
190°C 3seconds	N/15mm	Sealing Pressure 1.0MPa	85↑
The electrolyte resistance(Test for sealing into film strength)	N/15mm		4.0↑
60°C 14days	N/15mm		4.0↑
Electrolyte resistance(Test for sealing into film strength)	N/15mm	Sealing Pressure 0.5MPa	40~50
60°C 14days	N/15mm	Sealing Pressure 1.0MPa	50~60
Sealing strength for electrolyte	N/15mm	Sealing face pressure 0.5MPa	80~90
190°C 3seconds	N/15mm	Sealing face pressure 1.0MPa	80~90
Punch forming depth	mm	Control drape pressure 0.17MPa(Size:80*120mm)	5.0↑
