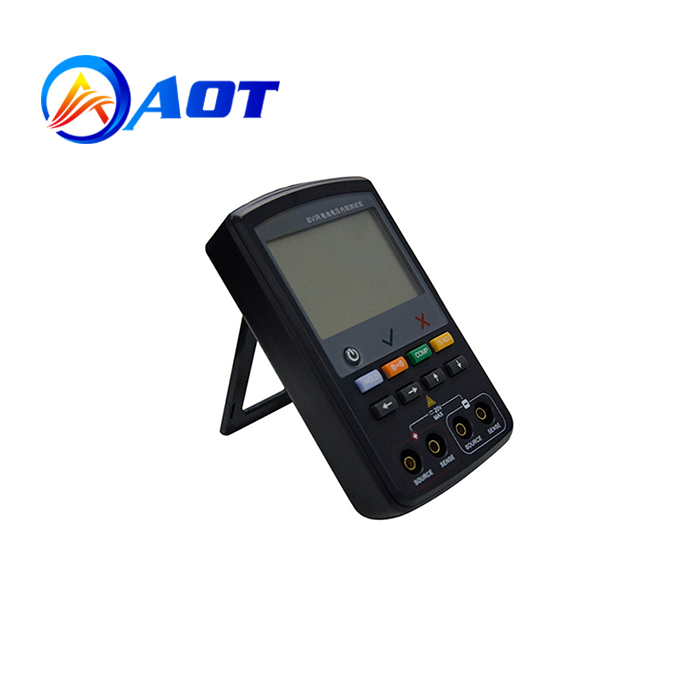

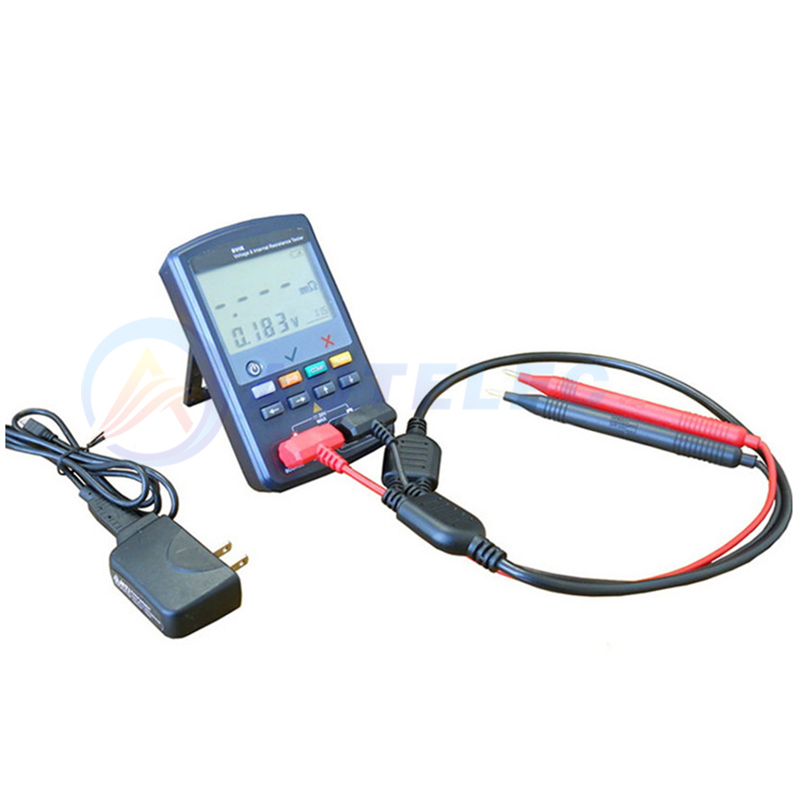

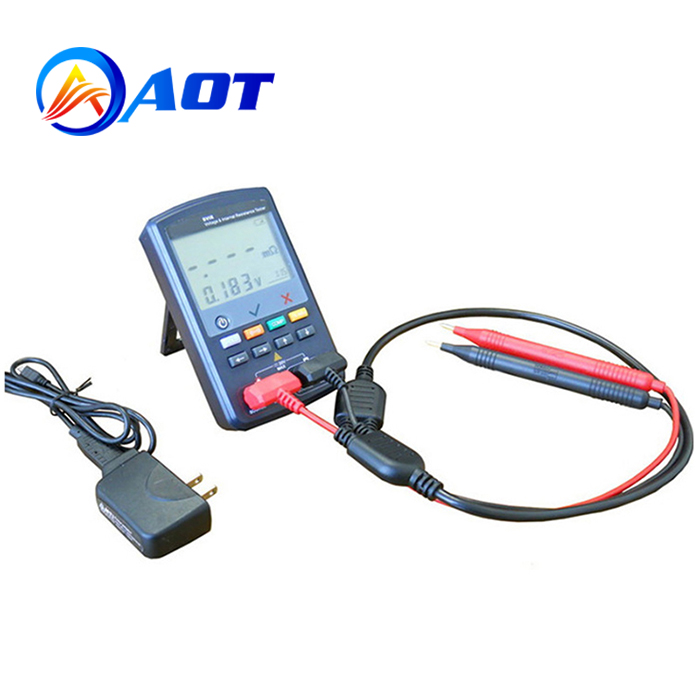

20V Battery Voltage Internal Resistance Impedance Tester

Model Number: AOT-BVIR
Measuring Range: 0~20V
Related industry: Rechargeable battery
Measuring Method: AC 4 terminals
Product description: AOT-BVIR Battery internal resistance tester can be used for measuring the Internal Resistance and Open Circuit.
INQUIRY

AOT-BVIR Battery internal resistance tester can be used for measuring the Internal Resistance and Open Circuit.

Voltage of almost all of the commercial batteries such as Secondary battery, Lead acid battery, Nickle cadmium, Nickle-metal Hydride and Li-ion battery.

Model	Battery Internal Resistance Tester AOT-BVIR
Measuring Method	AC 4 terminals
Voltage	Voltage Measurement	0～20V
	Precision	0.1%
Resistance	Resistance Measurement	20mΩ\200mΩ\2000mΩ Auto/Manual Switch
	Precision	0～200mΩ	1%
		201mΩ～2000mΩ	3%
A/D	12 Digits SAR Comparing
Testing	Sampling Frequency	1KHz
	Sampling Rate	1000 times/S
	Current	< AC 20mA
Response	Refresh 5 times/S
Comparator	On/Off (Manual)
Number of Comparator	10Sets
Data Storage	100,000 Entries
Calibration	A 100 mOhm Resistor in Standard Package for Calibration
Dimension	WDH: 1207525(mm)
Weight	200g
Suggested Environment	10℃~ 40℃ in temperature and 30% ~ 80% RH in Humidity
