Compact Filtration System (750mL) for Battery Electrode Slurry

Brand Name:AOT-MSK-FT01
Material: SS304
Capacity: 750mL
Air Generator Dimensions: 150mm x 150mm x 200mm
Product description: AOT-MSK-FT01 slurry filtration system is designed for use with the preparation of battery electrode slurries. It comes with two filters for removing particle sizes with dia. >120 or >100 micrometer. A
INQUIRY

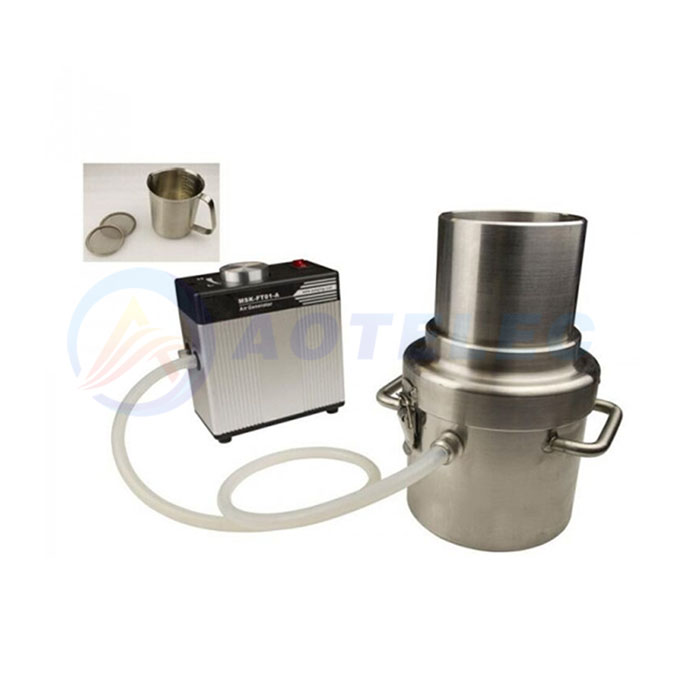

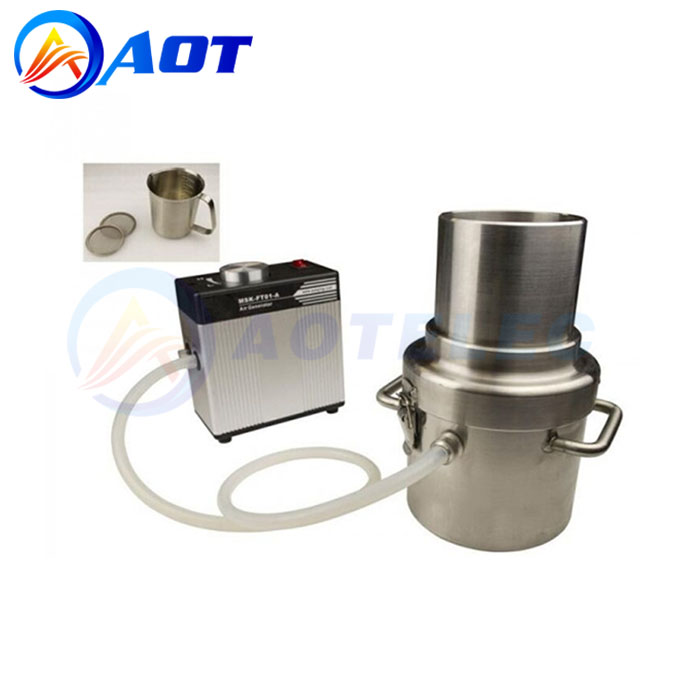

AOT-MSK-FT01 slurry filtration system is designed for use with the preparation of battery electrode slurries. It comes with two filters for removing particle sizes with dia. >120 or >100 micrometer. A SS304 slurry container together with a compact design allows for ease of operation and maximum flexibility in laboratory settings.

Power Requirements	· Input: 100 - 240V AC; 50/60 Hz · Output: DC12V, 0.4A · Power plug configured for US electrical sockets (CE Certified) is included; plugs for other countries can be found
Structure	Made of SS304
Pump Flow Rate	3L/min
Absolute Vacuum Level	65kPa
Capacity	750mL
Filtration	· 2 Filters included · Filtration Pore Sizes: 100 mesh & 120 mesh
Measuring Cup	· One stainless steel cup is included for measuring slurry up to 700ml or 24oz · Scribe lines on the inside facilitate the measurement
Filter Container Dimensions	140mm x 70mm x150mm

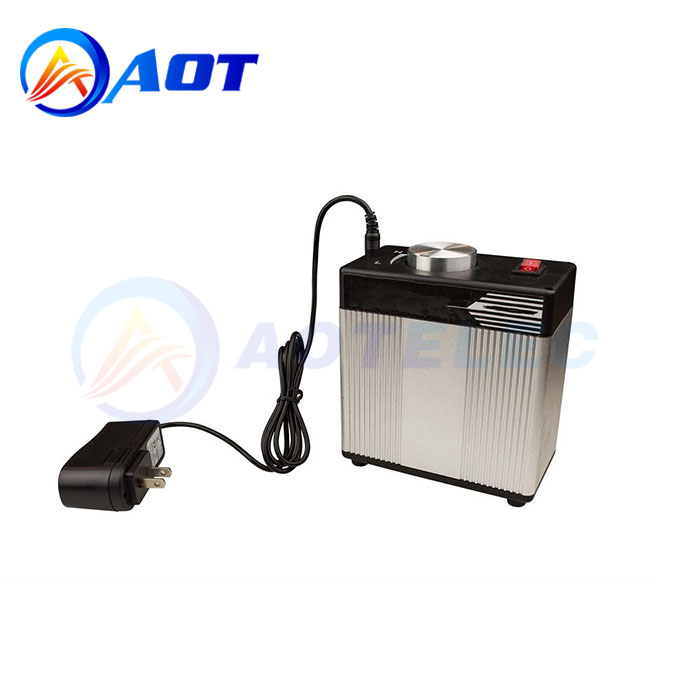

Air Generator Dimensions	150mm x 150mm x 200mm
Net Weight	5kg
Warranty	One year limited with lifetime support
