Voltage and Power

· AC 110V/220V switchable for worldwide usage

· 110VDC Motor

· 8Amp fuse installed

Speed Range

Variable 0-600 rpm with LED digital display

Cutting Width & Depth

· The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the LCD digital micrometer. The LCD micrometer is waterproof with a resolution of 0.001 mm and accuracy of +/-0.003 mm.

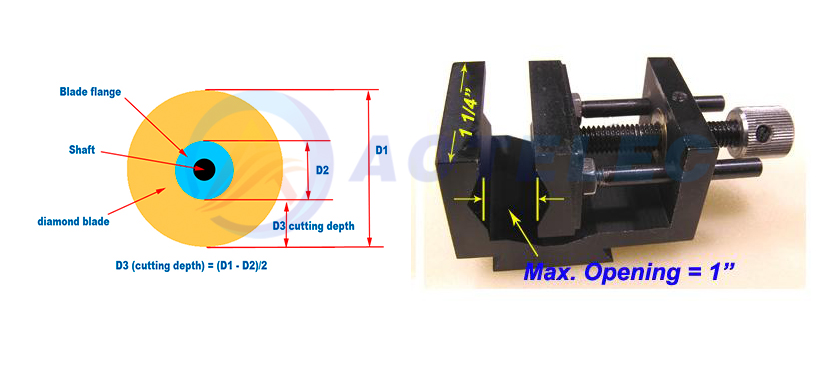

· 32.5mm max. cutting depth (when using 35mm Dia. blade flange) Please click the pic below to know the cutting depth

Diamond Blades

· Three blades are included for cutting various materials

· SiC blade: 4" x 0.35 mm x 0.5" Arbor for cutting nonferrous metal materials, such as superalloys.

· Al2O3 blade: 4" x 0.35 mm x 0.5" Arbor for cutting ferrous metal materials, such as iron and steel.

· Full sintered diamond blade: 4" x 0.35 mm x 0.5" arbor for cutting crystal, ceramic, and plastic materials

Sample Holder & Mini-vise

· Two angles adjustable sample holder is included, please click picture below for the details (max. opening 26mm)

· One Mini-vise is included, which can be easily adapted onto the sample holder to clamp rod shape specimens with a diameter up to 1'' max.

Package Dimensions

19"(L) x 15"(W) x 15"(H)

Balancing Weights

Front : 0.75 lbs
Back : 0.55 lbs

Shipping Weight & Dimension

32 lbs, 18" x 14" x 14"

Warranty

Two years limited with lifetime support (not including rusted parts due to inadequate storage conditions)

Certification

· CE Certified.
