Gold-Coated SS304 CR2032 button Cell CasesWith Spacer And Spring

  • Brand Name: AOT
  • Name: Coin cell cases
  • Shape: Button, COIN CELL
  • Material: SS304, gold plated.
  • Product description: One pair of CR2032 button cells case, made of 304 stainless steel with sealing O-ring. 300-500A thick Gold coating inside case by plasma sputtering coater
  • INQUIRY

One pair of CR2032 button cells case, made of 304 stainless steel with sealing O-ring. 300-500A thick Gold coating inside case by plasma sputtering coater

Material: SS304, gold plated.

Aluminum, Platinum, Silver coating on coin cell case inside are available upon request

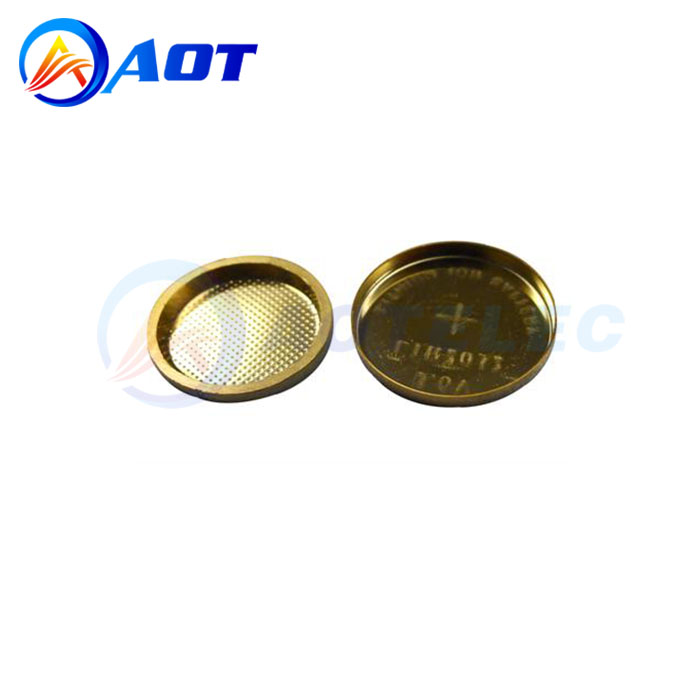

Coin cell cases:

Dimensions (Dia x Height)

20 mm x 3.2 mm

Material

Stainless Steel 304 Case

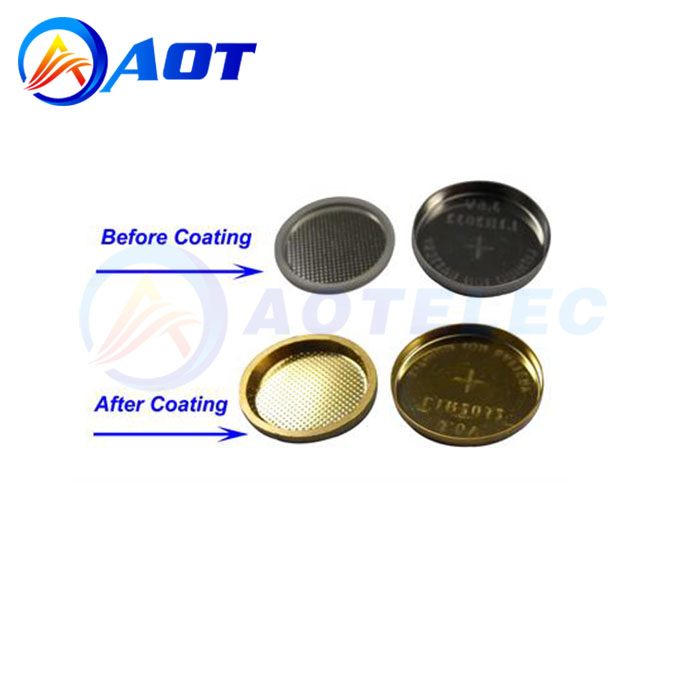

Inner sides are gold coated to improve anti-corrosive resistance

Polypropylene Sealing Gasket

Weight

0.12Oz

Optional ( Gold coated Spring & Spacer )

Coin Cell Spacer

Dimensions (Dia x Height)

15.5mm Diam x 0.5 mmThickness optional

Weight

0.1 Oz

Coin Cell Spring

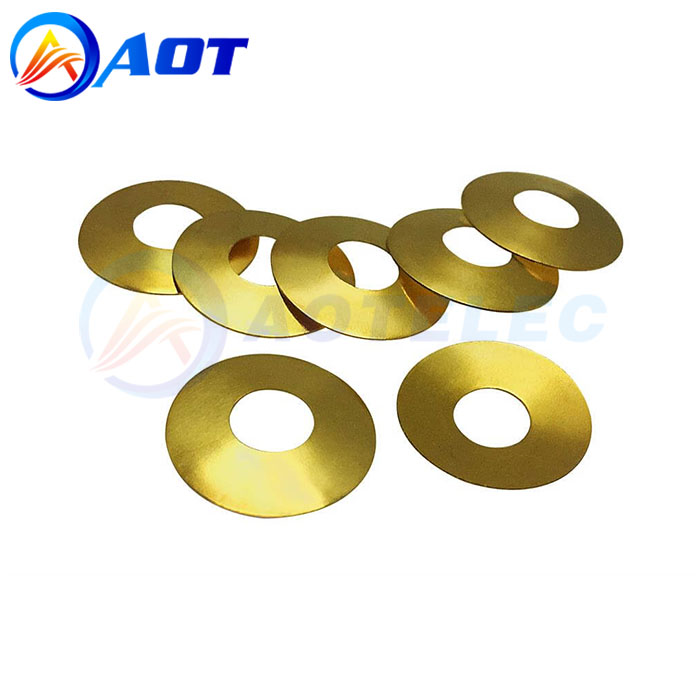

Dimensions (Belleville Washers)

14.5 mm O.D x 10.25 mm I.D x (1.2±0.05) mm Height

(from Crest to Trough) x 0.3mm Thickness

Dimensions (Conical Spring)

15.4 mm dia x (1.2±0.03) mm height x 0.2mm thickness

Weight

0.1 Oz

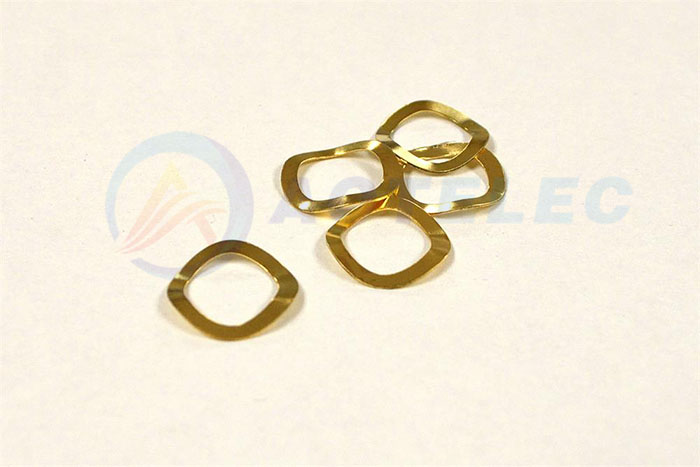

Cell CasesWith Spring

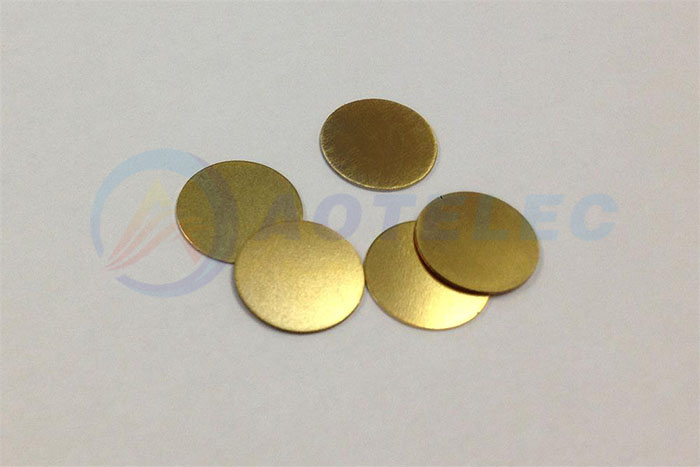

Cell CasesWith Spacer
