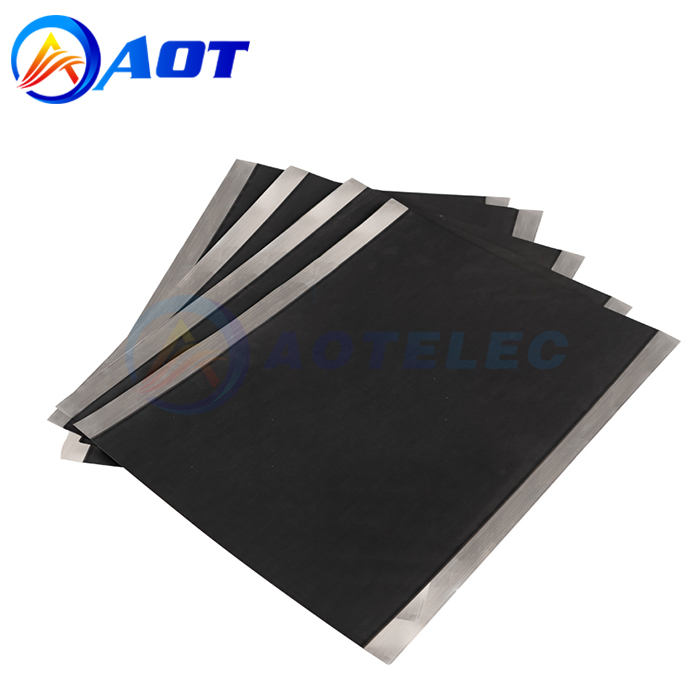

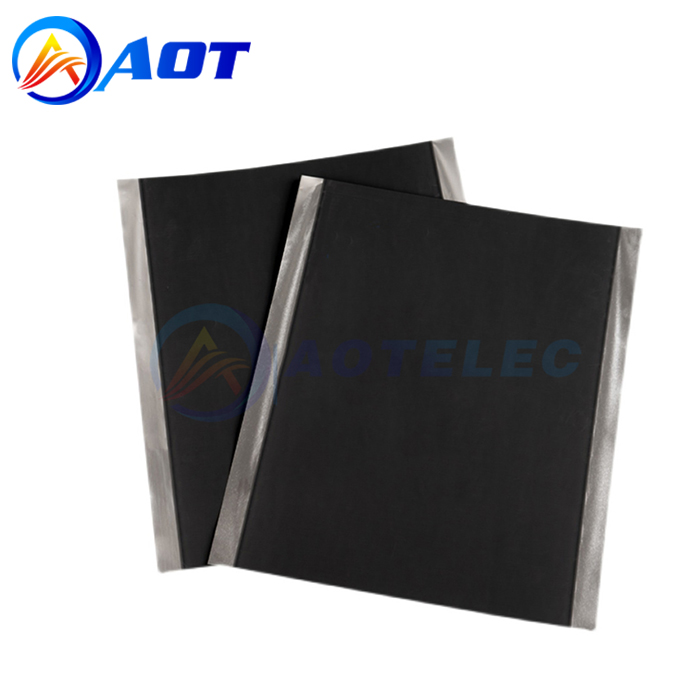

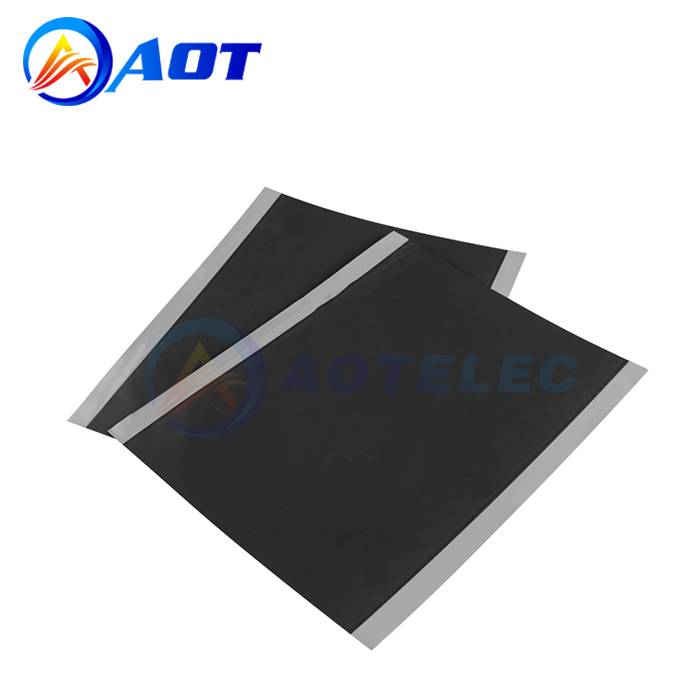

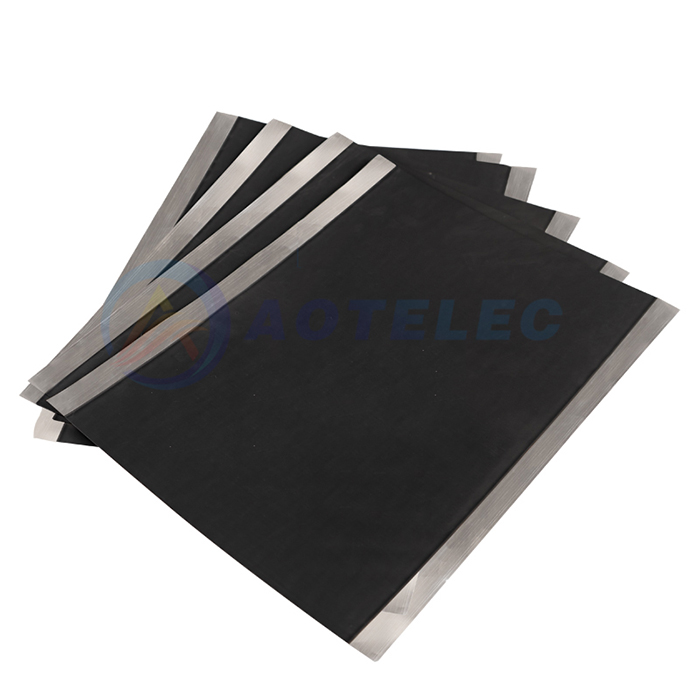

Hard Carbon Coated Al Foil Electrode Sheet For Na-ion Battery

Hard Carbon Coated Al Foil Electrode Sheet For Na-ion Battery

Product Name: Hard Carbon Coated Al Foil
Coating density:8 mg / cm^2
Coating thickness：110 um
Product Orgin:China
Product description: Hard Carbon Coated Al Foil Electrode Sheet For Na-ion Battery
INQUIRY

This electrode sheet is based on Aluminum Foil coated with hard carbon ,used as a cathode electrode of a Na-Ion battery/sodium battery.

This electrode sheet is based on aluminum foil coated with hard carbon ,used as a cathode electrode of a Na-Ion battery.

eference for the use of electrode sheet

1. Electrode cutting: Punching machine, coin cell electrode recommended size: diameter 12mm/14mm

2. Weighing: Balance, active substance calculation formula: active substance mass=

(Mass of electrode (mg) - Circular area (cm2) * Density of current collector surface (mg/cm2) * Proportion of active substance

3. Electrode sheet baking: DZF-6050 (53L) vacuum drying oven

Temperature: 60-80 ℃ Time: 2-4 hours

4. Electrode sheet assembly: single station glove box, small hydraulic button battery sealing machine

Recommended battery assembly sequence: negative case - sodium chips- electrolyte - separator - electrolyte - electrode sheet - gasket / spacer- spring - positive case

5. Battery testing: 5V10mA 8 channel battery tester

Calculate the mass of the active substance, input the corresponding current magnitude, and voltage range.

Current calculation: 0.1C=1C (active substance mass mg × 0.001 × nominal specific capacity mAh/g) × 0.1

Specification

Item	Parameter

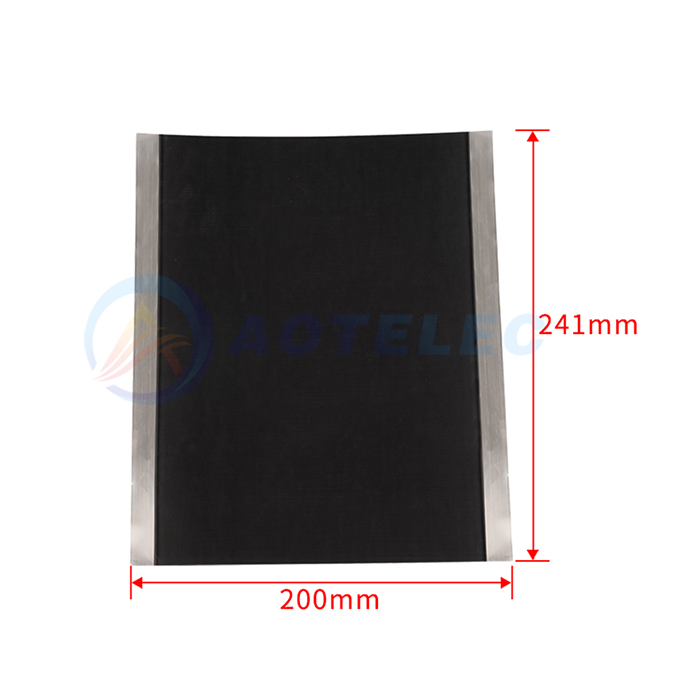

Size	241mm L x200mm W
Coating side	241mm L x 175mm W（each side blank 12.5mm）
Coating area	Single side coating
Total thickness	80-100 μm
Foil thickness	16μm
Coating surface density	6.3±0.2mg/cm2
Foil surface density	4.22mg/cm2
Proportion of active substance mass	92%
Tap density	0.9g/cm3
Test voltage range	0.005V-2.0V
Reference for specific capacity	280±30mAh/g
Matters need attention	The proportion of electrode active substances is based on the physical label, and the calculation formula for electrode active substances is provided below. After opening the electrode sheet, be sure to seal it and store it in a glove box or a 60 ℃ oven.
