LGPS Lithium Germanium Phosphorus Sulfur Sulfide Solid Electrolyte

Product Name: LGPS
Chemical Reaction: Li10GeP2S12
Colour：White
Product Orgin:China
Product description: Sulfide solid electrolytes are currently the inorganic solid electrolyte materials with the highest ionic conductivity.
INQUIRY

LGPS Sulfide solid electrolytes are currently the inorganic solid electrolyte materials with the highest ionic conductivity, which have advantages such as good thermal stability, wide electrochemical window, and good mechanical properties. They are the key electrolytic materials used in all solid-state batteries.

Product Name	LGPS Sulfide solid electrolyte powder
Chemical Formula	Li10GeP2S12
Theoretical density	2.036 g/cm3
Colour	Grey white powder, uniform, without foreign objects
Appearance status(cold pressed forming)	Grey
Appearance status(heat treated to ceramic）	Dark grey
SEM	0.5μm ~ 5μm

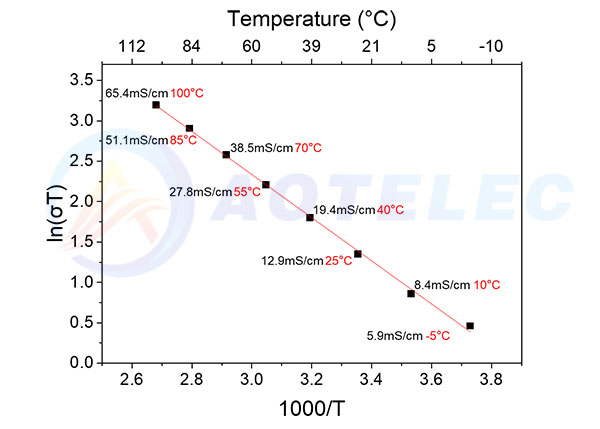

Ionic conductivity (cold pressing+heat treatment)	12 mS/cm，（27°C、180MPa）
Electronic conductivity(cold pressing+heat treatment)	＜2×10-8S/cm，(27°C、180MPa）
