  • LiCoO2 Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells
  • LiCoO2 Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells
LiCoO2 Single Side Coated Cathode Electrode Disk for CR20XX Coin CellsLiCoO2 Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells

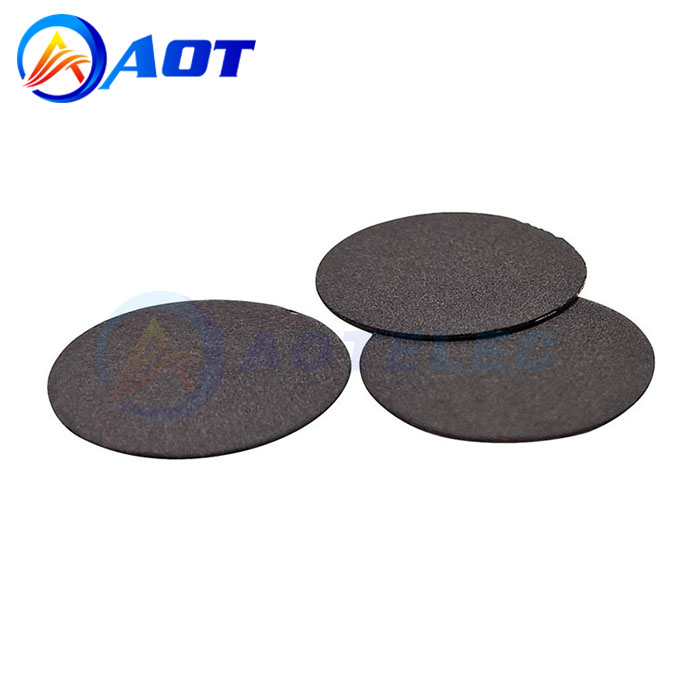

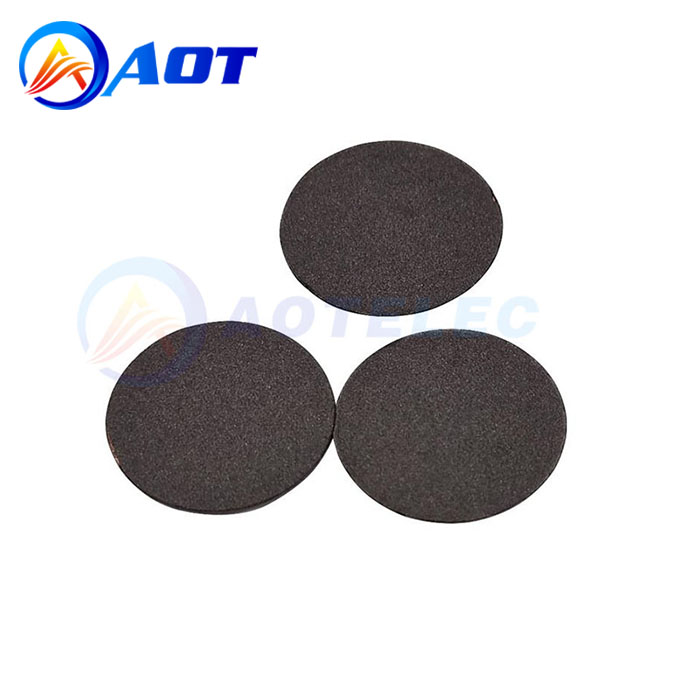

LiCoO2 Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells

  • Material:LiCoO2 Coated on Aluminum Foil
  • Diameter:15mm
  • Thickness:58um
  • Coating:Single side coating
  • Product description: AOT-bcaf-co15 is a pre-cut LiCoO2 coated cathode electrode for CR20XX coin cell battery R&D and split testing cells.
  • INQUIRY



AOT-bcaf-co15 is a pre-cut LiCoO2 coated cathode electrode for CR20XX coin cell battery R&D and split testing cells.


SPECIFICATIONS:


Material

LiCoO2 Coated on Aluminum Foil

Diameter

15mm

Thickness

58um

Coating

Single side coating

Aluminum foil

Thickness 16 um

Coating layer density

13.56 +/- 0.20 mg / cm^2

Surface density

4.15 mg / cm^2

Active materials Mass Proportion

96%

Capacity

158 mAh / g

Operation

The package must be open inside a glove box with Argon Gas and moisture less than 2%RH.

LiCoO2 Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells
