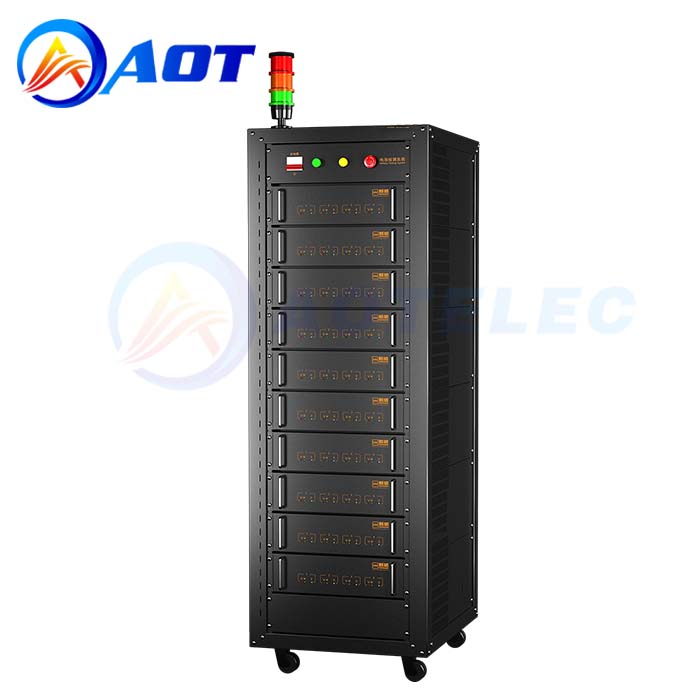

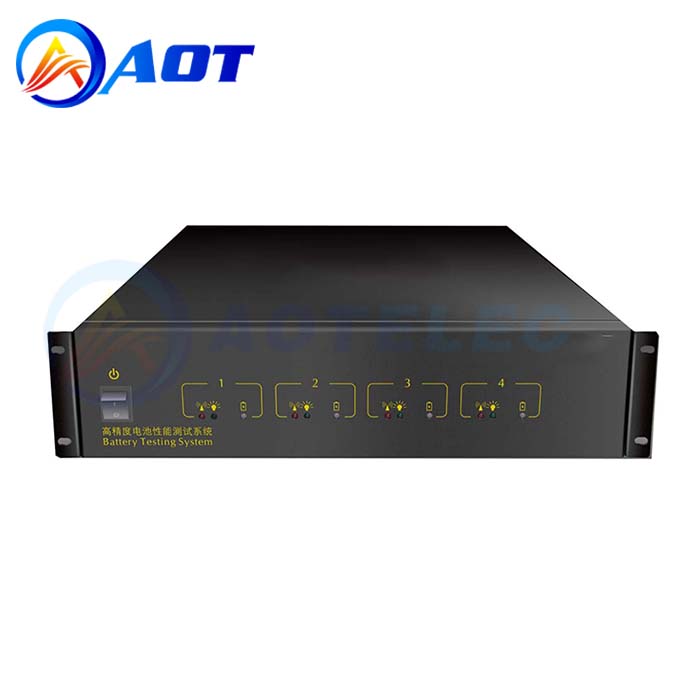

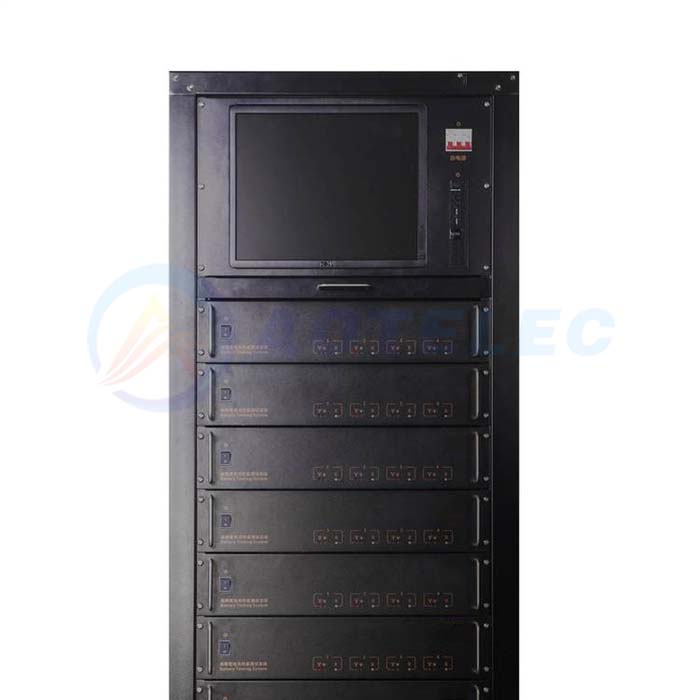

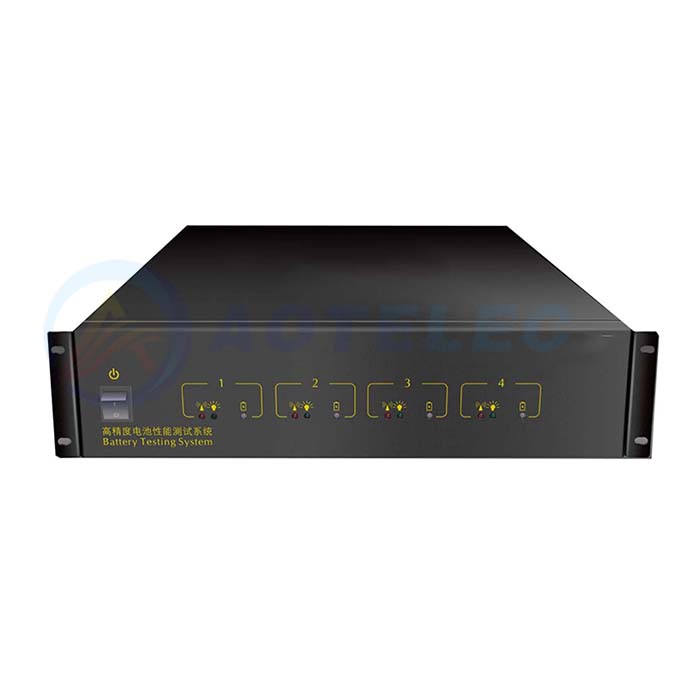

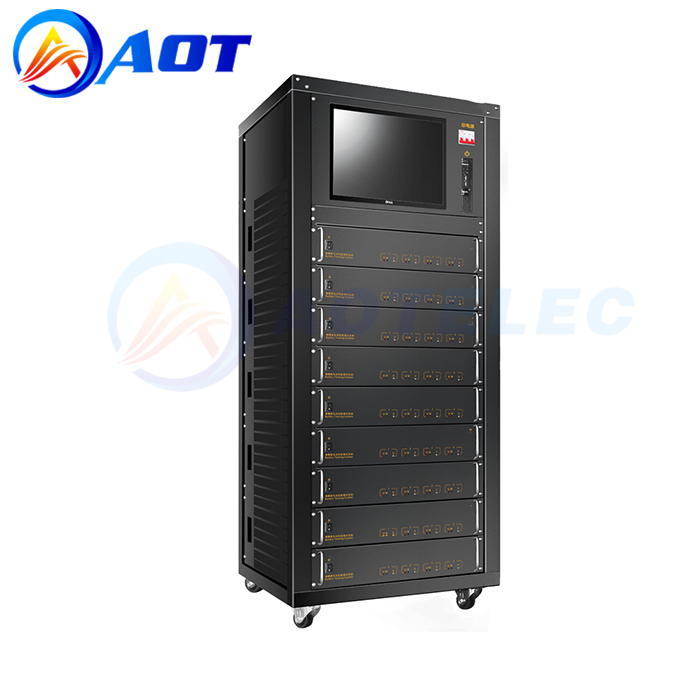

High-performance Lithium-ion Battery Tester System

High-performance Lithium-ion Battery Tester System

Product Name:Lithium-ion Battery Tester
Model: AOT-CT9008-5V5A
Input Power:250W
Origin:China
Product description: Mainly used for battery material research, high-precision test, pulse charge-discharge test, direct current internal resistance (DCIR) test, cycle life (Cycle Life) test.
INQUIRY

Mainly used for battery material research, high-precision test, pulse charge-discharge test, direct current internal resistance (DCIR) test, cycle life (Cycle Life) test.

The specific application of multi-range technology can solve practical problems in many projects. Compared with traditional single-range equipment, it has obvious advantages: improving the accuracy of different current ranges; improving the hardware response time of different current ranges.

Independent constant voltage source and constant current source for each channe.

Specifications：

Product Name		Lithium Ion Battery Testing Equipment
AC Input Power		220/110V±10%/50Hz/60Hz
Resolution		AD:16bit;DA:16bit
Impedance Input		≥500MΩ
Input Power		250W
Channel Features		Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode		Independent Control
Voltage	Per Channel Voltage Range	0.7V~5V
	Lowest discharge voltage	0.7V
	Accuracy	± 0.02% of FS
	Stability	±0.005% of FS
Current	Multi Range	Rang1: 0.1uA---150uA ± 30nA
		Rang2: 150uA---5mA ± 1uA
		Rang3: 5mA---150mA ± 30uA
		Rang4: 150mA---5A ± 1mA
	Accuracy	± 0.02% of FS
	Stability	±0.005% of FS
Power	Per Channel Max. Output Power	25W
Power	Stability	± 0.01% of FS
Time	Current Rise Time	The Current gets to (10%-90%) Hardware Rise Time is 100μs
Time	Step Time Range	Single Step Time Rang>=10ms
Data Recording	Record Condition	Lower sampling time: >=1ms
		Lower sampling Voltage:>= 1mV
		Lower sampling Current: :>= 100nA
	Record Frequency	1000Hz
Charge	Charge Mode	Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge,Constant Power Charge
Charge	End Conditon	Voltage,Current,Relative Time,Capacity
Discharge	Discharge Mode	Constant Current Discharge,Constant power Discharge, Constant resistance discharge,
Discharge	End Condition	Current,Voltage,Relative Time,Capacity,
Pulse Model	Charge	Constant Current Model;Constant Power Model
	Discharge	Constant Current Model;Constant Power Model
	Min Pulse Width	400μs
	Pulse Number	Single Pulse Step Support 16 different Pulse
	Charge r To Discharge	One Pulse Step Can Support Continuous Charge And Discharge Change
	End Condition	Voltage,Relative Time,
DCR Testing	Support Custom Access Point And Count The DCR
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	Nested loop Function,Max Support 3 Layers
Protective Function	Software Protection	Power-down Data Protection
		• Off-line Testing Function
		Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time
	Hardware Protection	Additional Anti-reverse Protection Model
Voltage and Current Testing Sample		4-wire connecting
Noise Density		<85dB
Data Management		MYSQL
Communication Means		TCP/IP Protocol
Data Output		EXCEL,TXT
Communication Interface		Ethernet Port
No. Of Channels Per Unit		4 Channels
