Lithium sulfur battery carbon sulfur composite positive double-sided electrode plate

Lithium sulfur battery carbon sulfur composite positive double-sided electrode plate

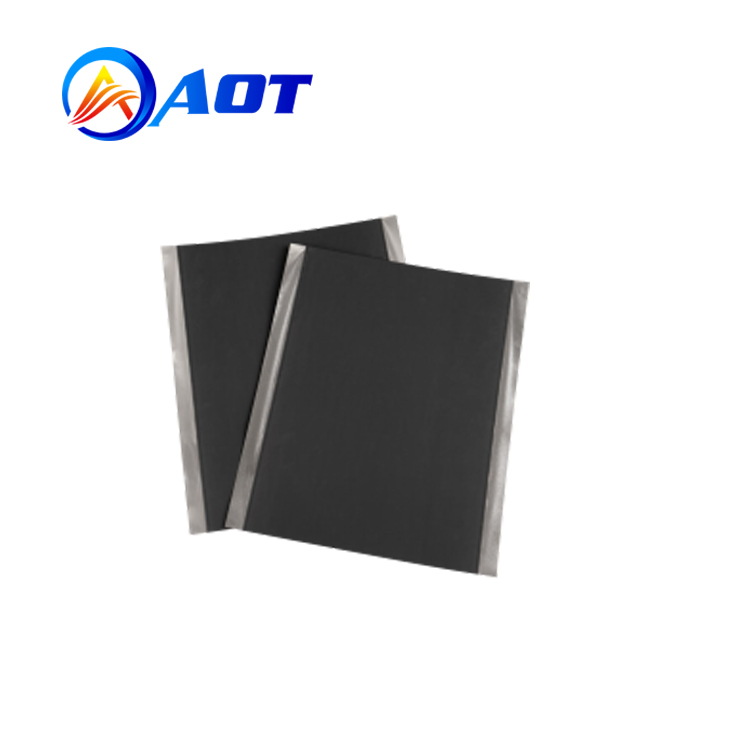

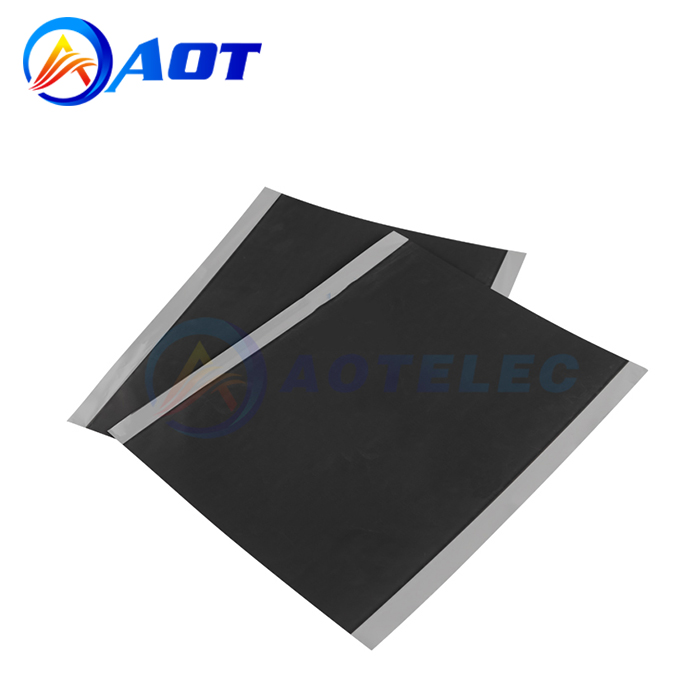

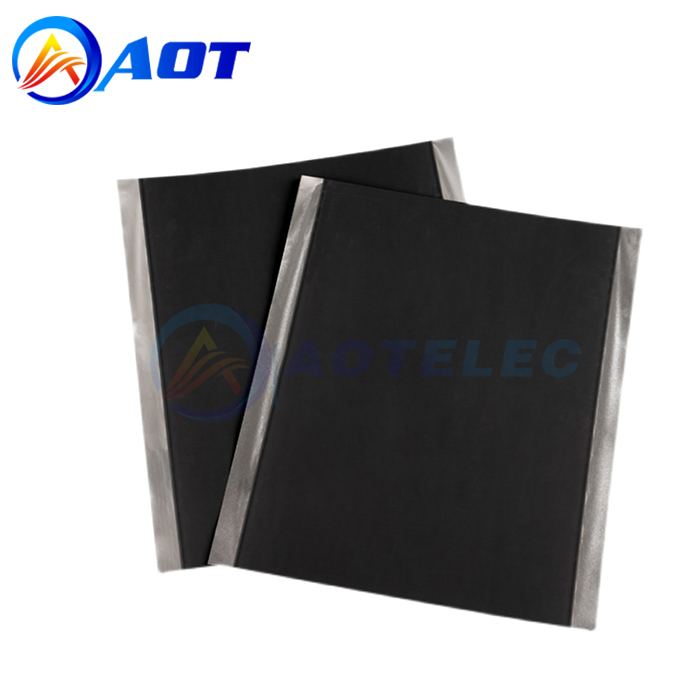

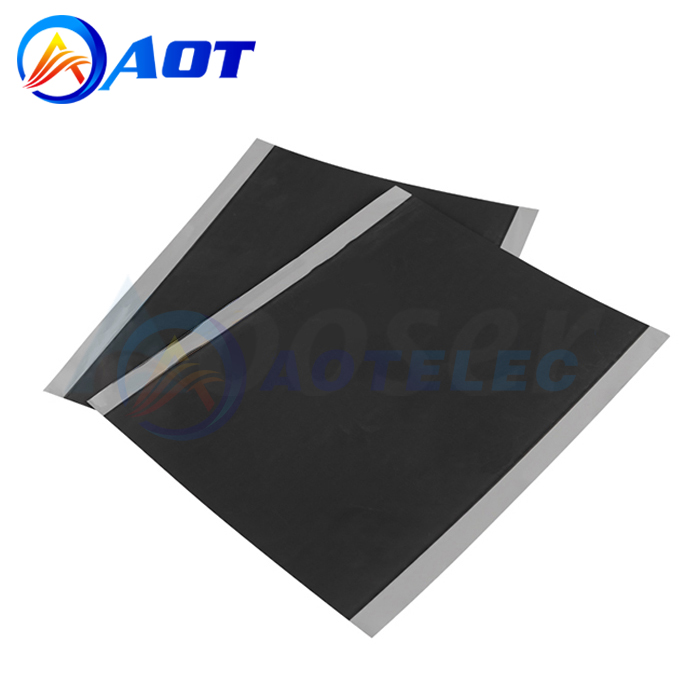

Product Name:Lithium sulfur battery carbon sulfur composite positive double-sided electrode plate
AOT- CF-SHEET
Brand Name. AOT
Product Orgin:China
Product description: Lithium-sulfur battery is the next generation of high energy density electrochemical energy storage device, the carbon and sulfur composite positive electrode double-sided electrode plate is the key c
INQUIRY

Lithium-sulfur battery is the next generation of high energy density electrochemical energy storage device, the carbon and sulfur composite positive electrode double-sided electrode plate is the key component to improve its performance. This electrode sheet uses advanced carbon-sulfur composite technology to effectively compound highly conductive carbon materials with sulfur through a carefully designed structure. Carbon materials not only provide a good conductive network for sulfur, but also effectively limit the volume expansion of sulfur during charge and discharge through its porous structure, and reduce the shuttle effect of soluble polysulfide ions, thus significantly improving the cycle stability and energy density of the battery.

project	test method	unit	specification
Pole plate size	measurement	mm*mm	50*80
Single-side sulfur load	weight method	mg/cm2	4.1 ±0.1
Initial discharge capacity (I=0.25C; 1C=1000mAh/g)	Constant-current method	mAh/g(0.2C)	≥1400
Initial discharge capacity (I=0.5C; 1C=1000mAh/g)	Constant-current method	mAh/g(0.5C)	≥1200
Specific capacity of secondary discharge:Specific discharge capacity of the second circle (I=0.25C; 1C=1000mAh/g)	Constant-current method	mAh/g(0.2C)	≥1200
Specific capacity of secondary discharge:Specific discharge capacity of the second circle (I=0.5C; 1C=1000mAh/g)	Constant-current method	mAh/g(0.5C)	≥1050
Aluminum Foil	thickness	um	16
Matters need attention	This product is black pole sheet, easy to absorb moisture, please strictly sealed and stored in dry environment, dry before use. Double-sided coating, no empty ear. In order to ensure the effectiveness of the pole sheet, it is recommended that the sealed bag be used within one week of opening. It is recommended to use electrolyte DOL: DME=1:1 (v: v), 1Mol/L LiTFSI. The test voltage range is 1.5V-2.6V, and the test temperature is 23±2℃.
