Precision Coin Cell Disc Cutter with 8-24mm Optional Cutting Die

  • Model: AOT-DC60
  • Name: Coin Cell Punching Machine
  • Applicaton: Coin Cell Electrode and Separator Round Sheet Cutting
  • Die Diameter: 8-24mm Customized
  • Product description: Coin cell disc cutter for battery electrode and separator punching, This machine is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed int
  • INQUIRY

Precision Lab CR20XX Coin Cell Disc Cutter with Optional 8-24mm Punching Die

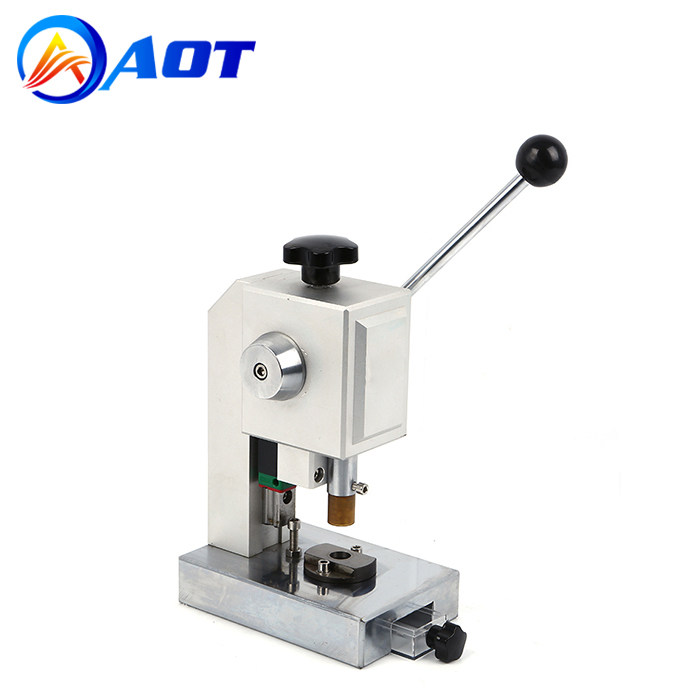

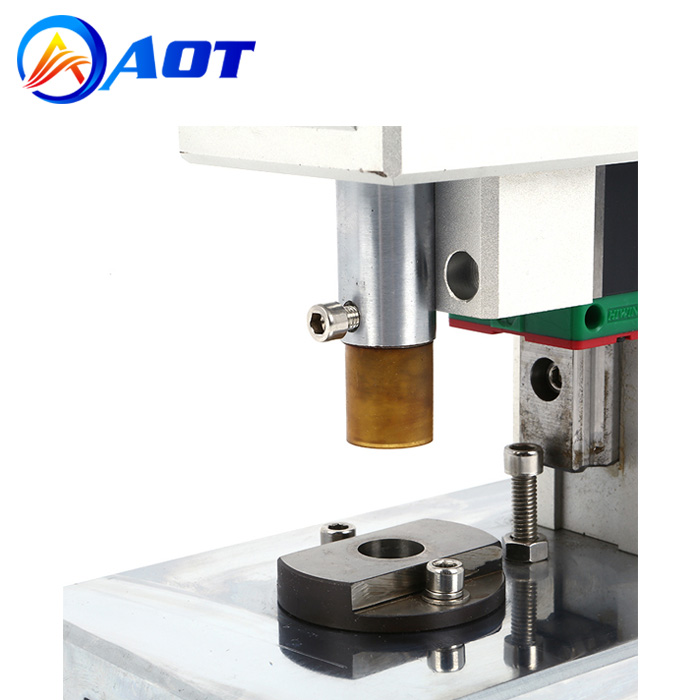

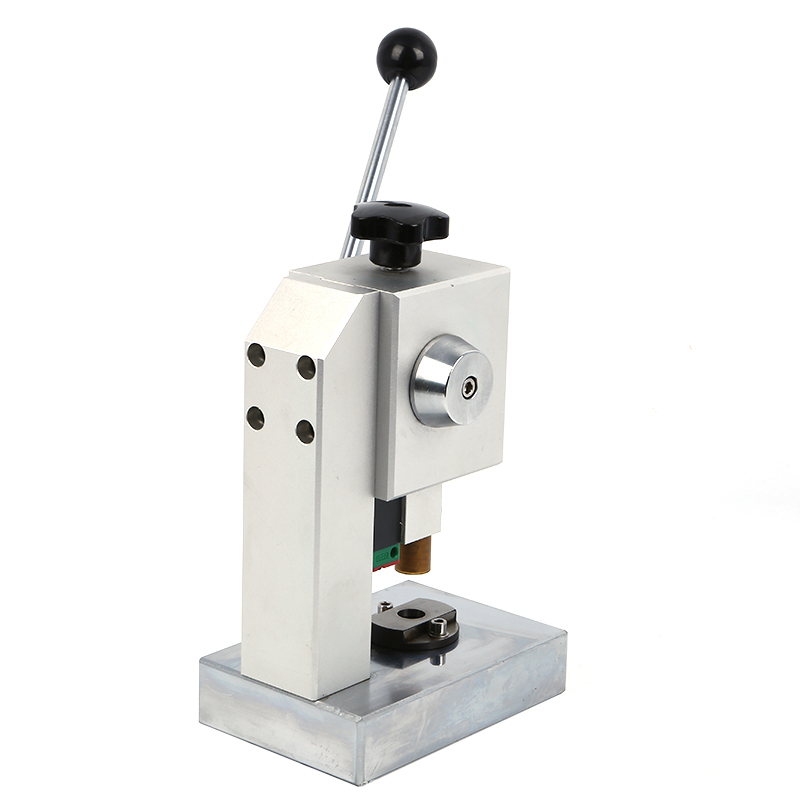

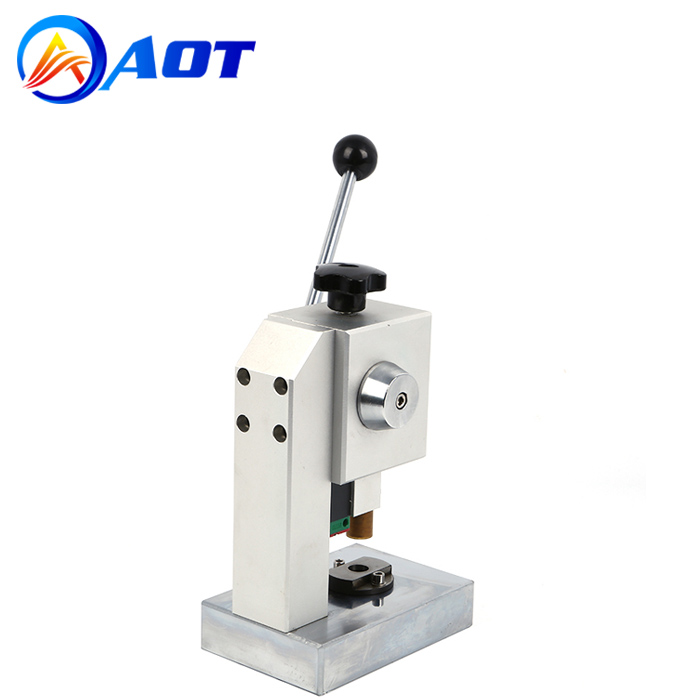

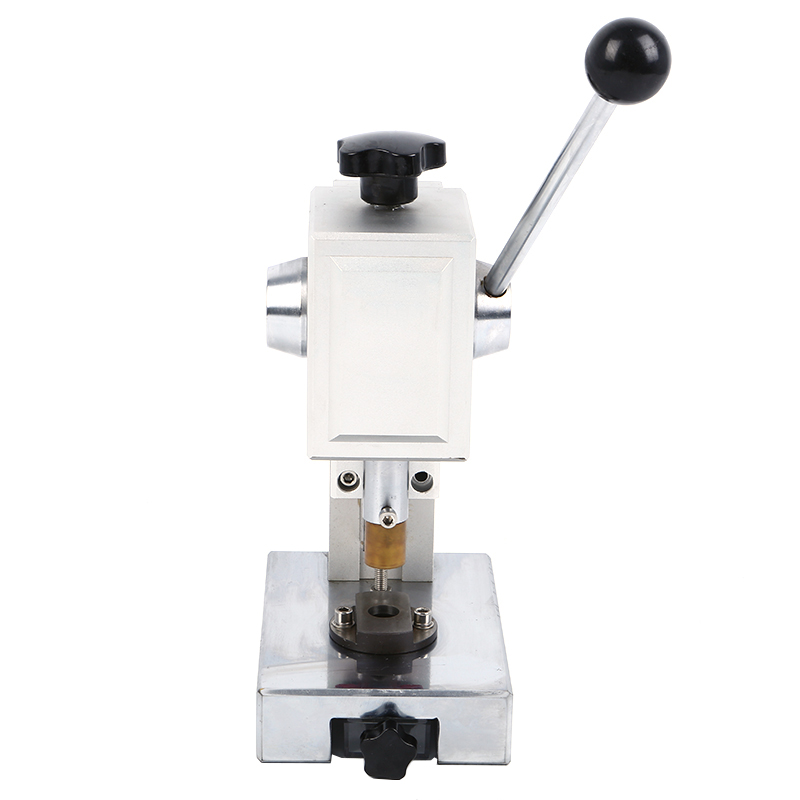

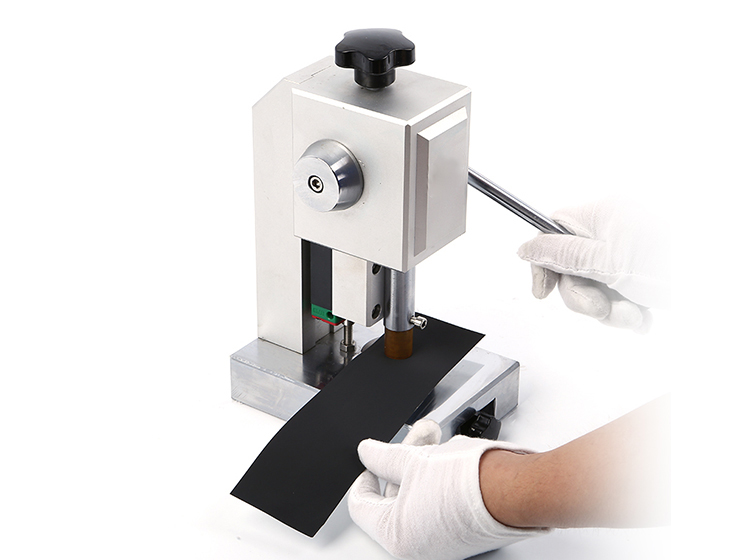

This machine is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box via a transition chamber which the diameter larger than 230mm.

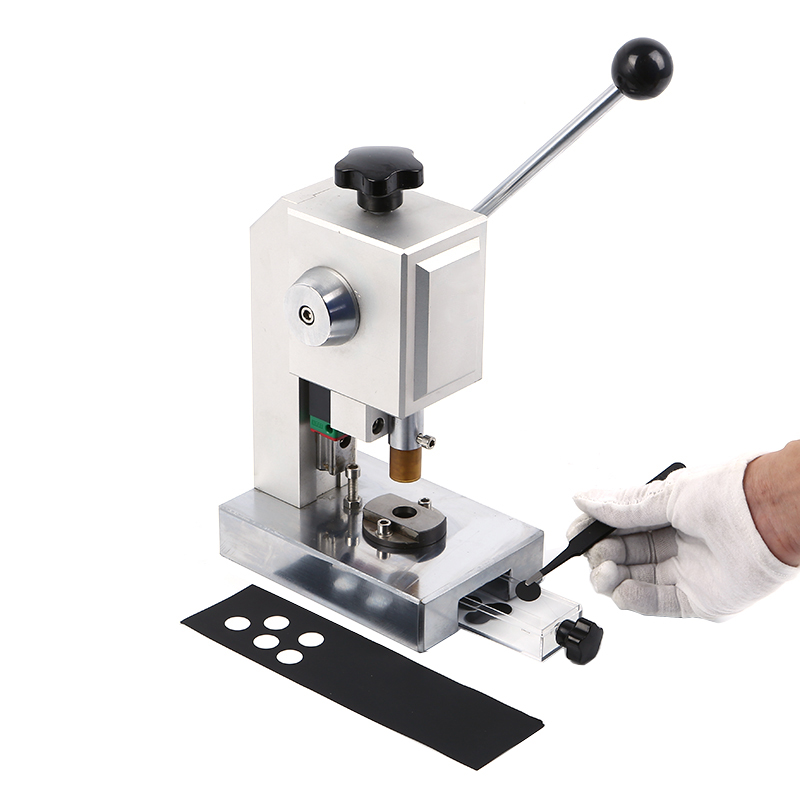

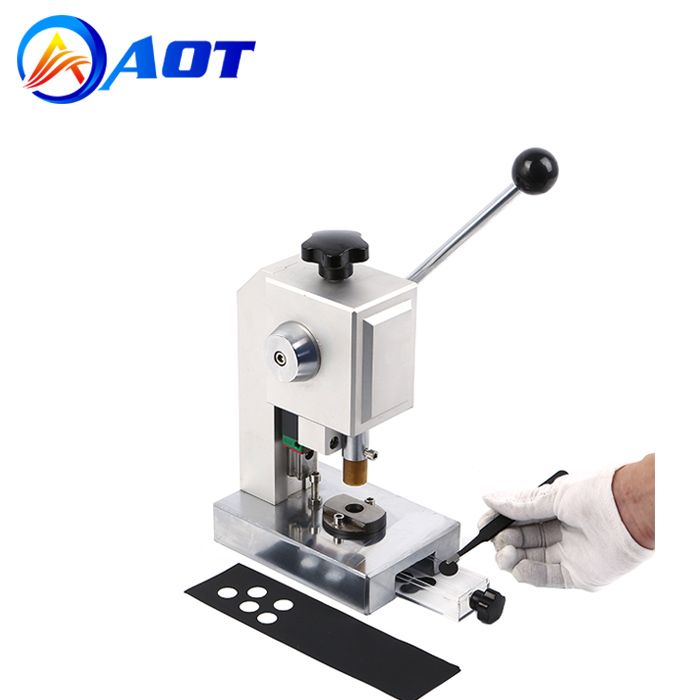

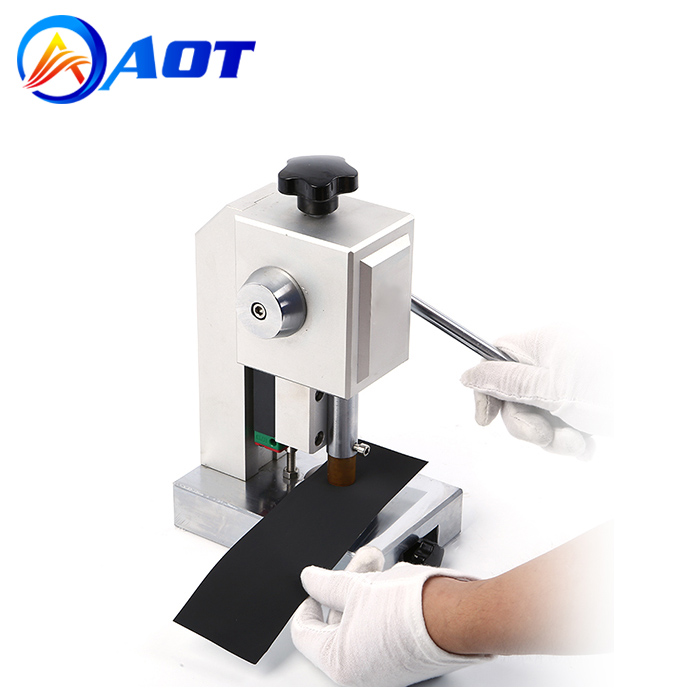

This tool is manually operated and is designed for cutting round discs from a thin metal sheet /foil (< 0.5 mm) or separator film (<30um). The finished discs can be used as electrode and separator discs for split test cell and coin cell, it is good for battery researchers as well as TEM sample preparation.

Features :

1. High accuracy ,no burrs,rags and dents .

2. It can cut various of battery materil with thinkness 0.005-0.5mm .

3. Small dimension, convenient operation, quick and flexible use into glovebox.

4. The machine body is made of anti-corrosion material that is anti-rust forever and has a nice appearance.

Machine model

Disc cutter for coin cell electrode and separatorpunching AOT-DC60

Operating

Manual

Punching size

Standard configuration: φ15mm electrodepunching die andφ19mm separator cutting die. (φ8-24mm customized)

Application Notes

For make CR2016, CR2025 and CR2032 coin cell batteries,

we will need at least three cutting dies:

A 15mm (for negative side case, which is 16.5mm in diameter)

B 19mm (for positive side case, which is 20mm in diameter)

C 20 mm (for separator to fully separate the electrodes)

For CR2450 coin cell:

20mm cutting die can be used for cutting electrode discs and the

24mm cutting die for either electrode or separator disc.

Punching stroke

25mm

Punching thickness

0.005-0.5mm electrode and separator

Advantages

Simple operation

Light weight

Can both cut electrode and separator

Dimension

110*150*235mm

Weight

About 7kg

Warranty

One Year
