Compact Pressure Adjustable Electric Crimper Machine for Coin Cell

Compact Pressure Adjustable Electric Crimper Machine for Coin Cell

Model: AOT-MSK-160E
Origin: China
Advantage: Digital Pressure Controller
Structure: Heavy Duty Steel Platform
Product description: AOT-MSK-160E is a compact Pressure Adjustable Electric Crimper for CR20XX coin cells, such as CR2016, CR2025, CR2032. The digital pressure controller can keep crimping force consistent at each time. T
INQUIRY

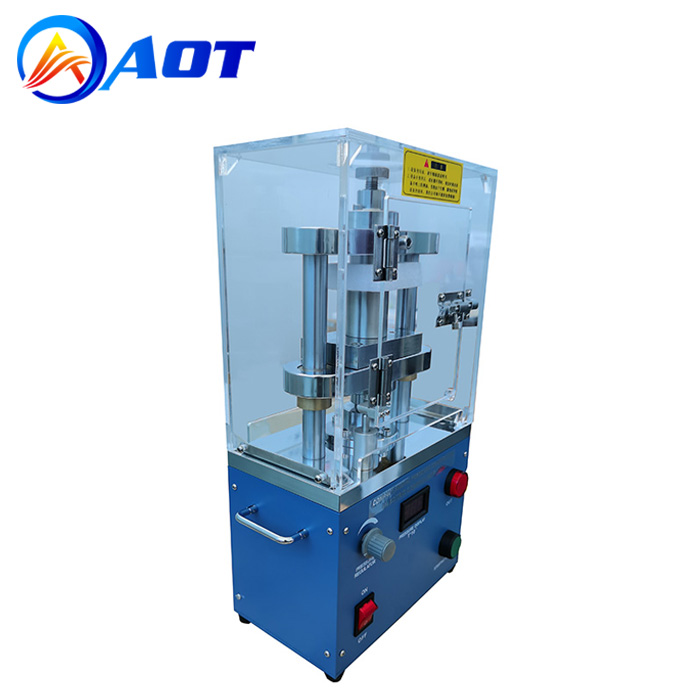

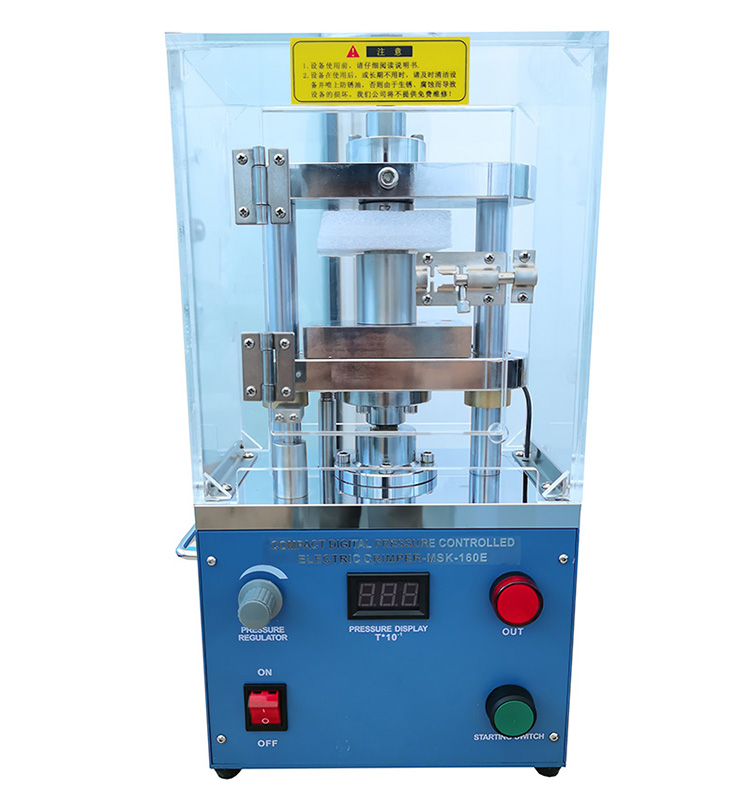

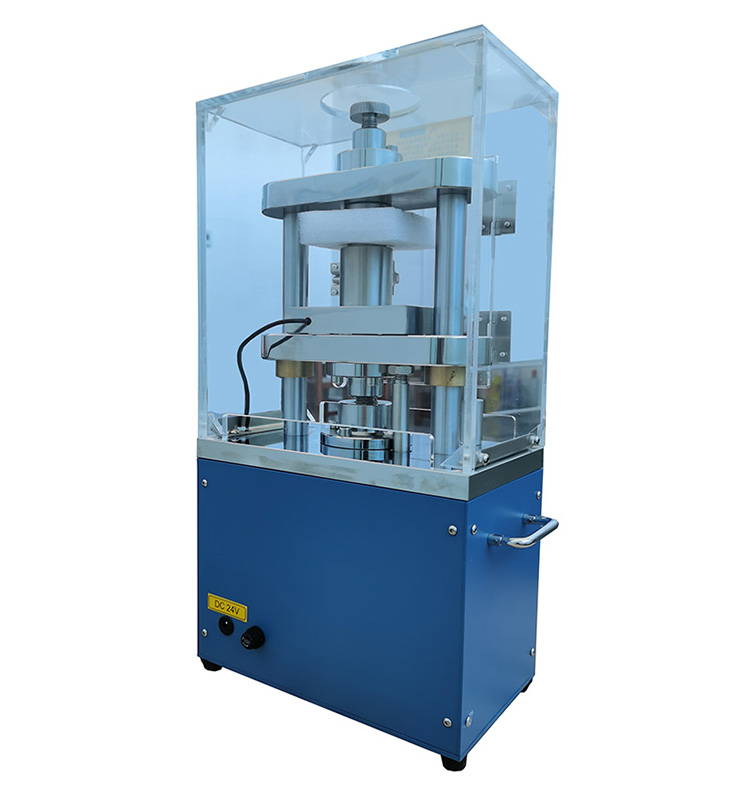

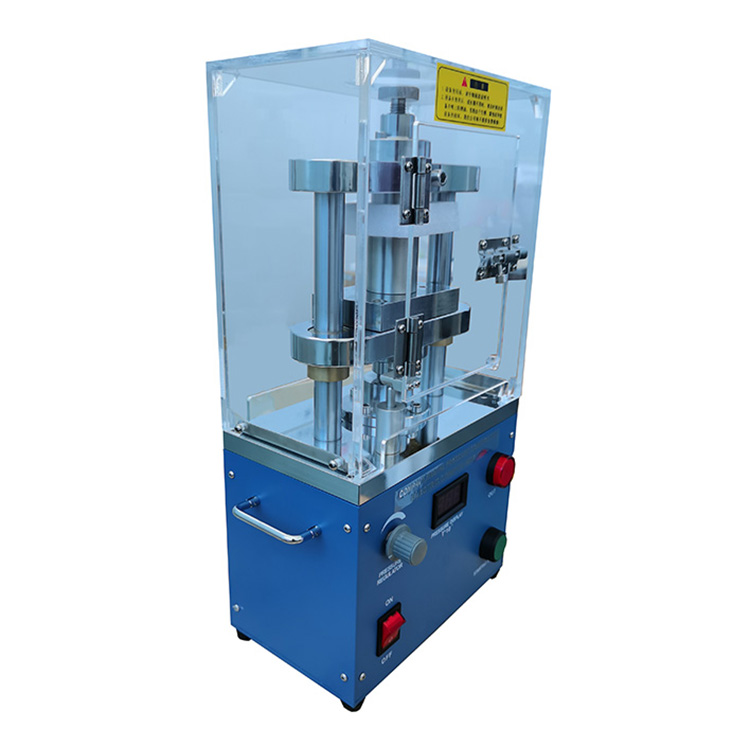

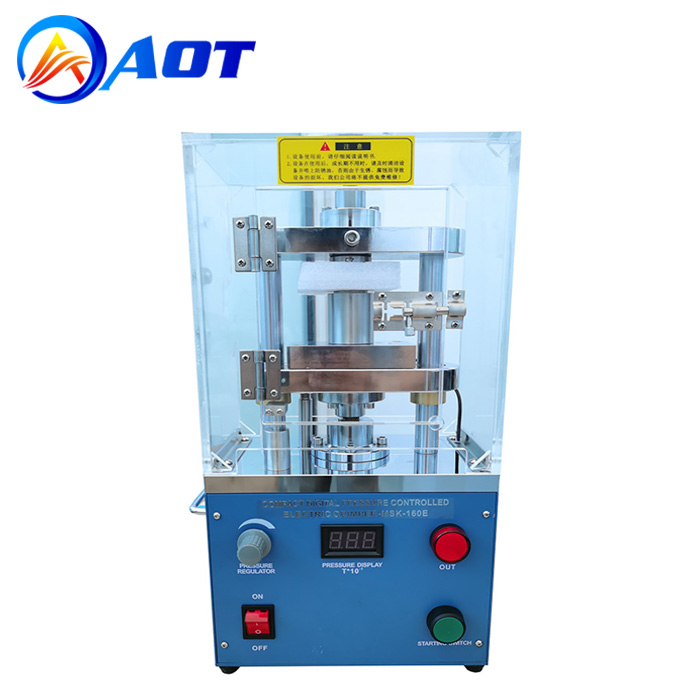

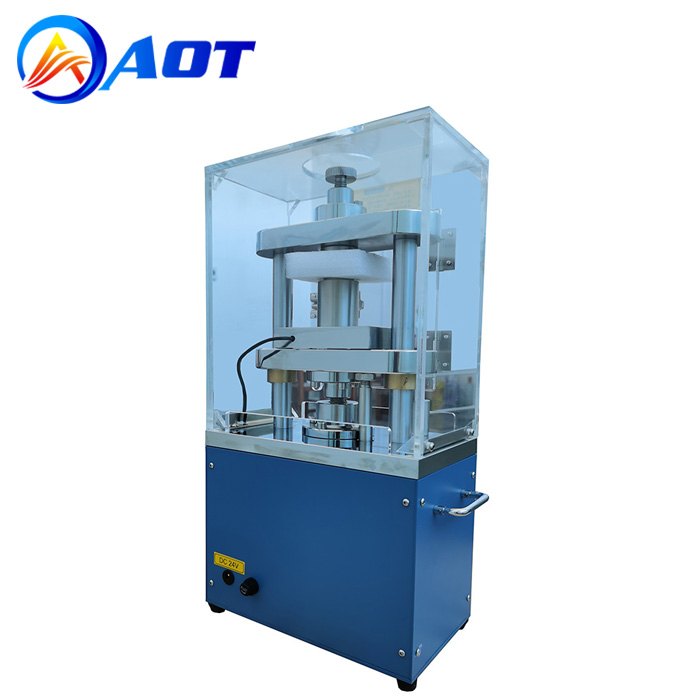

Compact Digital Pressure Controlled Coin Cell Electric Crimper AOT-MSK-160E

Description:

AOT-MSK-160E is a compact Pressure Adjustable Electric Crimper for CR20XX coin cells, such as CR2016, CR2025, CR2032. The digital pressure controller can keep crimping force consistent at each time. The compact size of crimper machine allows you put it inside the glove box.

Specification:

Model	Electric Crimping and Disassemble Machine for Coin Cell AOT-MSK-160E
Voltage	110 - 240V AC 50/60Hz
Power	24VDC motor with reducing gear, 15W

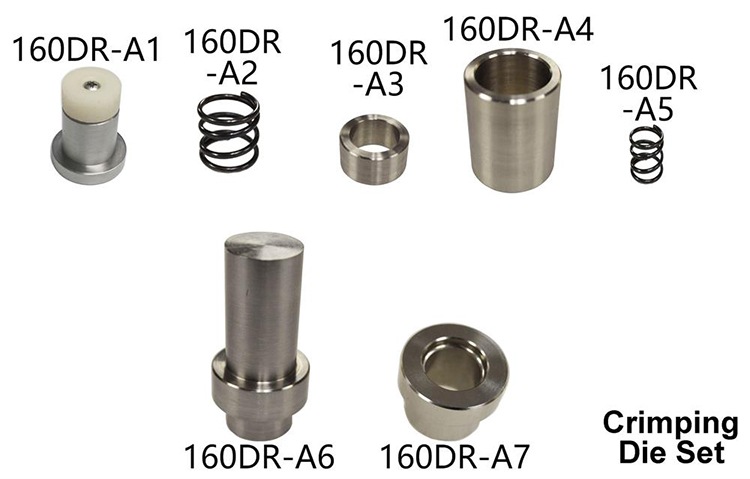

Die Set & Compatibility	1.Assembling and disassembling dies for CR2032, CR2025, & CR2016 coin cells. 2. Please read operation manual to see how to replace die from crimping to disassembling.
Structure	Heavy Duty Steel Platform
Pressure Control	A built-in load cell with digital display for pressure measurement and control Pressure adjustment range: 0-1.35T
Compliance	CE Certified
Warranty	One Year limited warranty with lifetime support
Maintenance Notes	Electrolytes are highly corrosive materials, and therefore the die set must be cleaned with alcohol after each use to avoid corrosion and to maintain the equipment's integrity.
Optional	Protection shield / enclosure (plexiglass) with safety interlock is installed
Net Weight	26kg
Product Dimensions	220mm(L) x 130mm(W) x 430mm(H)
