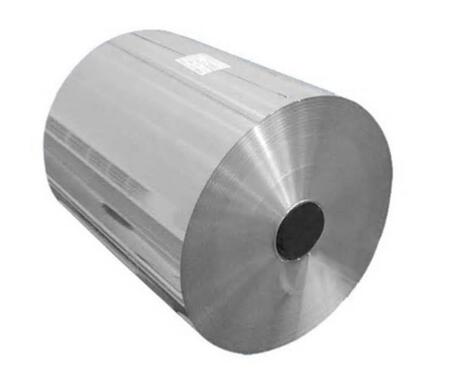

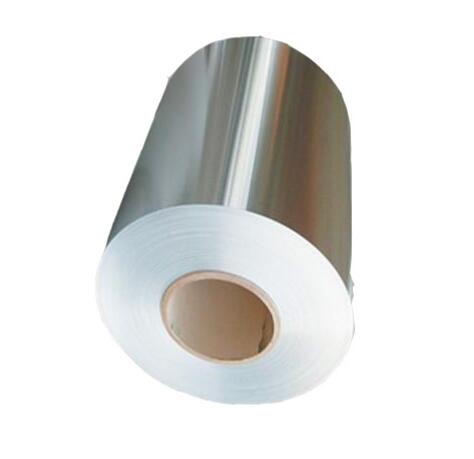

Pure Aluminum Foil for Lithium ion Battery Cathode Current Collector Material

Name: Aluminum Foil
Origin: China
Color: Silver White
Width: 200mm
Product description: Aluminum Foil Roll For Lithium Ion Battery Cathode Current Collector
INQUIRY

Aluminum Foil for Lithium battery electrode material

Aluminum Foil Roll For Lithium Ion Battery Cathode Current Collector

Width:200mm Thickness:16um

Battery Grade Aluminum Foil
Item	Data
Width	200mm
Thickness	16±1um
Areal density	30~34g/m2
With transverse surface density uniformity	≤0.003 g/ 40×40 mm
The same volume of vertical surface density uniformity	≤0.03 g/ 400×40 mm
High temperature oxidation resistance (200°C*30min)	No oxidation
Connect no	<2
Chemistry content(Al)	>99.45%
Extensibility	<0.5%
Normal temperature Tensile strength kgf /mm2	>140
After 1200C baking 1h, Tensile strength kgf/mm2	>120
