  • Slurry Resistance Analyzer Tester For Lithium Battery

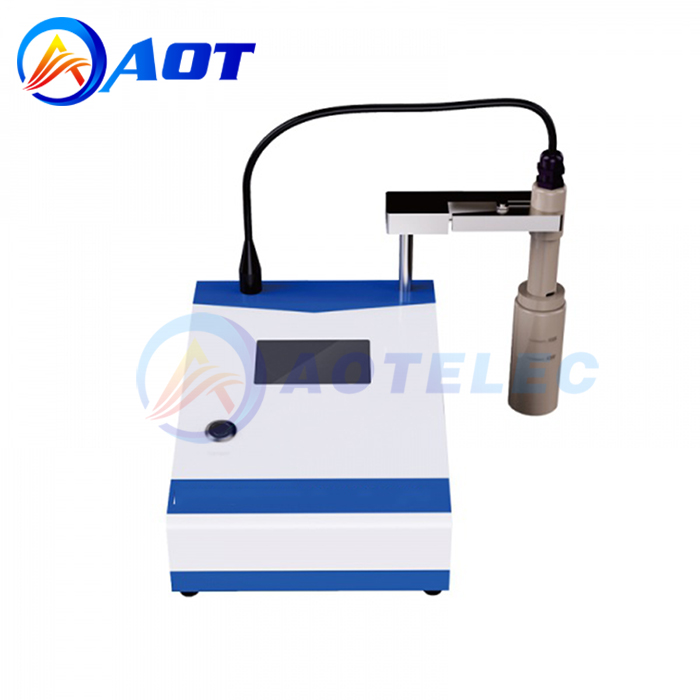

Slurry Resistance Analyzer Tester For Lithium Battery

Slurry Resistance Analyzer Tester For Lithium Battery

  • Product Name:Slurry Resistance Analyzer Tester
  • Model:AOT-BSR2300
  • Resistivity measurement range:2.5Ω*cm-50mΩ*cm
  • Origin:China
  • Product description: Slurry Resistance Tester Mainly used for material evaluation, formulation evaluation, and sedimentation performance evaluation of positive and negative electrode slurries and conductive agent slurries
  • INQUIRY

AOT-BSR2300 use the upper, middle and lower three pairs of electrodes to test the resistivity of the slurry at different vertical heights, evaluate the conductivity of different formulations of slurry and the settlement performance with the standing time.

Slurry Resistance Tester Mainly used for material evaluation, formulation evaluation, and sedimentation performance evaluation of positive and negative electrode slurries and conductive agent slurries for lithium (sodium) batteries.



Product Name

Battery Slurry Resistance Tester

Model

AOT-BSR2300

Resistivity measurement range

2.5Ω*cm-50mΩ*cm

Resistivity measurement resolution

0.01μS/cm

Resistivity measurement accuracy

±0.5%

Voltage

220-240V

Voltage variation tolerance

±10%

Power

80W

Environmental temperature

0-40

Environmental humidity

80%RH

Net wet

5kg

Dimension

W210*D300*H120 mm

Test steps: Putting a certain volume of slurry (~80mL) into the measuring glass, inserting a clean electrode pen, start the software, start to test the changes in the slurry resistivity at the three pairs of electrodes over time and save it in the file.



Test parameters: Resistivity, Temperature, Time

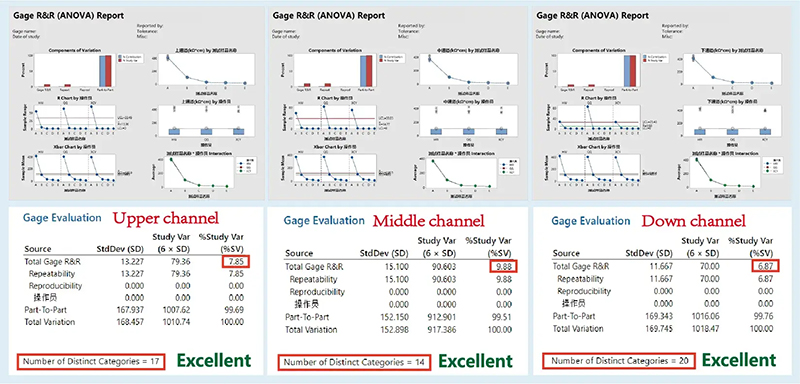

Test program: Three operators, five parallelsamples, and random testing.



Test method: Sonicating the electrode pen withdeionized water for 30 seconds,and drying it with the dust-freepaper. Then five parallel sampleswas tested, and the fifth set of datawas taken for the GRR analysis.


Battery Slurry Resistance Tester
