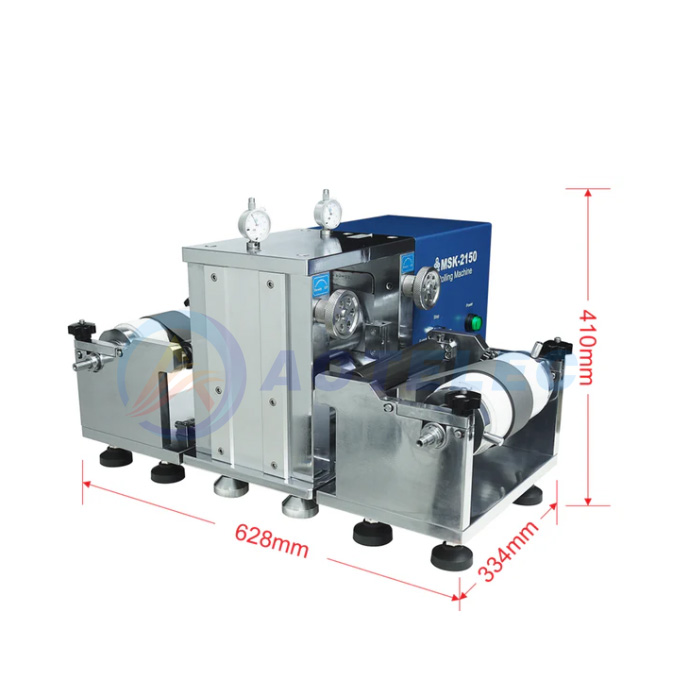

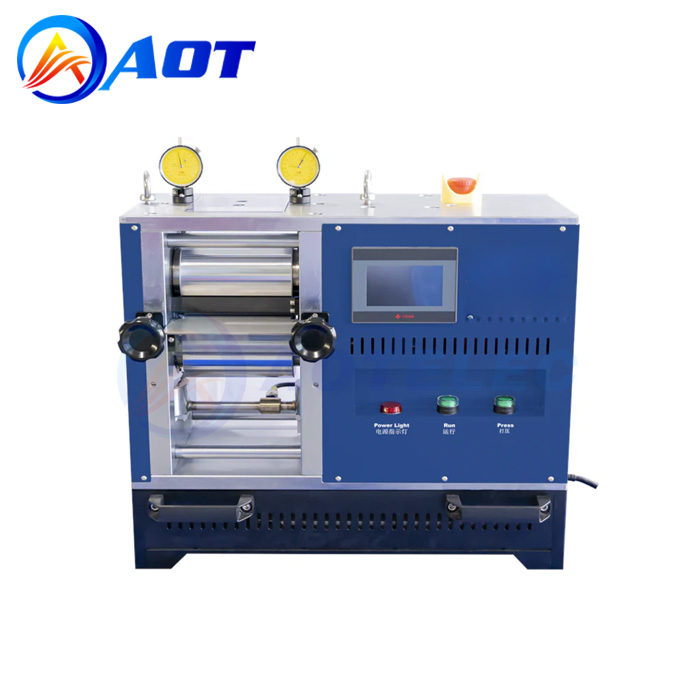

AOT-MSK-2150-H5 is a 150mm width (6") pressure-control electric rolling press. It is an ideal rolling press with adjustable pressure for battery electrode calendaring and improving electrode density.
Product model | AOT-MSK-2150-H5 |
Features | 1.Loading force up to 5T adjustable by touchscreen control 2.Rolling speed adjustable in the range of 0.1-2.5 m/min 3.Roller size: 150mm width x 100 mm Dia, made of hardened steel (RC: 58 - 60) with Cr electroplated coating 4.Dual micrometer for accurate thickness adjustment in the range 0 - 2.5 mm
|
Working Voltage | AC110-220V,single phase,50/60Hz, 1000W
|
Rolling Accuracy | ± 1.5 μm
|
Rolling Motor | 750W reduced AC motor with frequency speed controller
|
Surface Hardness of Rollers | 1.HRC 58 - 60 2.Never roll materials with hardness > 50 HRC 3.Sample width max 140 mm 4.Note: The benchtop rolling press is not suitable for calendering thick metals. For applications with such needs, please consult with MTI engineers
|
Digital Micrometer | 1.Range: 0 - 10mm 2.Resolution: 0.01mm (or 0.001in) 3.Unit interchangeable (mm / in) 4.Zeroing 5.Power supply: CR2032 3V Li-ion battery 6.Operating temperature: 0 ~ 40°C |
Roll to Roll System | 1.Roll to Roll function is available by combining a roll-to-roll 2.208 - 240 VAC, 50/60Hz, Single Phase 3.220V AC Power plug is not included. |
Company Profile
Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Certificate
Cooperative
FAQ
Q1:How long do you need to prepare my goods?
A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
