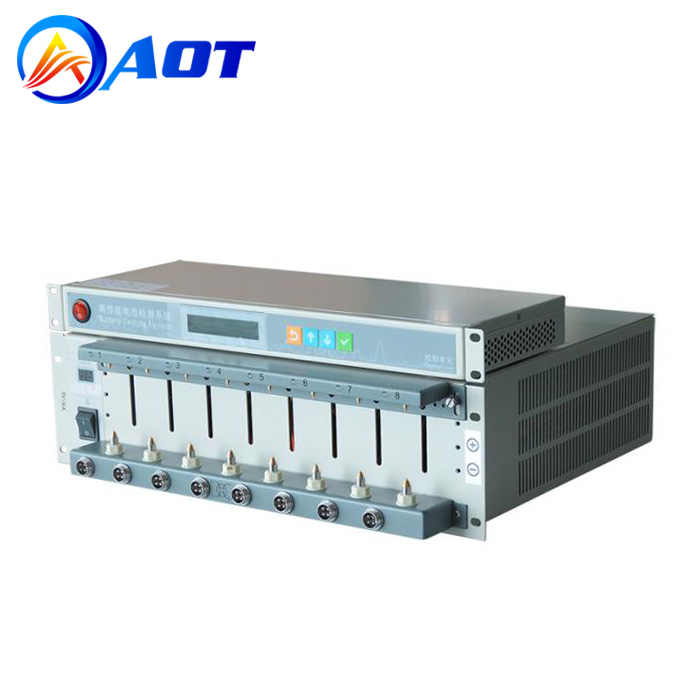

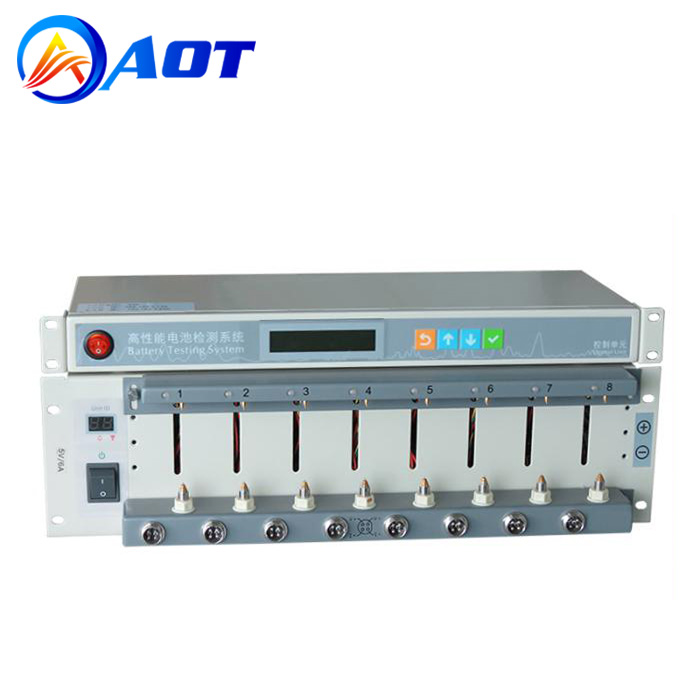

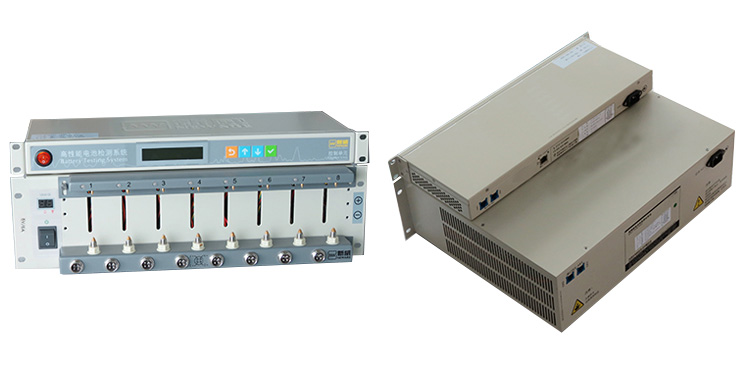

5V6A Lithium Battery Charge Discharge Capacity Cycles Tester for Cylinder Cell and Pouch Cell

5V6A Lithium Battery Charge Discharge Capacity Cycles Tester for Cylinder Cell and Pouch Cell

5V6A Battery Tester
8 channels work independently

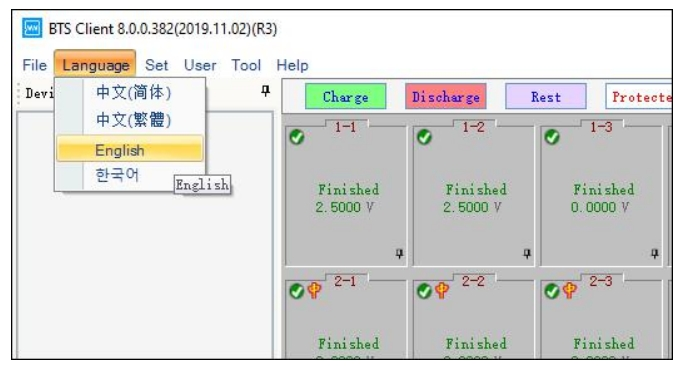

With CD Software
Automatic Dual Range Testing
Product description: Battery Capacity Tester 5V6A For Lithium Battery 18650 and Polymer Battery Testing
INQUIRY

Battery Capacity Tester 5V6A for 18650 and Polymer Battery Testing

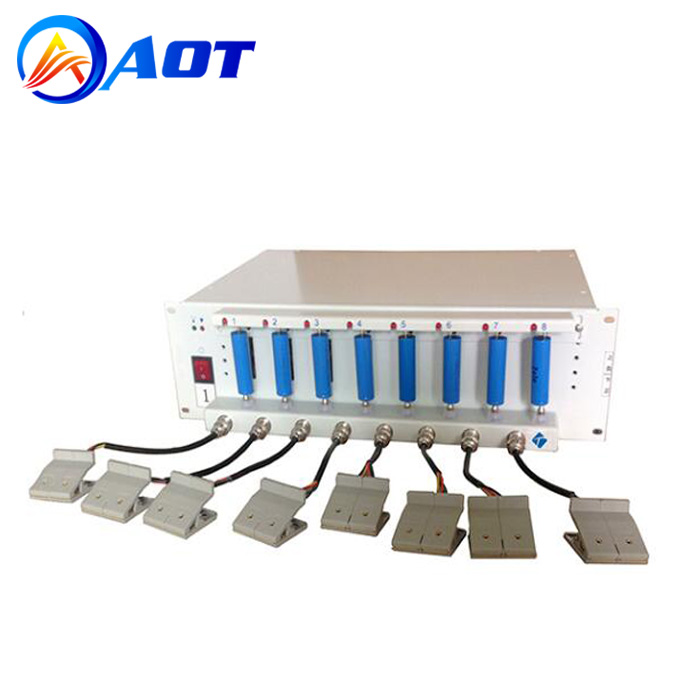

1 AOT-5V6A-4008 battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 0.1 mA to 6000 mA, up to 5V. With Channel parallel, the Current can up to 12000mA.

2 This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.

3 AOT-4008 Series testing system has more quick sampling speed, attached with DC Resistance testing function. It also add with Channel parallel function which can enlarge the current up to twice of the normal range.

4 If you use this tester to test Super capacitor, please choose the model AOT-CT-4008-Z, with the min discharge voltage up to 0 V, Suitable for super capacitor, NI-MH battery, Nickel-chromium battery and all kind of rechargeable battery testing.

Project index		Parameter index
Input Power		AC 220V ±10% / 50Hz
resolution		AD:16bit;DA:16bit
Input Resistance		≥1MΩ
Input Power		425W
Channel Features		Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode		Independent Control
Voltage	Per Channel Voltage Range	Range1:0.5mA~0.1A; Range2:0.1A~3A; Range3: 3A~6A
	Discharge Min Voltage	2.5V
	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
Current	Per Channel Current Range	Range 1: 0.0001A-0.1A, Range 2: 0.1A-6A
	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
Power	Per Channel Output Power	30W
Power	Stability	± 0.1% of FS
Time	Current Response Time	1ms (0-Full Range)
Time	Step Time Range	≤(365*24 )hour/step, Time Form Support 00:00:00(h,min:s,ms)
Data Recording	Record Condition	Minimum Time Interval: 100ms
		Minimum Voltage Interval: 10mV
		Minimum Current Interval : 12mA
	Record Frequency	10Hz
Charge	Charge Mode	Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge,CPC
Charge	End Condition	Voltage,Current,Relative Time,Capacity
Discharge	Discharge Mode	CCD,CPD,CRD
Discharge	End Condition	Voltage,Current,Relative Time,Capacity,
Pulse	charge	CCC
	Discharge	CCD
	Min Pulse Width	500ms
	Automated Switch	Automated swith from charge to discharge for each pulse
	End Condition	Voltage, Test Time
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	Nested loop Function,Max Support 3 Layers
Protection	Software Protection	Power-down Data Protection
		Off-line Testing Function
		l Setting Protection Condition,Setting Parameter: Low Voltage limit,Upper Voltage limit,Low Current limit, Upper Current limit,Delay Time
	Hardware Protection	Additional Anti-reverse Protection Model
Voltage and Current Testing Sample		4-wire connecting
Noise		<85dB
Database		MySQL Database
A Means of Communication of Upper Machine		TCP/IP Protocol
Data Output		EXCEL,TXT,Graph
Communication Interface		Ethernet Port
Per Unit Main Channels No.		8
Dimensions		3U,482508378(mm)
