Copper-lithium composite tape is a composite metal tape that combines the high conductivity and heat conductivity of copper with the light weight and high energy density of lithium. It is formed through processes such as rolling and explosive welding, with a strong interface bond.

1. Packaging instructions (double-layer protective packaging: 2 layers of aluminum-plastic bags sealed)

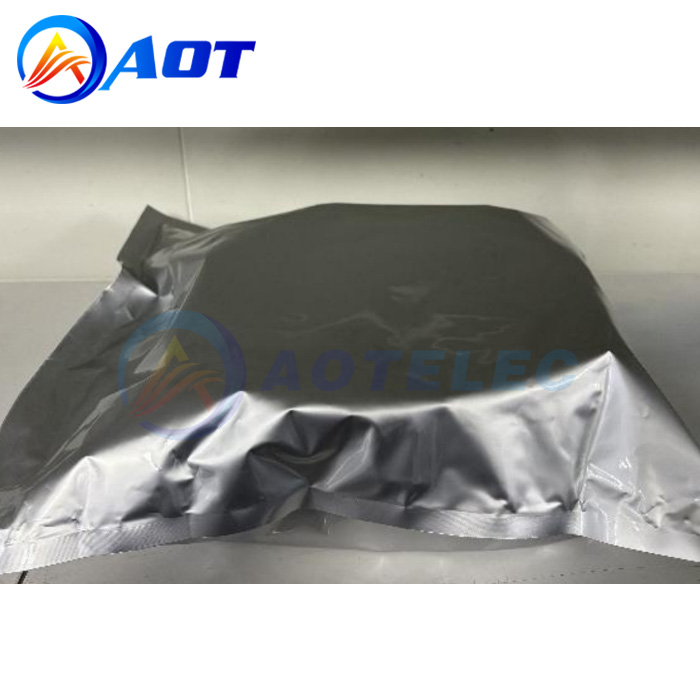

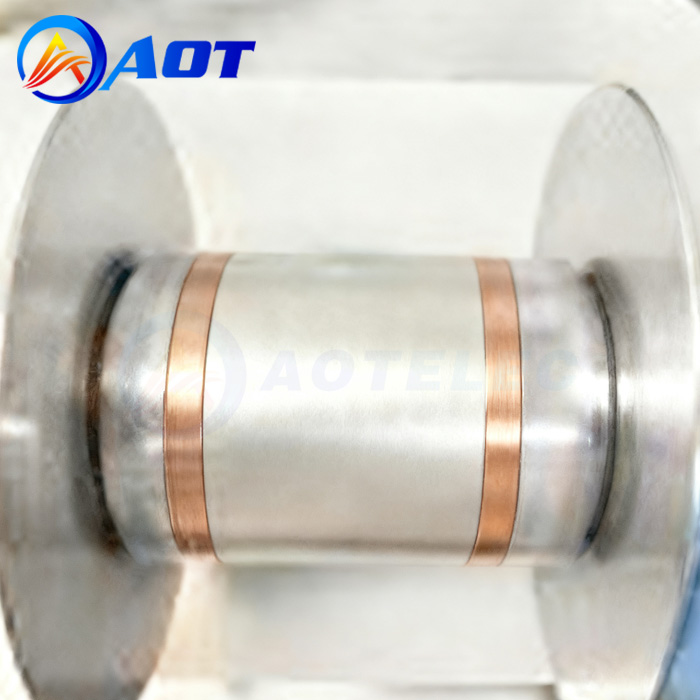

The copper-lithium composite tape is wound on a reel. In the drying room, it is first placed inside a layer of aluminum-plastic bag for vacuum sealing, and then another layer of aluminum-plastic bag is placed for sealing (2 layers of aluminum-plastic bags, with residual dry air inside the aluminum-plastic bags), and there is a small amount of dry air in both layers of bags;

2. Usage instructions

2.1 The glove box needs to be pre-cleaned to a water-oxygen value (H20, 0:) <1ppm and maintained in an inert gas (such as 99.999% high-purity argon) atmosphere;

2.2 In a dry environment, remove the outer layer of aluminum-plastic bag outside the glove box (to avoid the slight dry air in the outer layer of aluminum-plastic bag contaminating the atmosphere inside the glove box), ensure that the inner layer of aluminum-plastic bag is undamaged, then transfer the unopened aluminum-plastic bag to the purified glove box. It is recommended to store in the glove box for more than 1 day before opening (using the circulating argon gas to remove the attached moisture on the surface of the aluminum-plastic bag);

2.3 During transfer, do not perform vacuum treatment for a long time in the transition chamber, instead, perform ventilation a few times in the transition chamber, each time with a vacuum of 1096~20%, and replace 10~20 times to avoid the packaging material cracking due to negative pressure and causing product oxidation and deterioration;

2.4 The inner layer of aluminum-plastic bag may still have a small amount of dry air. After opening the bag, the oxygen content in the glove box increases as a normal phenomenon. The atmosphere of the glove box can be replaced with inert gas (such as 99.999% high-purity hydrogen) to do so;

2.5 Suggested storage method: After opening the glove box for use, immediately seal it and store it (it is recommended to use the original aluminum plastic bag for packaging, and it is strictly prohibited to use packaging bags that have not been dried properly). Most of the product surfaces of the glove box contain attached water (natural air). Keeping it exposed in the glove box is likely to be affected by other items and cause discoloration.

Company Profile

Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.

Exhibition

AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Certificate

Cooperative

FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.

Q4:How to get technical support after purchasing?

A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
