How to install the cutting die of coin cell disc cutter AOT-CP60?

How to install the cutting die of coin cell disc cutter AOT-CP60?

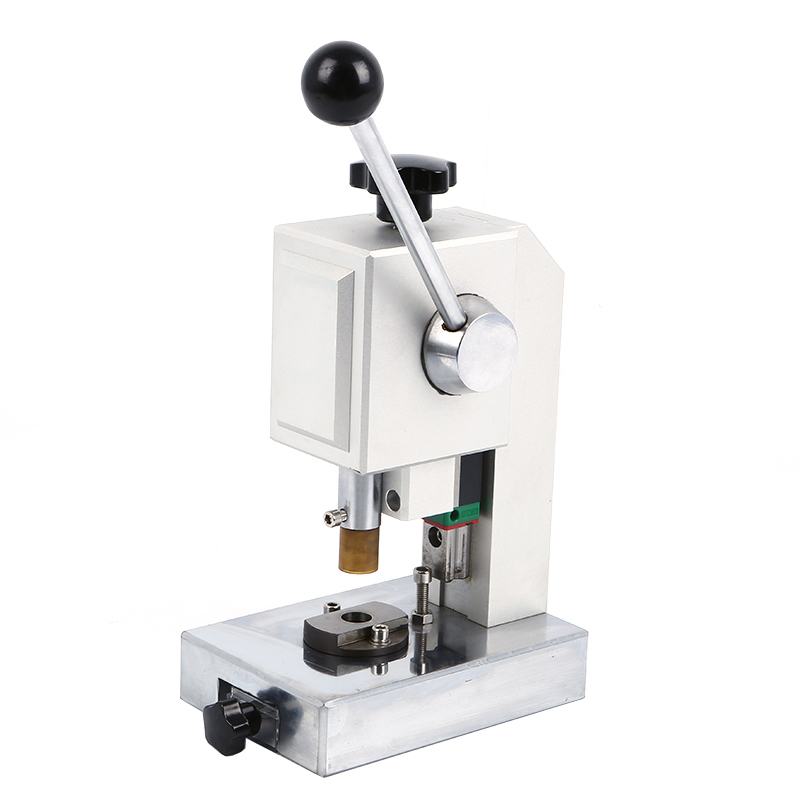

CE Certification Coin Cell Battery Disc Cutter Punch Machine

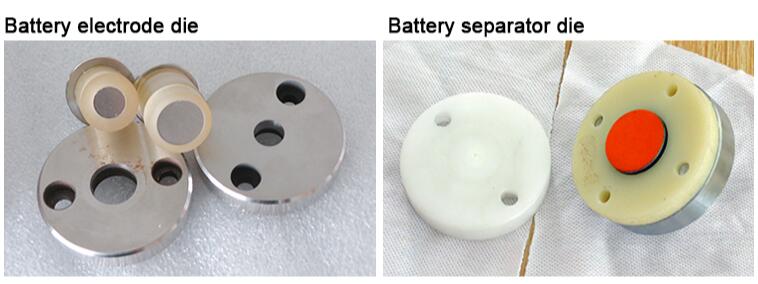

Different dies for cutting electrode and battery separator:

Different Cutting dies for Coin Cell Disc Cutter

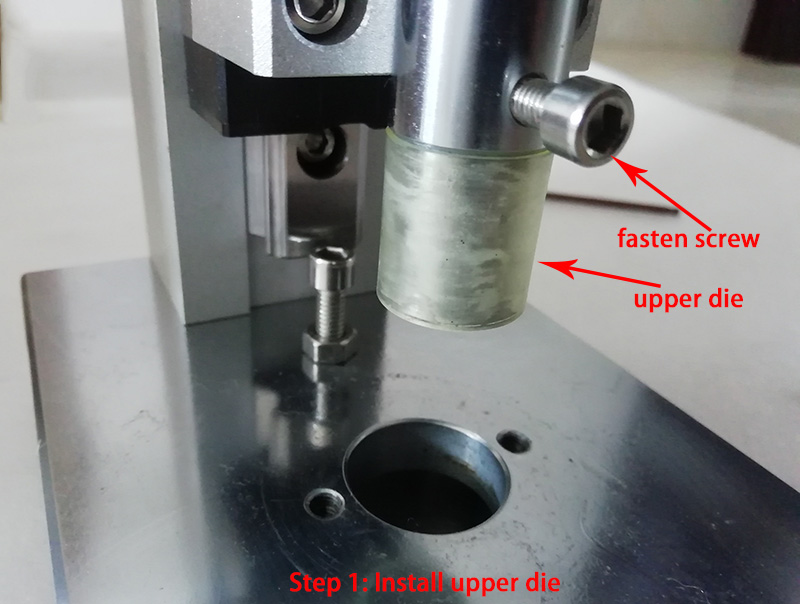

Step1: Install upper die, and fasten it with screw.

Install Cutting Die of Coin Cell Disc Cutter Step1

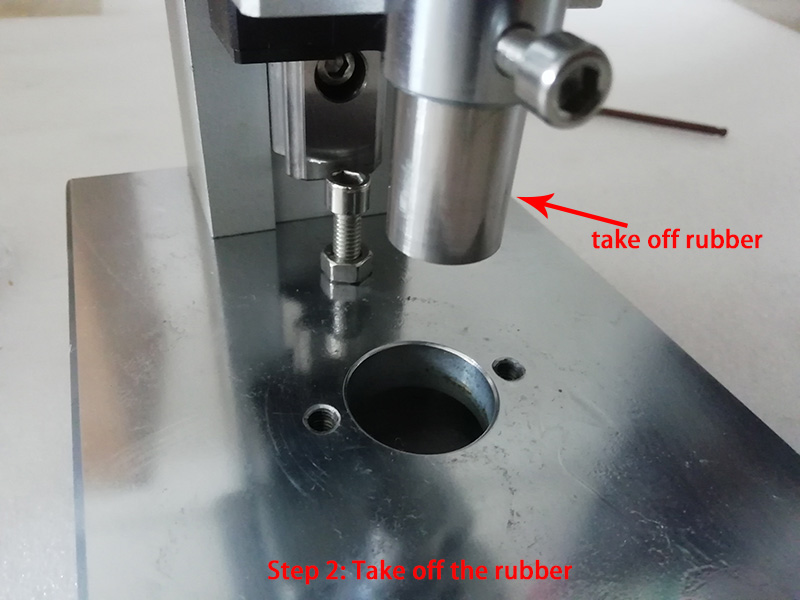

Step2: Take off the rubber which is on the upper die.

Install Cutting Die of Coin Cell Disc Cutter Step2

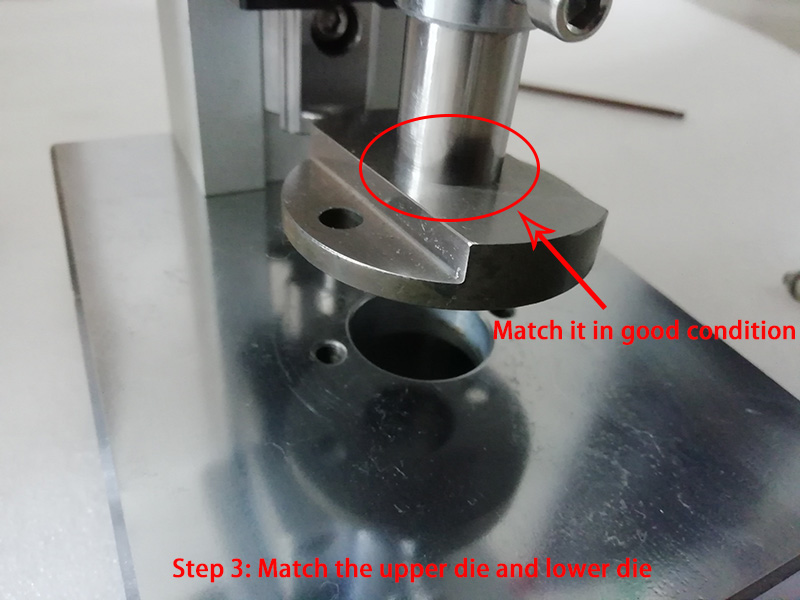

Step 3: Match the upper die and lower die, make them closed in a good condition.

Install Cutting Die of Coin Cell Disc Cutter Step3

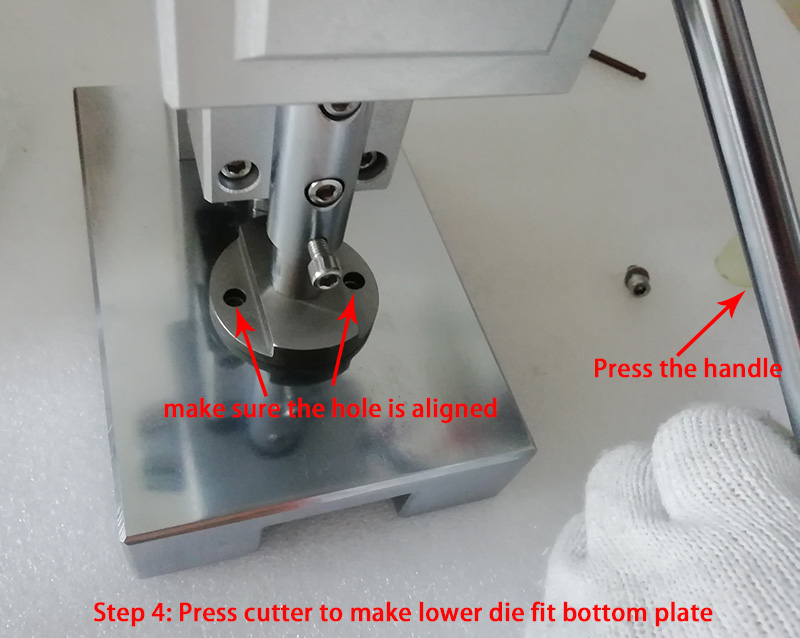

Step 4: Press the handle and hold on, make sure the holes are aligned.

Install Cutting Die of Coin Cell Disc Cutter Step4

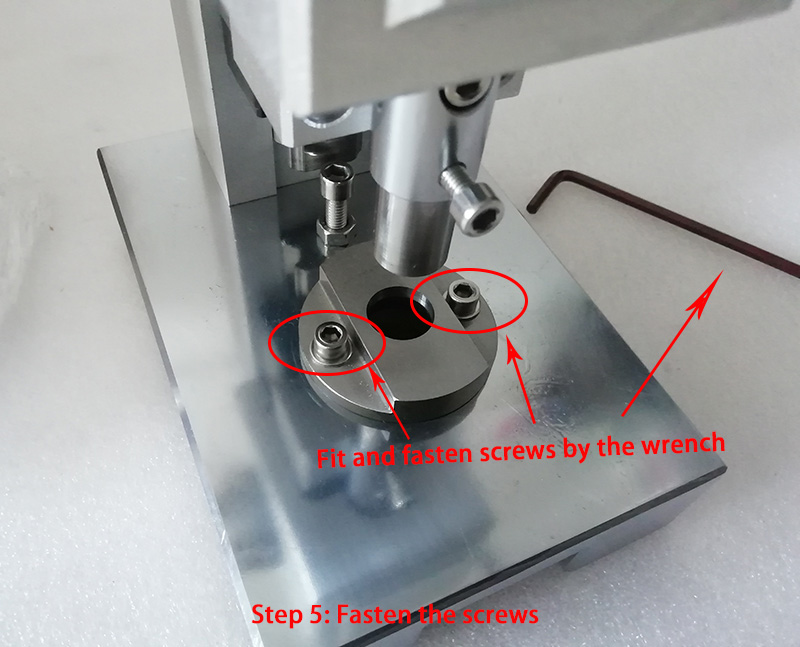

Step 5: Fit and fasten the screws by the wrench, and then loosen the handle.

Install Cutting Die of Coin Cell Disc Cutter Step5

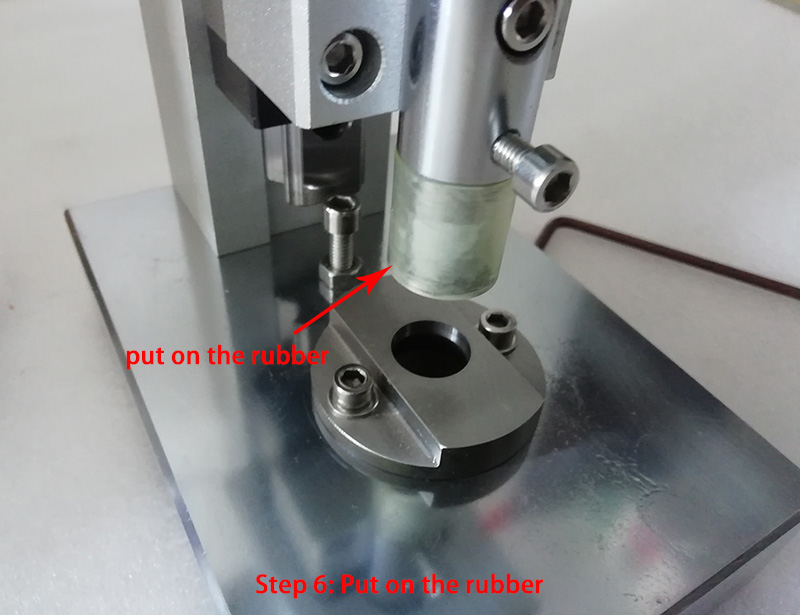

Step 6: Put on the rubber, then you can start cutting battery electrode

Install Cutting Die of Coin Cell Disc Cutter Step6
