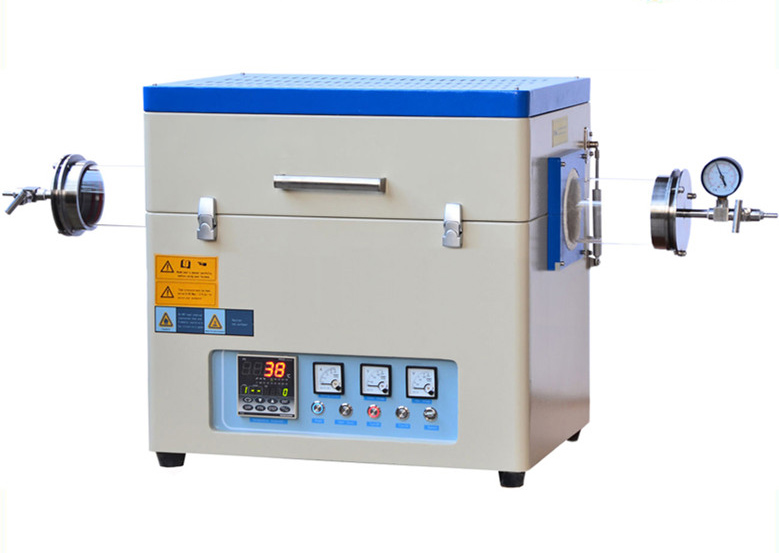

1200C Compact Single Zone Split Tube Furnace

1200C Compact Single Zone Split Tube Furnace

  • Model: AOT-TF-1200C
  • Origin: China
  • Max working temp: 1200 Degree
  • Max constant working temp: 1100C
  • Product description: compact split tube furnace feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high quality grade 1500 alumina fiber insulation. A double walled steel internal housing
  • INQUIRY

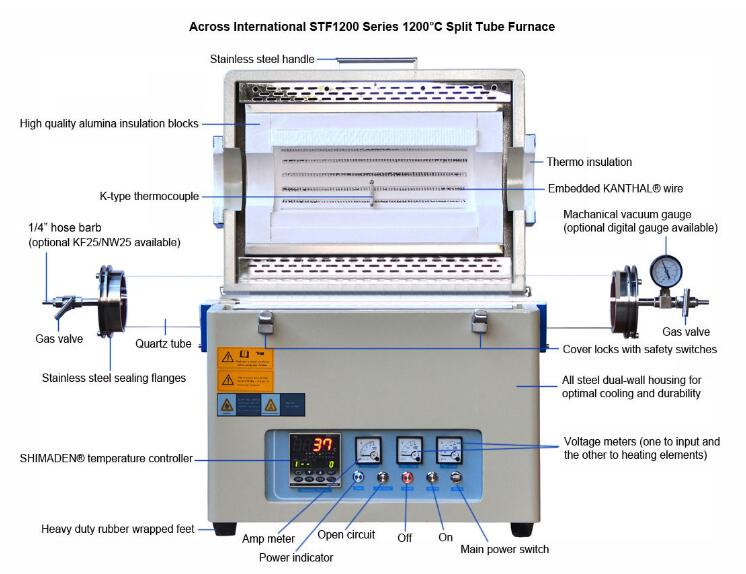

Single-Zone 1200°C Split Tube Furnace

AOT-TF-1200C compact split tube furnace feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high quality grade 1500 alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.

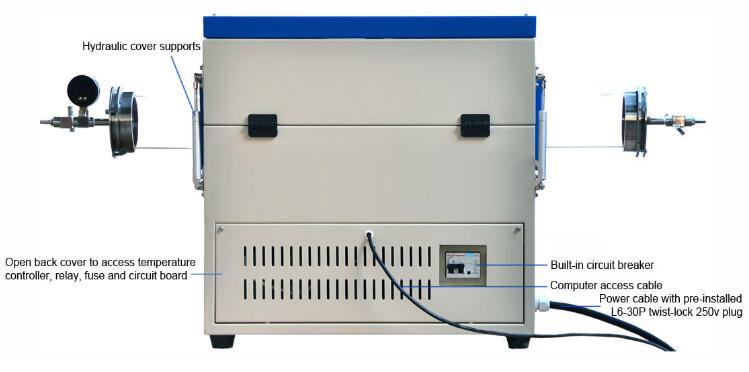

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

All our furnaces are CE compliant.


Features

Compact, portable and lightweight design.

Split furnace chamber for fast and easy tube access.

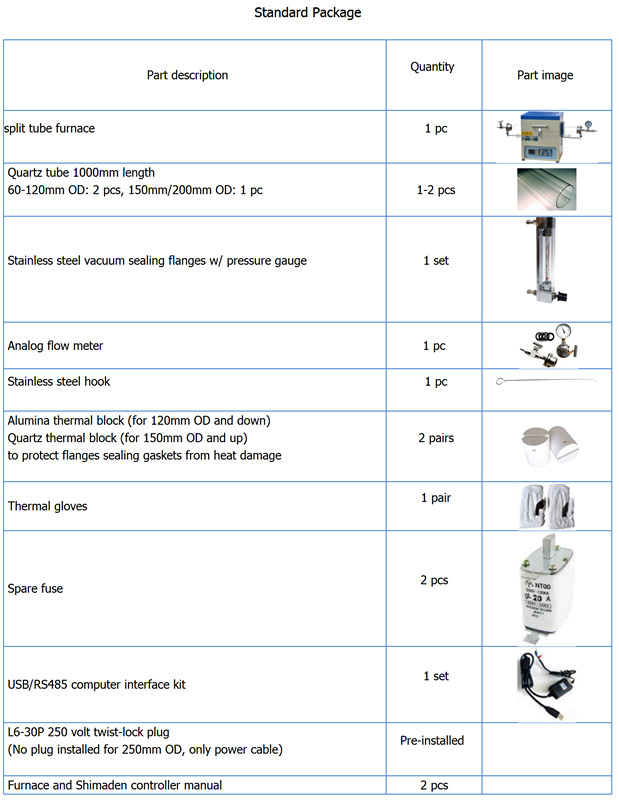

Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
Built-in computer interface.

Long life type K thermocouple.


Safety

1 Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.

2 Power failure protection resumes furnace operation right after the point of failure when power is reestablished.


Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.


General specifications

Electrical requirements

110-240VAC, 50/60 Hz, single phase

Tube material

Quartz

Maximum working temperature

1200°C

Maximum constant working temperature

1100°C

Constant working temperature under vacuum

1000°C

Minimum working temperature

Ambient

Rated vacuum pressure

0.001 Pa / 0.0075 millitorr / 0.00001 mbar

Rated positive pressure

0.02 MPa / 150 torr / 3 psi

Heating element type

Kanthal (Sweden) resistance coil wire

Thermocouple type

K

Refractory lining

Mitsubishi (Japan) high quality 1500 grade fiber alumina

Temperature controller

Shimaden (Japan) fp93 (made in Japan) with 4 programs and
40 segments (ie. 4 x 10 segments or 2 x 20 segments).

Maximum heating & cooling rate

< 30°C / min

Heating zone length

16 inches

Constant temperature zone length

10 inches

Temperature controller precision

+/- 1°C

Vacuum sealing flange kit

Stainless steel vacuum sealing flanges with one vacuum gauge,
two valves and four thermal ceramic blocks.

Gas inlet/outlet

1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)

CE compliance

Yes


Size comparison

Tube size (OD x length)

60mm x 1m

80mm x 1m

100mm x 1m

120mm x 1m

150mm x 1m

200mm x 1m

250mm x 1m

Maximum output

2.5 kW

3.5 kW

3.5 kW

4 kW

5 kW

6 kW

8 kW

Furnace dimensions (LxWxH)

24x15x20"

24x17x23"

24x17x23"

24x17x23"

24x18x24"

26x21x28"

26x21x28"

Shipping dimensions (LxWxH)

46x21x36"

46x21x36"

46x21x36"

46x21x36"

46x22x37"

50x28x40"

50x28x40"

Shipping weight (Lb)

260

300

340

400

450

500

650
