Bench-Top Muffle Furnace with Quartz Window For Lab

Product Name;Bench-Top Muffle Furnace
Voltage:AC 208V-240V single phase, 50/60 Hz
Power:6000W
Origin:China
Product description: This is a bench-top muffle furnace with a maximum temperature of 1700°C.Quartz window with 50 mm diameter.
INQUIRY

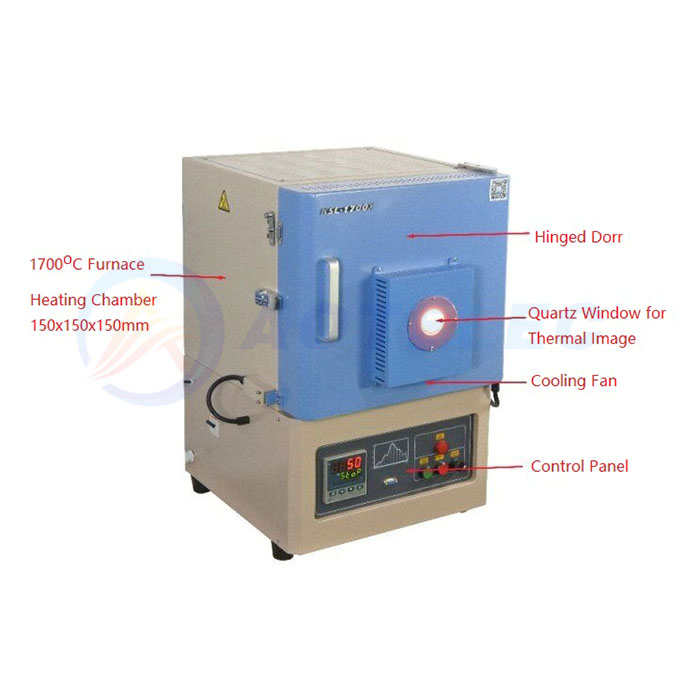

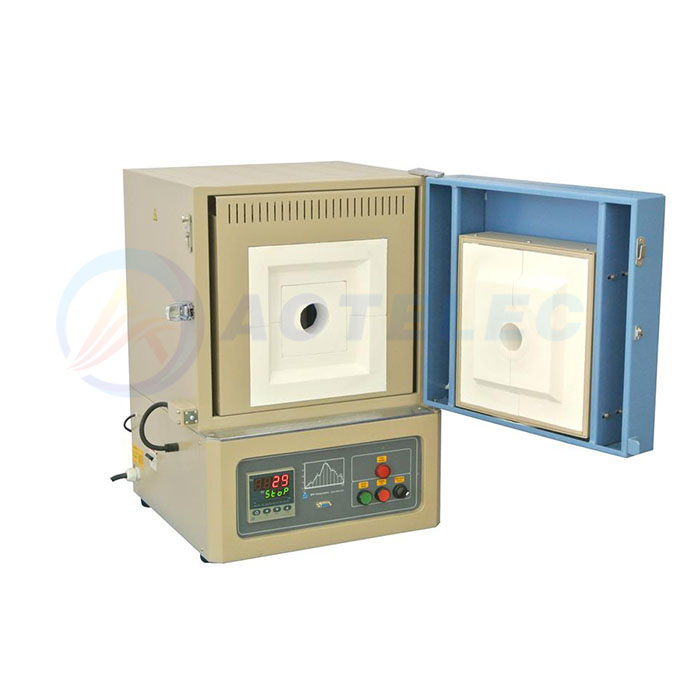

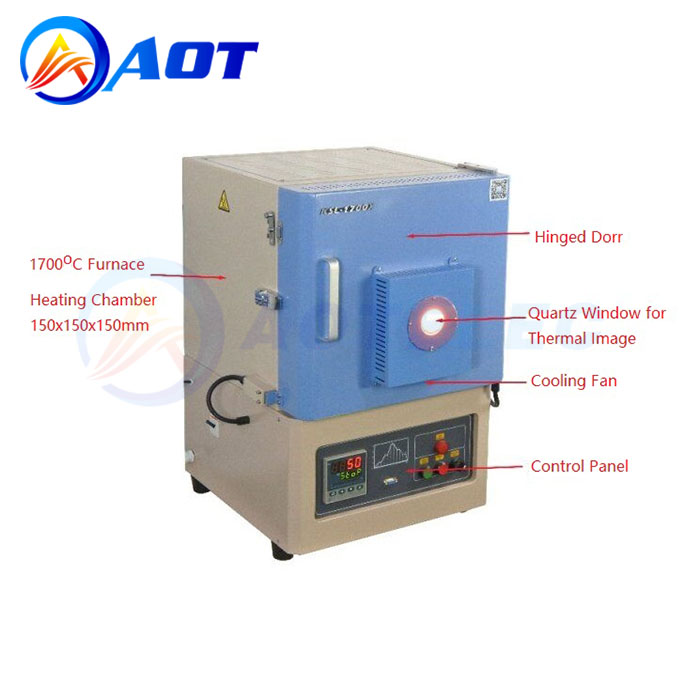

This is a bench-top muffle Furnace with a maximum temperature of 1700°C.Quartz window with 50 mm diameter.The sample can be observed with optical equipment or the like during the heating process.Consists of high-quality alumina fiber insulation and silicon carbide heating elements.

Specification

Power	AC 208V-240V single phase, 50/60 Hz 6 KW
Standard Working Temperature	1600°C
Maximum Working Temperature	1700° C (< 1 hours)
Heating Rate	0 ~20 °C/min ( ≤10°C/min recommended )
Accuracy	+/- 1° C
Thermaocouple	B-type
Inside Chamber Size	150 x 150 x 149mm
Capacity	3.6L
Temperature Controller	Temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port
Heating Element	MoSi2, 4 pcs
Dimension	500 x 490 x 700 mm
Weight	69KG
Furnace Structure	1.Double layer steel structure with air cooling fan to keep the case's temperature below 60°C 2.High purity alumina fiber insulation for max. 3.MoSi2 heating elements 4.50 mm optical grade quartz window
