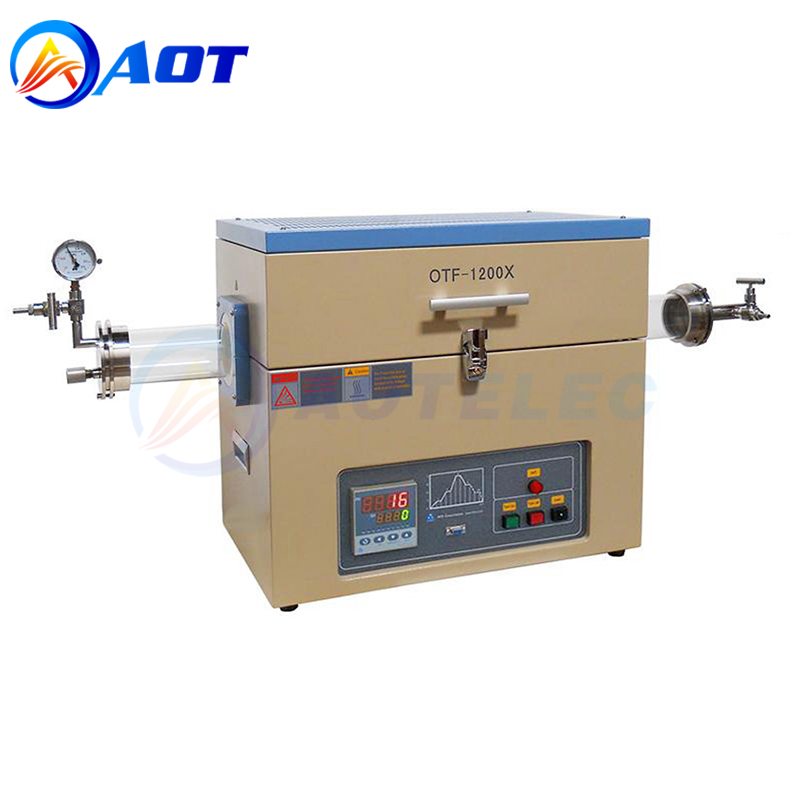

1200C Split Tube Furnace For Laboratory

Product Name : Tube Furnace
Power supply:220VAC, 50/60Hz,Single-phase
Power :3KW
Origin:China
Product description: The Split Tube Furnace temperature is controlled by a high precision digital controller offering 30 programmable segments with a maximum operating temperature of 1200°C.
INQUIRY

The Split Tube Furnace temperature is controlled by a high precision digital controller offering 30 programmable segments with a maximum operating temperature of 1200°C. Available in 60, 70, 80 or 100 mm OD quartz tubes and a pair of needle valves and gauges Stainless steel vacuum-sealed flanges allow heating of samples under vacuum or airflow conditions.

Specification：

Product Name	1200C Split Tube Furnace
Voltage	Input voltage 208 - 240VAC Single Phase, 50/60Hz
Power	3kw
Heating temperature	Max.1200℃
Vacuum heating temperature	1000°C under vacuum
Heating rate	20°C /min Ma
Thermal Couples	K type
Total heating zone length	440mm
Constant temperature zone	150mm
Temperature Controller	1.(PID control) and auto-tune function 2.30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm 3. Temperature control accuracy +/- 1 ºC 4.DB9 PC communication port 5.The software for PC software
Refractory Blocks	Two fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating) Quartz blocks (optional) are ideal for cleaner processing and higher vacuum efficiency.

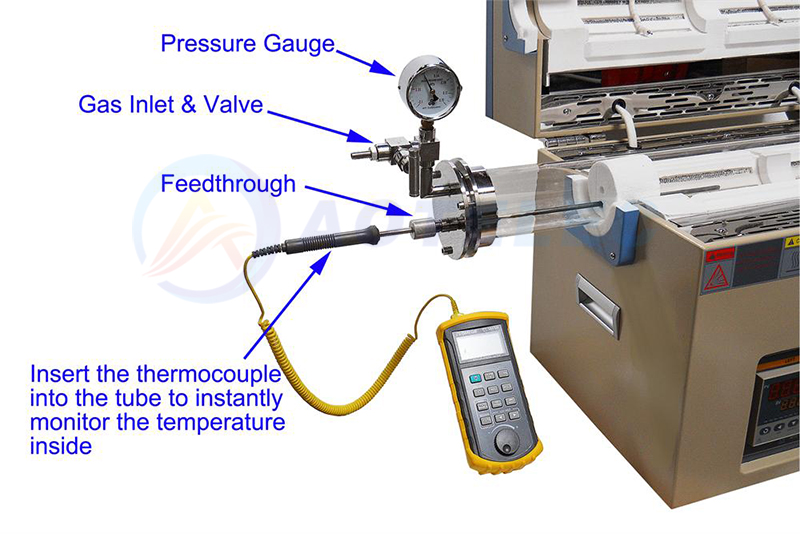

Vacuum Flange	One pair of SS 304 vacuum flange is included Left flange: one thermal feedthrough (for 1/4O.D sheathed thermocouple) one needle valve one mechanical vacuum gauge -0.1Mpa to 0.15Mpa one barb fitting Right flange: one KF-25 vacuum port and one needle valve.
Product Dimensions	Furnace: L590mmW380mmH520mm
Weight	45kg
