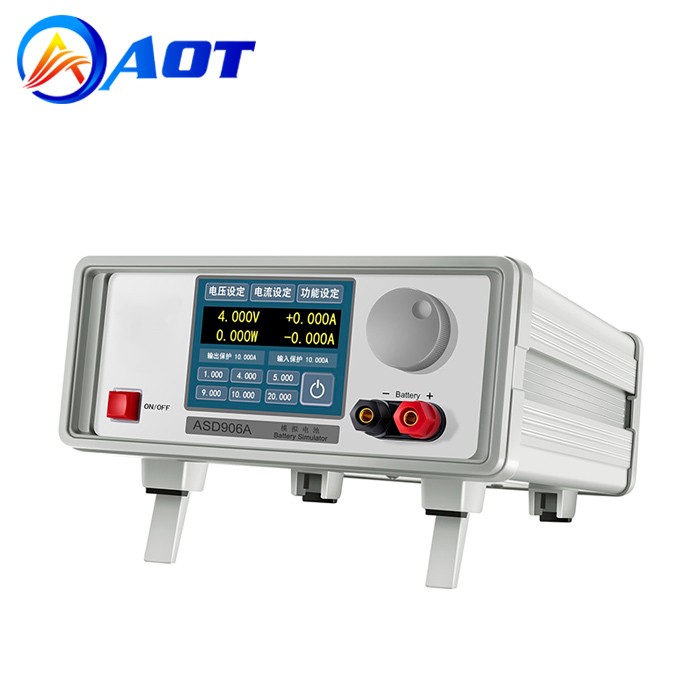

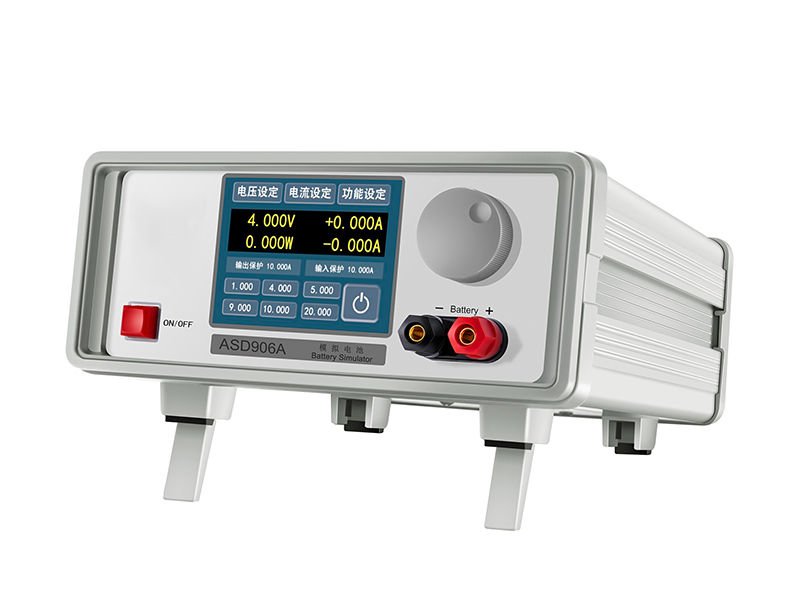

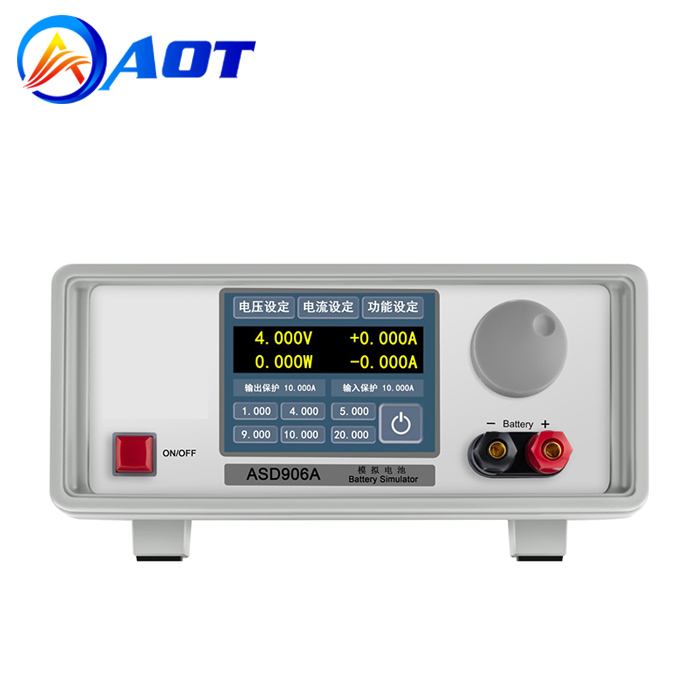

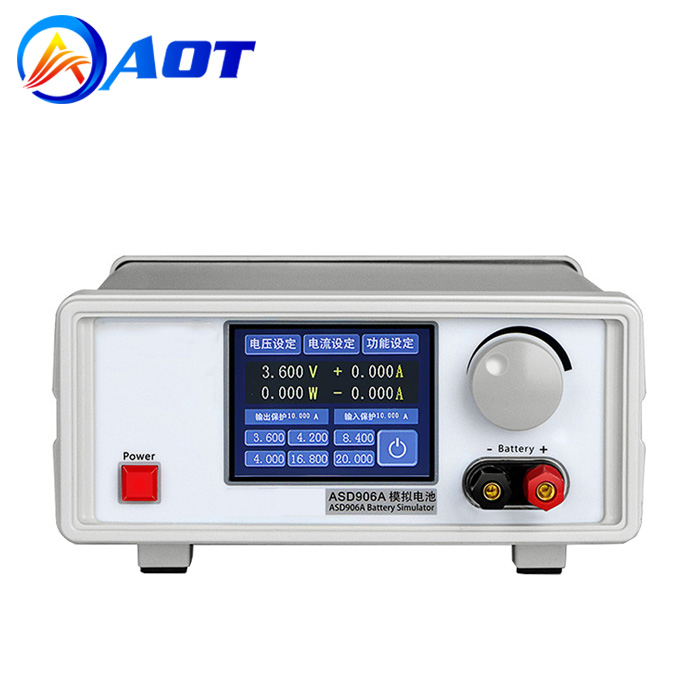

20V10A Battery Simulator/Emulator for Charging and Discharging

20V10A Battery Simulator/Emulator for Charging and Discharging

Model: AOT-ASD906A
Range: 0.1-20V, 0-10A
Resolution: 1mV/1mA
High stability, low noise, low drift
Product description: The Battery simulator/emulator ASD906A analog battery power supply has the function of output power supply and input charging, which can simulate the charging and discharging of the battery. This equi
INQUIRY

ASD906A battery simulator / battery Emulator is ideal for battery charger testing.

Product introduction

The ASD906A analog battery power supply has the function of output power supply and input charging, which can simulate the charging and discharging of the battery. This equipment mainly USES the standard charger, the battery power supply equipment development and the test. It can also be used as a regular adjustable power source. Its output voltage, input and output current protection value can be set.

Features

PCBA standby current can be tested.

It can be switched to the MA voltage when the current is low.

Linear programmable dc power supply;

Quick charge and discharge switching;

High precision and high resolution 1mV/1mA;

Have charge and discharge functions;

High stability, low noise, low drift;

6 sets of voltage setting memory storage function;

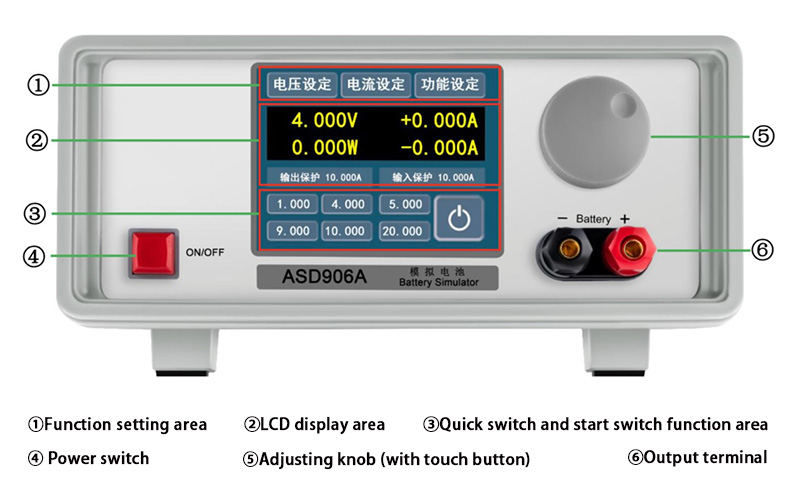

The 3.5-inch touch LCD screen supports direct input of parameters;

The panel function is easy to operate；

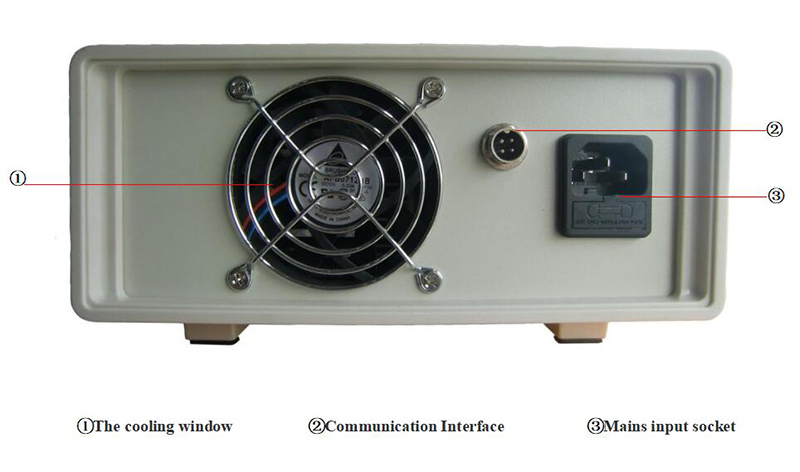

Serial communication version can be selected (baud rate: 115200);

Technical Specifications

Item	Parameter	Specification index
Ouput(discharge)	Voltage	0.1-20V
Ouput(discharge)	Current	0-10A
Input（charge）	Voltage	0.2-20V
Input（charge）	Current	0.1-10V/0-10A10.01-20V/0-5A
Set theResolution	Voltage	0.1-5V:1mV 5.01-20V:5mV
Set theResolution	Current	1mA
AccuracySetting(@25°C)	Voltage	0.1-5V:0.05% +2mV
ReadbackResolution	Voltage	5.01-20V:0.05% +10mV
ReadbackResolution (@25°C)	Voltage	0.1-5.0V:1mV 5.01-20V:5mV
ReadbackResolution (@25°C)	Current	0-5.0A：1mA 5-10A：1.5mA
LoadRegulation	Voltage	0.1-5V:0.05% +2mV
PowerRegulation	Voltage	5.01-20V:0.05% +10mV
Ouput(discharge)	Current	0-5.0A:0.15% +4mA
Input（charge）	Current	5.0-10A:0.15% +6mA
LoadRegulation	Voltage	<0.06%
PowerRegulation	Voltage	<0.05%
Ripple noise	Voltage	5mVp-p
PowerInput	Voltage scope	175Vac~265Vac
PowerInput	Requency range	47-63Hz
TesterSize	HxWxD	104mm211mm256mm
Packing Size	HxWxD	180mm290mm360mm
Weight	NET WEIGHT	2.9Kg
Weight	Total package weight	3.6Kg
