30V10ACharging 20A Discharging Aging Tester Machine For Battery Pack

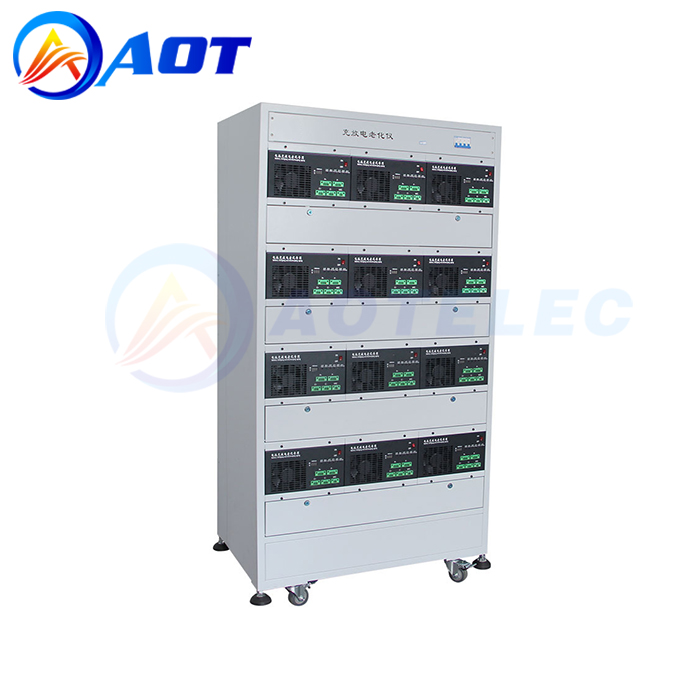

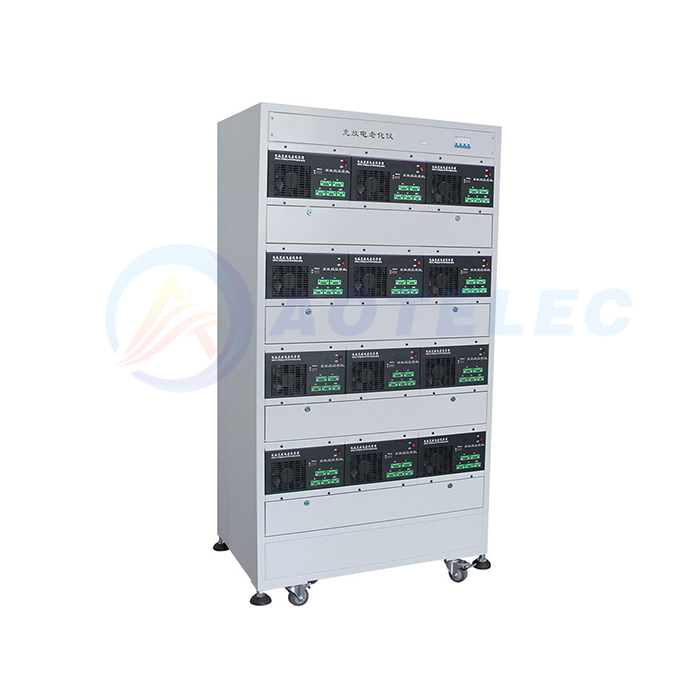

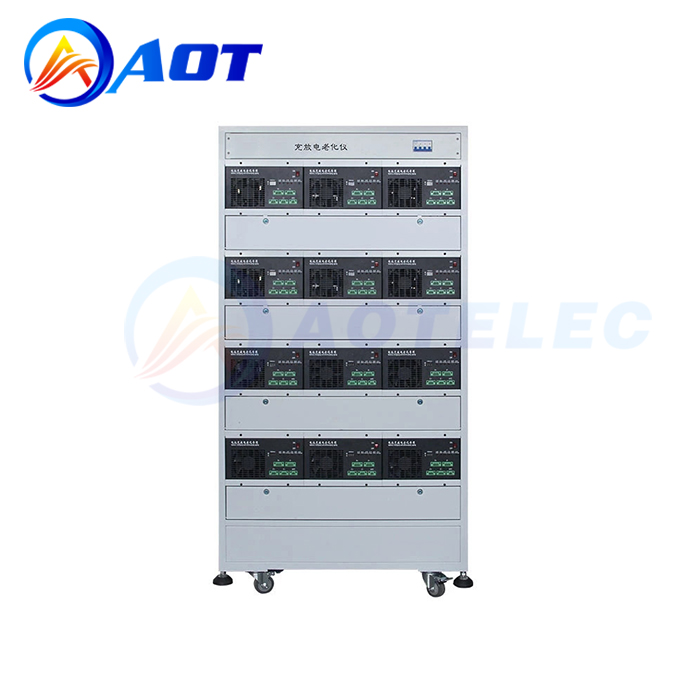

Product Name:Charge Discharge Aging Cabinet
Model:AOT-BCDS30V
Voltage：AC 220V ±10% 50Hz
Origin:China
Product description: AOT-BCDS30V aging cabinet is mainly used for charging and discharging cycle test of lithium battery, charging 10A and discharging 20A.
INQUIRY

AOT-BCDS30V aging cabinet is mainly used for charging and discharging cycle test of lithium battery, charging 10A and discharging 20A.

Test items include: battery charging protection voltage, discharge protection voltage, capacity, etc.;

The equipment has 4 test steps of charging, discharging, shelving, and cycling. By editing the corresponding steps, the battery can be tested according to the set process.

Specification:

Product Name		Charge discharge aging cabinet
Input power		AC 220V ±10% 50Hz
Voltage	Testing range	4.5-30V
Voltage	Accuracy	±(0.2% of reading +0.2% of range)
Electric current	Charging range	50-10000mA
	Charging accuracy	±(0.2% of reading +0.2% of range)
	Discharge range	50-20000mA
	Accuracy	±(0.2% of reading +0.2% of range)
Charge	Constant voltage cut-off current	50mA minimum
Capacity	Accuracy	±1‰
Power	Discharge power	≤600W
Time	Inspection time	Receive real time <2S
Time	Timing range	0-999 hours/step
Data logging interval	≥5S

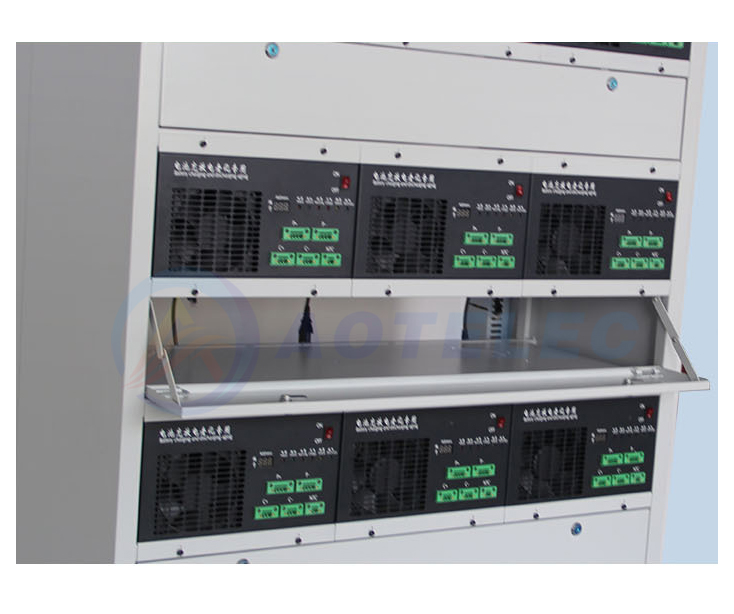

Number of cabinet channels	12 channels, 4 rows and 3 columns
Charge	Charging mode	Constant current and constant voltage charging
Charge	Cut-off condition	Voltage, current, relative time, overcharge protection.
Cycle	Cycle test range	1-999
Cycle	Number of single cycle steps	100
Voltage and current detection sampling	Four-wire sampling
Database	Use SQL database to manage test data
Host computer communication method	Based on TCP/IP protocol, serial port
Data transmission mode	EXCEL,TXT,Chart
Communication interface	Network port
Cabinet size	L960D600H1900mm
Battery space size	L900D600H130mm
Case size	L300D450H170mm
