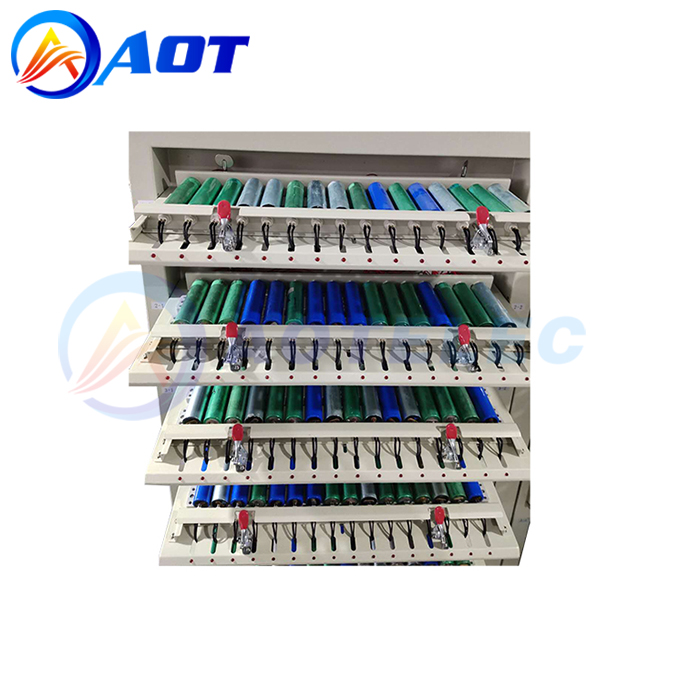

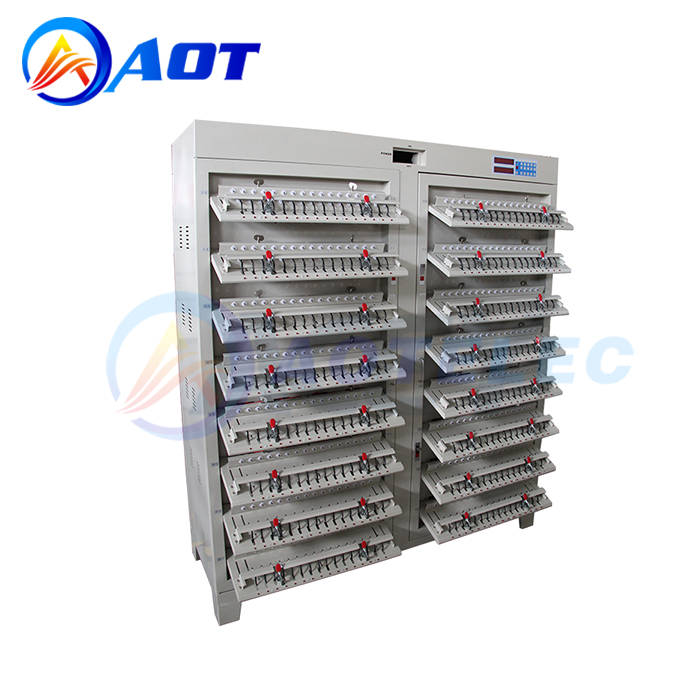

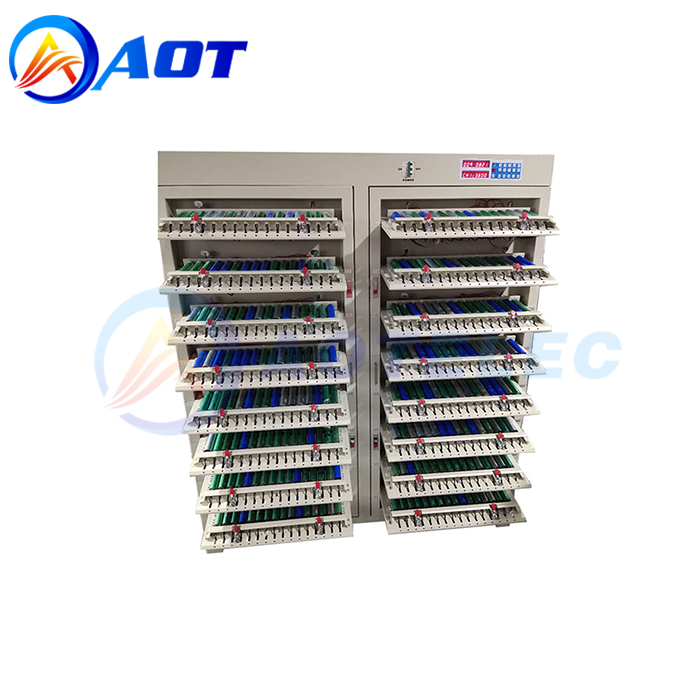

5V2A 512 Channel Li-Ion Battery Charging Discharging Tester

5V2A 512 Channel Li-Ion Battery Charging Discharging Tester

Product Name: Cylindrical Battery Cell Tester
Clamp Spacing: 35mm
Current Range: 0.3A-2A/3A/5A/6A
Model Number: AOT-BT512-2A
Product description: Battery cell tester machine is used when the lithium battery is finished in the production workshop, the battery capacity will be different. Qualified batteries will be screened out through the capaci
INQUIRY

Battery cell tester machine is used when the lithium battery is finished in the production workshop, the battery capacity will be different. Qualified batteries will be screened out through the capacity testing.

Features:

1.Scope of application: Capacity and detection of chemical components of lithium polymer, lithium ion, ni-MH and ni-Cd batteries.

2.Vertical and horizontal.

3.Current Range: 2A/3A/5A/6A/10A for options

4.Channels:128/256/512 channels for options

Product Name	Cylindrical battery cell tester
Number of device channels	96/128/256/512 channels
Size (width * depth * height) cm	14350184/16055184
Frame color	Creamy white
Clamp form	35MM
Fixture center distance	Cylindrical four-wire fixture
working power	Three-phase five-wire system AC380V±10%, 50HZ
Working power dissipation	≤9KW
Work environment	Temperature 0-40 degrees, relative humidity ≤80%
software function
Control mode	Computer connection equipment work, FCL control
Communication mode	RS485 baud rate 57,600
Process set	A maximum of 32 work steps and 256 cycles
Charging mode	Constant current, constant pressure
Discharge cut-off condition	Voltage, time, capacity
Charging cutoff condition	Voltage, current, time, capacity
Discharge	Constant current
Defensive function	Over voltage, under voltage, over current, undercurrent, overcapacity, etc
Time range	Set it anywhere from 0 to 30,000 minutes
Battery sorting	By capacity, time, discharge platform, etc
Data processing	Data, graphs, and loop diagrams
