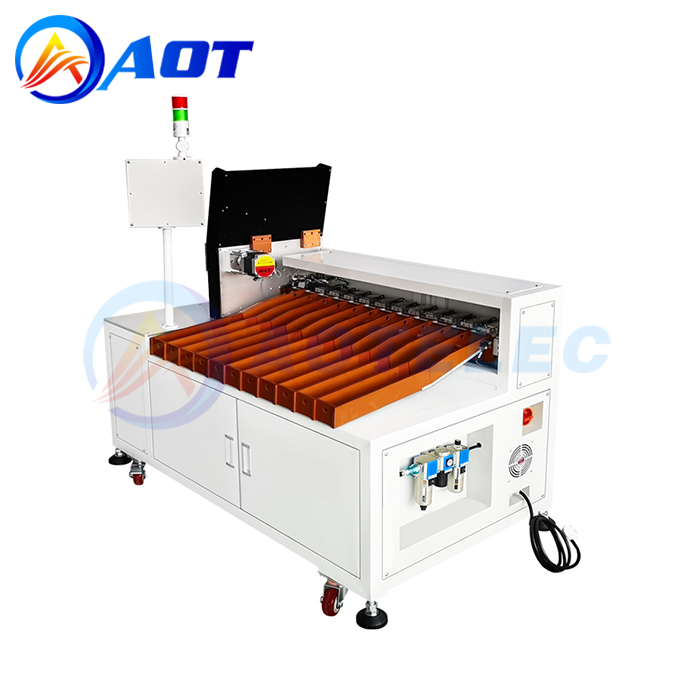

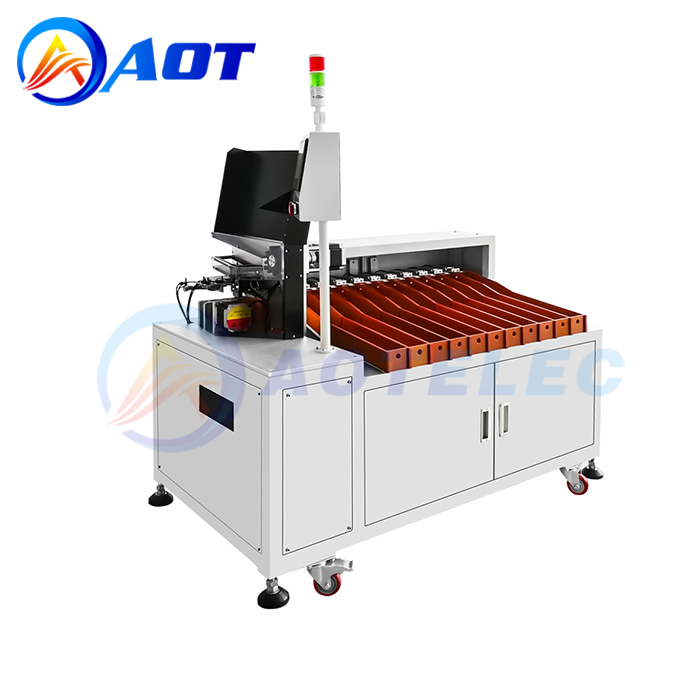

11Channels Automatic Cylindrical Battery Sorting Machine For Lithium-ion Battery Pack Assembly

  • Model Number:AOT-FX-11A
  • Product Name:Lithium Battery Sorting Machine
  • Input Voltage:AC 220V+10% 50Hz
  • Work efficiency:4500pcs- 5000pcs 1H
  • Product description: 11 Channel Automatic Cylindrical Battery Sorting Machine for Battery Pack Assembly Line, suitable for kinds of cylindrical batteries such as 18650 and 26650, 32650 ,21700 cells.
  • INQUIRY

11 Channel Automatic Cylindrical Battery Sorting Machine for Battery Pack Assembly Line, suitable for kinds of cylindrical batteries such as 18650 and 26650, 32650 ,21700 cells.


1With high precision internal resistance, voltage, automatic test system.

2The device can accurately send the cell to the specified gear according to the set internal resistance voltage value.

3Large hopper, can put 500pcs cells at one time, high efficiency.

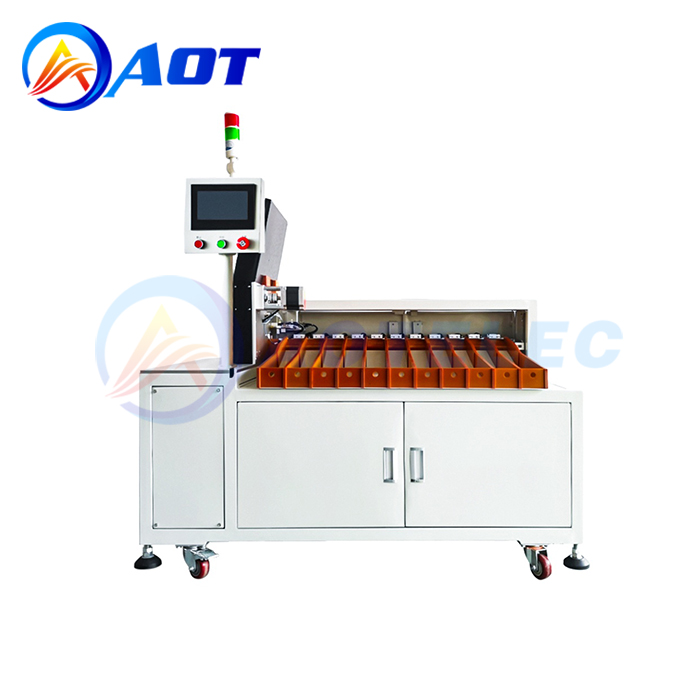

4simple and clear operation interface, easy to operate, humanized design, easy to master.

5Scope of application: cylindrical lithium battery

6The sorting speed is fast, the stability is high, and the consistency of cells in each channel is effectively screened out.

7It can be used in conjunction with the automatic highland barley paper machine, greatly saving labor.


Product name

1 1-channel lithium battery Sorting machine

Model

AOT-FX-11A

Control system

Touch screen +PLC programmer

Input voltage

AC 220V+10% 50Hz

Feeding mode

Double position whole box feeding

Equipment air pressure

0.6~0.8Mpa

Work efficiency

4500pcs- 5000pcs 1H

Sorting speed

80-100PPM

Scope of application

Cylindrical lithium battery

(model can be customized)

Size(LxWxH)

1520x770x1680mm

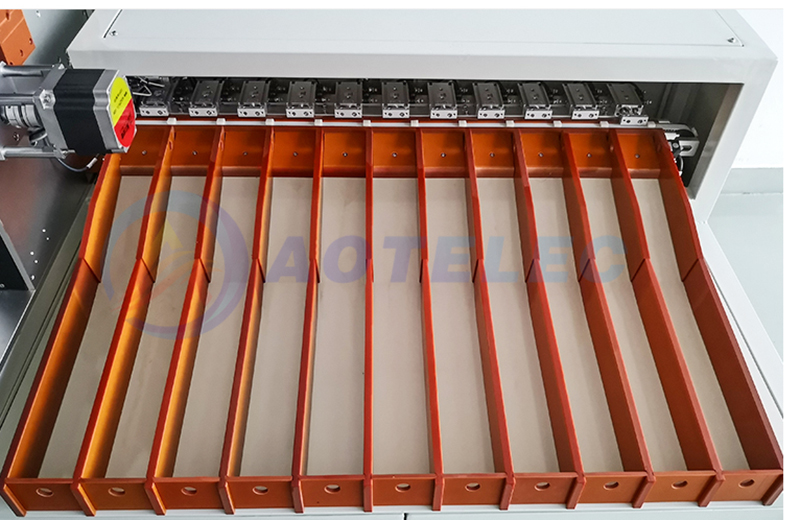

Receiving channel

10 sorting group channels, including one unqualified channel

Voltage measurement accuracy

Range 0-20V, basic accuracy +0.01 %rdg, resolution 0.1mV

Internal resistance detection accuracy

Range 0-30mQ accuracy 0.5%rdg, resolution 0.1mQ
