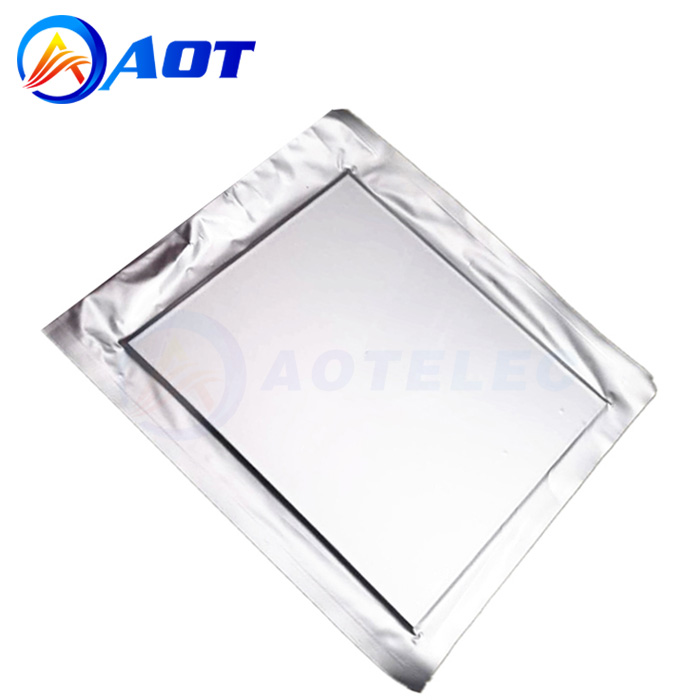

Aluminum Foil Coated with NCM523 Cathode Electrode Sheets

Model: AOT-CES-NCM523
Material: Aluminum Foil Coated with NCM523
Origin: China
Packing: 5pcs/bag
Product description: The aluminum foil of the cathode electrode is coated with NCM523. Packing: 5pcs/bag.
INQUIRY

Al Foil Coated with NCM523 Cathode Electrode Sheets

The aluminum foil of the cathode electrode is coated with NCM523.

Packing: 5pcs/bag.

Note: The supplier does not provide active material: binder: conductive agent ratio data, related experimental parameters are not provided, please be careful

Technical Parameter
Size: LWT mm (thickness after rolling)	Single-side graphite coated	2412000.055
Size: LWT mm (thickness after rolling)	Double-side graphite coated	2412000.103
Area density (g/m2)	Single-side graphite coated	122.5
Area density (g/m2)	Double-side graphite coated	245
Active substance (g)	Single-side graphite coated	4.85
Active substance (g)	Double-side graphite coated	9.72
Gram capacity	Single-side graphite coated	155
Gram capacity	Double-side graphite coated	155
