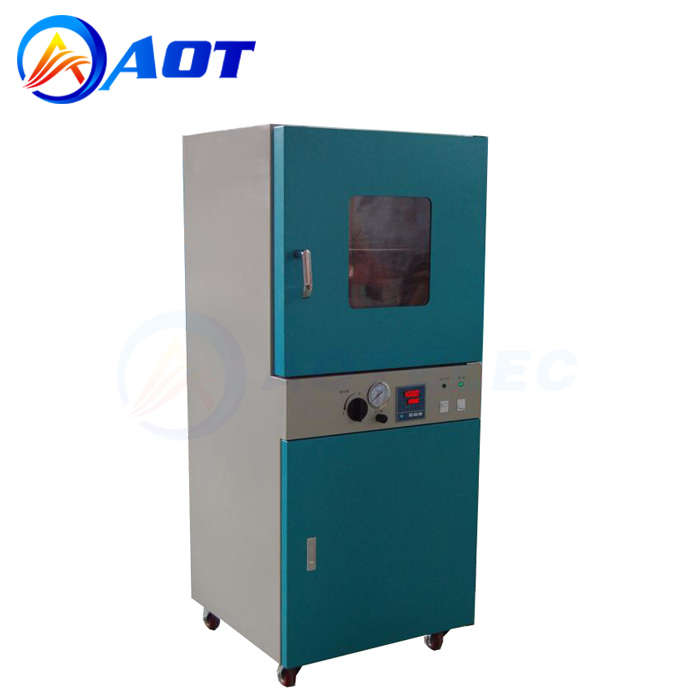

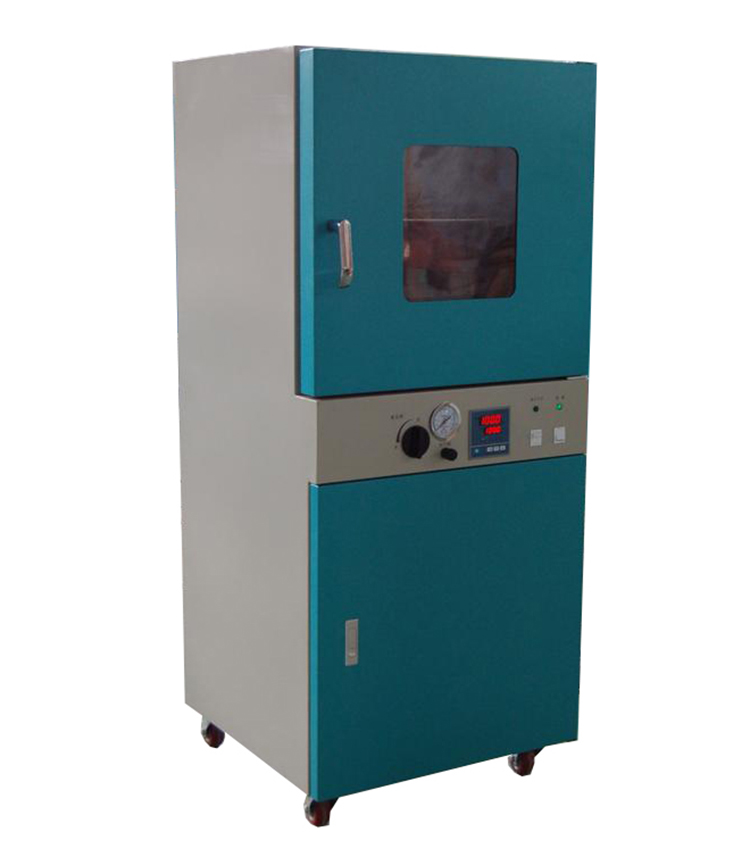

90L Heating Chamber Vacuum Drying Oven DZF-6090 with Pump

Model: AOT-DZF-6090
Inner size: 450*450*450mm
Material: Stianless steel
Warranty: 1 Year
Product description: 90L Small Heating Chamber Vacuum Drying Oven DZF-6090 Built in Pump, It Is An Ideal Equipment for Lab Materials Baking.
INQUIRY

1.Cuboid Studio to achieve the maximum of effective volume, temperature control precision and reliable by the microcomputer temperature controller. With tempered bullet-proof double glass door, easy for observe the studio at a glance.

2.Tightness of the chassis door completely arbitrary regulation by the user, the overall shape of the silicone rubber door seals, to ensure a high vacuum degree.

3.Chamber is made of stainless steel (or wire-drawing sheet), which ensure durability.

4.The storage, heating, experimentation, drying will be implemented in the environment without oxygen or filled with inertia gas. Therefore it will not be oxidized.

5.Minimum heating time 50% less than traditional vacuum oven.

Model	DZF-6090 Vacuum Drying Oven
Source voltage	AC220V 50HZ
Power	1400W
Warranty	One Year Limited Manufacture Warranty with Life Time Support
Temperature range	RT+10-250℃
Temperature fluctuation	0.1℃/±0.5℃
Vacuum degree	-0.1MPa
Inner box size(LWH)	450450450mm
Dimension(LWH)	6155901470mm
Temperature controller	1 High precision microcomputer temperature controller, accurate temperature control 2 Working temperature can be set and working time can be set for 0-9999min. 3 When time reach, sound alarm, and when any error, also alarm. function
Inner box material	304 stainless steel
Outside shell material	High quality cold-rolled steel plate electrostatic spray
Box door	Toughened bulletproof double glass door
Safety device	With over temperature protection, grounding etc
Shelf	2 or3pcs 1. Solid stainless steel shelf, guarantee the oven temperature 2. Mesh stainless steel shelf can be also chosen
Ambient temperature	+5~40℃
