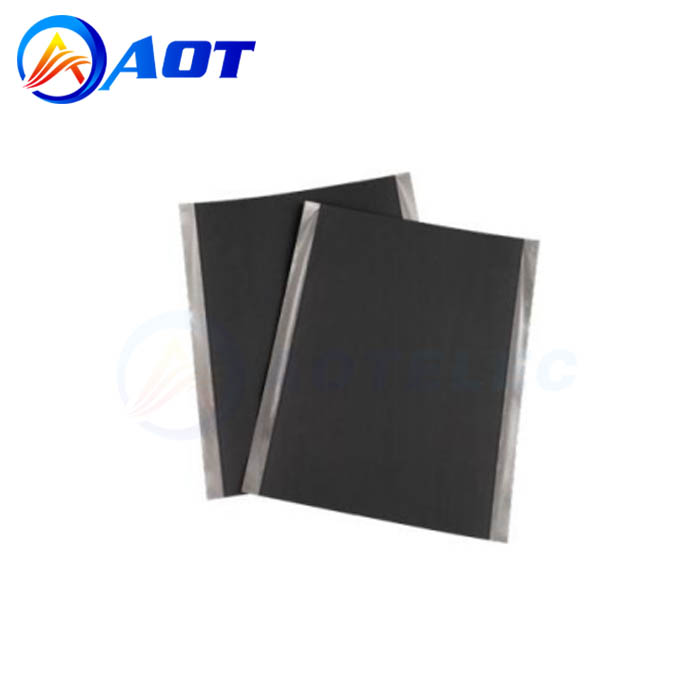

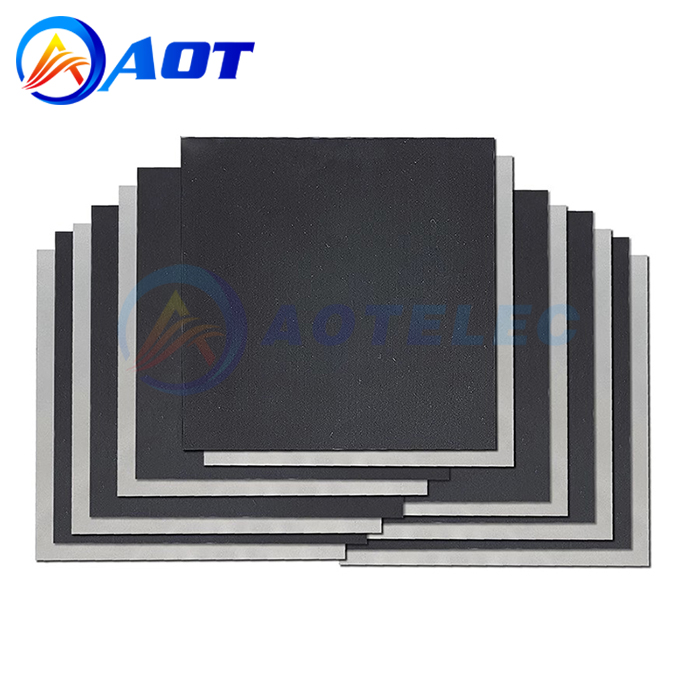

NFM(Sodium Nickel Iron Manganese Oxide) Double Side Coated Aluminum Foil

Product Name:Double Side Coated Aluminum Foil
Size：241mm L x 200mm W
Brand Name. AOT
Product Orgin:China
Product description: Sodium battery positive electrode sheet, nickel iron manganese oxide sodium double-sided electrode sheet
INQUIRY

Overview: Sodium battery positive electrode sheet, nickel iron manganese oxide sodium double-sided electrode sheet

Main Parameters

Item	Parameter
Size	241mm L x200mm W
Coating area	241mm Lx 175mm W(each side blank 12.5mm)
Coating side	Double side coating
Current collector thickness	16μm
Coating surface density	29±0.4mg/cm2
Aluminum Foil surface density	4.22mg/cm2
Tap density	2.8±0.1g/cm3
Active substance mass fraction	95.5%
Reference specific capacity	110mAh/g
Full-cell voltage platform	1.5-4.0V
Calculation of active substance mass	Coating surface density * proportion of active substance * electrode size
Matters need attention	After opening the electrode sheet, please seal and store it. Can be stored in a 60 ℃ oven or glove box. The sheet is prone to water absorption and should be kept in contact with regular air for as little time as possible

Reference for double-sided electrode sheet process for pouch cell

Process flow	Reference parameter
Capacity setting	Capacity per gram * Single piece area * Coating surface density * Proportion of active substance
Electrode cutting	Punch and cut fixed size positive and negative electrode pieces
Stacking	According to the designed number of layers for the electrode sheet, stack them together
Hot pressing and micro short circuit testing	Hot pressing time 2 minutes, temperature 45 ℃
Tab welding	Positive electrode welded aluminum tab, negative electrode welded aluminum tab
Forming	Aluminum laminated film with appropriate depth and fixed size
Top and side sealing	Pre-treatment of pouch batteries
Cell baking	Temperature 80 ℃, time 12 hours
Electrolyte filling	Inject a certain amount of electrolyte
Vacuum pre-sealing	Pouch cell pre-sealing
IR testing	Test voltage and internal resistance
Aging	Temperature 45 ℃, time 12 hours
Formation	Small current formation
Aging	Temperature 45 ℃, time 12 hours
Final sealing	Extract internal gas from the battery and vacuum seal it
IR Test	Test voltage and internal resistance
Grading	Confirm the capacity
