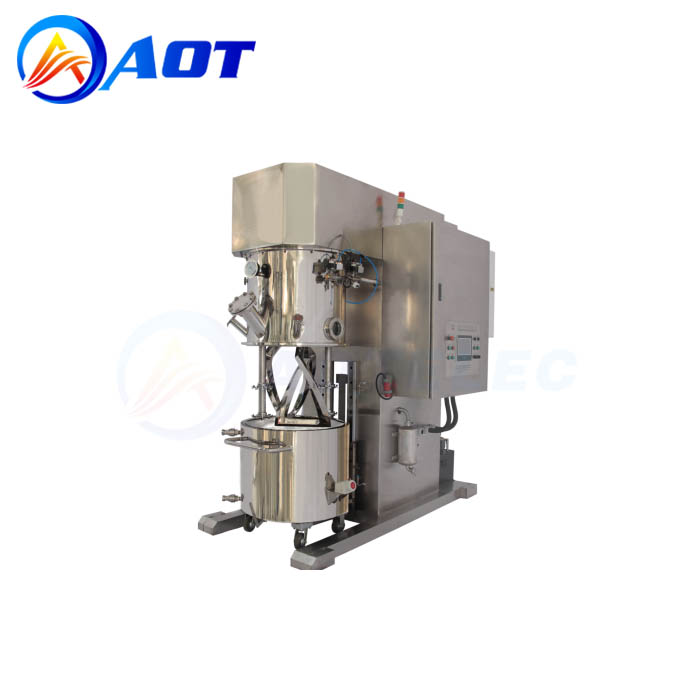

The planetary power mixer integrates working principles of conventional dual planetary mixers and high-speed dispersers to form an all-purpose upgraded model widely applied across multiple industries.
Tailored for lithium battery slurry featuring high solid content and high viscosity, our enhanced planetary power mixer is upgraded from standard versions with higher rotating speed and larger torque. Its design optimizes key parameters including agitator rotation speed, mixing power, dispersion linear velocity, suspension grade, liquid flow pattern and turbulence distribution inside the tank. The maximum linear speed of high-speed dispersion reaches 19m/s, and the reinforced twisted frame agitator handles ultra-high-viscosity battery slurry efficiently.

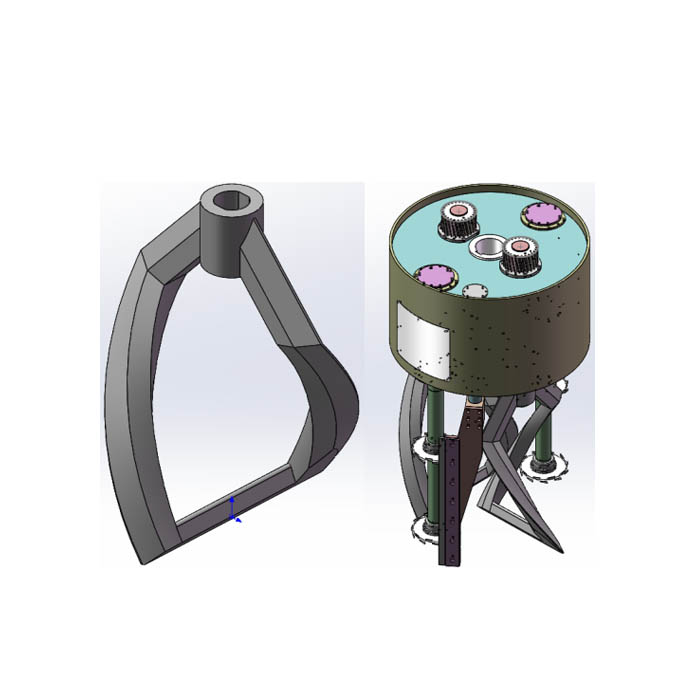

Unique mixing motion: the twisted frame revolves clockwise and rotates counter-clockwise on its own axis to realize dead-zone-free mixing and eliminate material climbing. Sealing system consists of double mechanical seals plus soft/static auxiliary seals, boosting sealing performance by 30% theoretically. A Pt100 temperature sensor directly contacts materials for precise temperature detection with a measuring error within ±1℃. The unit is composed of base, crossbeam, upright column, sealing hood, mixing tank, transmission and electric control system.
1. Equipment Technical Parameters
No. | Item | Specifications & Parameters |
1 | Vacuum degree | -0.098Mpa; Static vacuum holding: ≥-0.085Mpa after 4-hour static state; equipped with automatic pressure compensation to replenish vacuum below preset value |
2 | Structure | Cantilever type |
3 | Rotating Speed (r/min) | Revolution: 0～39r/min, autorotation: 0～72r/min (variable frequency speed regulation); High-speed shaft: 0～3650r/min (VFD adjustable, speed calibration available) |
4 | Low-speed shaft | Dual twisted-blade shafts with wall scraper assembly |
5 | High-speed shaft | Dual high-speed dispersion shafts, each fitted with two Φ100mm dispersion discs |
6 | Lifting mode | Hydraulic lifting, hydraulic motor: 0.75KW |
7 | Lifting stroke | 500mm |
8 | Temperature measurement | Tank wall temperature sensing |
9 | Tank positioning | Conical locating blocks for tank positioning plus flange structure on tank cover for precise centering |
10 | Total Power | 20kW |
11 | Power Supply | 3-phase AC 380V, 50Hz |
12 | Overall Dimension | L1800×W1150×H2100 (mm) |
13 | Net Weight | Approx. 1700kg |
2. Mixing Tank
No. | Item | Specifications & Parameters |
1 | Tank Size(mm) | Inner diameter × inner height: Φ500×450mm, 300-grit internal & external polishing |
2 | Volume | Design volume:88L, Working volume:60L |
3 | Design Pressure | Inner tank: -0.098Mpa; Jacket:0.7Mpa |
4 | Design Temperature | -10℃ ~ +200℃ |
5 | Main Material | Product-wetted part: SUS304; Jacket: SUS304; Tank bottom: SUS304+Q235-B |
6 | Tank Thickness | Inner tank: δ5mm (actual machined thickness); Jacket: δ4mm |
7 | Temperature control | DN20 cooling water inlet/outlet; full jacket on tank body & bottom for enlarged heating/cooling area |
8 | Temperature detection | Wall-mounted temperature probe with quick-plug signal transmission to temperature controller |
9 | Discharging | 1.5" ball valve at tank bottom, anti-residue outlet design |
10 | Movement | Manual moving with 4 heavy-duty casters (2 fixed + 2 swivel) |
11 | Tank Qty | 1 set |
Remark: Tank inner & outer surface 300-grit polished; partial paint coating on tank bottom | ||
