Battery Simulator For Battery Charging and Discharging

Battery Simulator For Battery Charging and Discharging

Product Name;Battery Simulator
Model:AOT-ASD906B
High stability, low noise, low drift
Origin:China
Product description: AOT-ASD906 B analog battery power supply has output power supply and input charging functions, which can simulate battery charging and discharging.
INQUIRY

AOT-ASD906 B analog battery power supply has output power supply and input charging functions, which can simulate battery charging and discharging. This equipment is mainly used for the development and testing of chargers and battery-powered equipment. It can also be used as an ordinary adjustable power supply. The output voltage and input and output current protection values can be set.

Features

Can detect PCBA standby current;

With charging and discharging functions;

Fast charge and discharge switch;

High stability, low noise, low drift;

6 groups of voltage setting memory storage function ;

High precision and high resolution 1mV/1uA;

When the current is small, it can be switched to the MA gear, and the μ A level value will be displayed ;

It can visually display the curve relationship of voltage and current with time during the test;

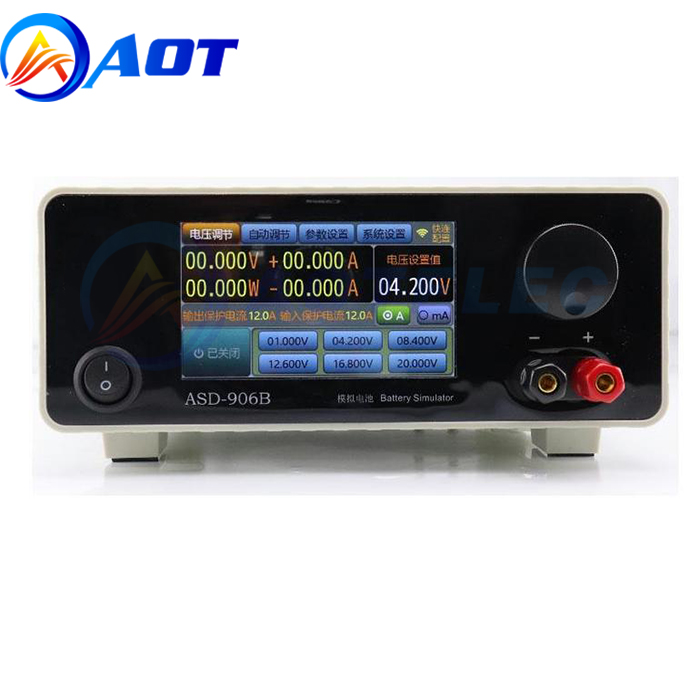

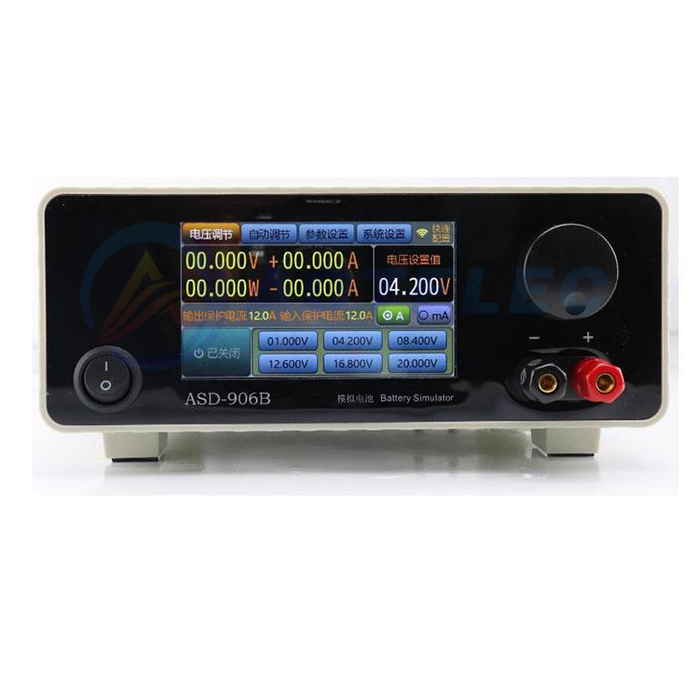

4.3 inch touch LCD screen, support direct input of parameters ;

Support manual debugging interface, easy operation of panel functions;

It can be controlled by a PC, and can set a continuously changing dynamic voltage;

Optional serial communication version (baud rate 115200);

Wide power supply, suitable for 100~240V AC;

Technical specifications :

Name		Analog battery
Model		ASD906B
Number	Types		Project	Parameter
1	Output (discharge)		Voltage	0. 1 ~20V
			Current	0~12A
2	Input (charging)		Voltage	0.2~20V
			Current	0~1 2 A
3	Set the resolution		Voltage	1mV
			Current	1mA / 1uA
4	Setting accuracy		Voltage	0.05%+2mV
5	Readback resolution		Voltage	1mV
			Current	0.01~1 2 A : 1mA ; 0~0.01A : 1uA
6	Readback accuracy		Voltage	0.05% +2mV
			Current	0.15% +4mA
7	Hello Elena		Voltage	<0.06%
8	Power regulation rate		Voltage	<0.05%
9	Ripple		Voltage	Max100mV
specification
1	Equipment size		Power supply	220mmD220mmW102mmH
2	Package dimensions		Outer box	290 mmD3 60 mmW 180 mmH
3	Weight		Net weight	2.7Kg
			Total packaging weight	3. 4 Kg
Supplementary features
1	Grid input		Voltage	100~240V ac
			Frequency	47~63Hz
2	Cooling method		Fan	60mm60mm20mm
3	Temperature		Operating environment	0 to 40 °C
			Storage environment	-20 to 70 °C
4	Use environment: indoor use design, the maximum humidity is 80% , and the instrument has no condensation.
