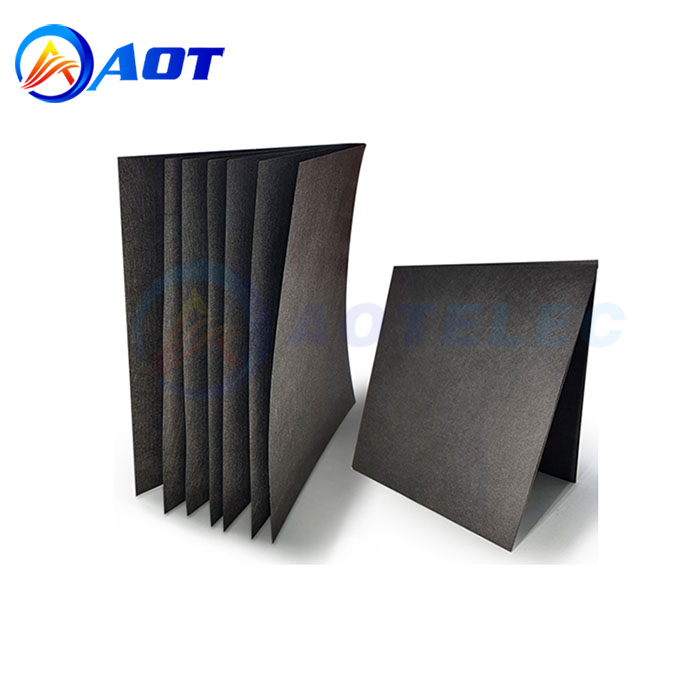

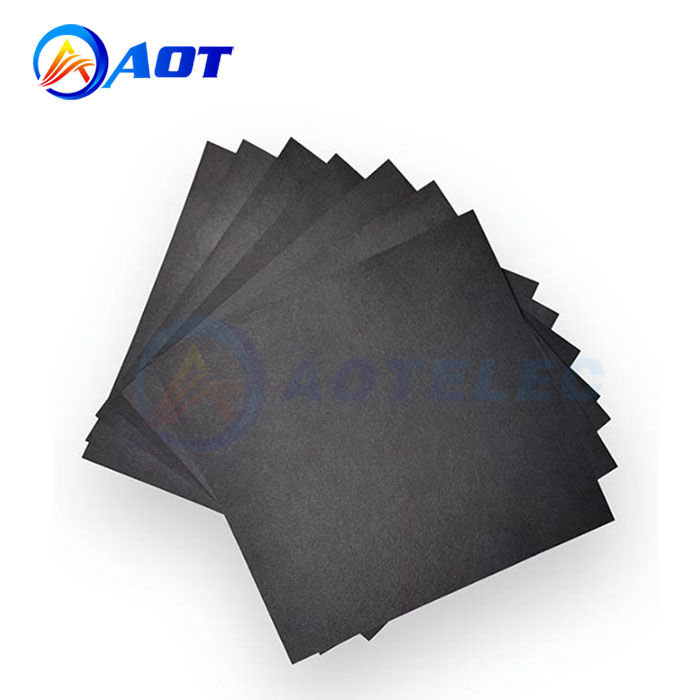

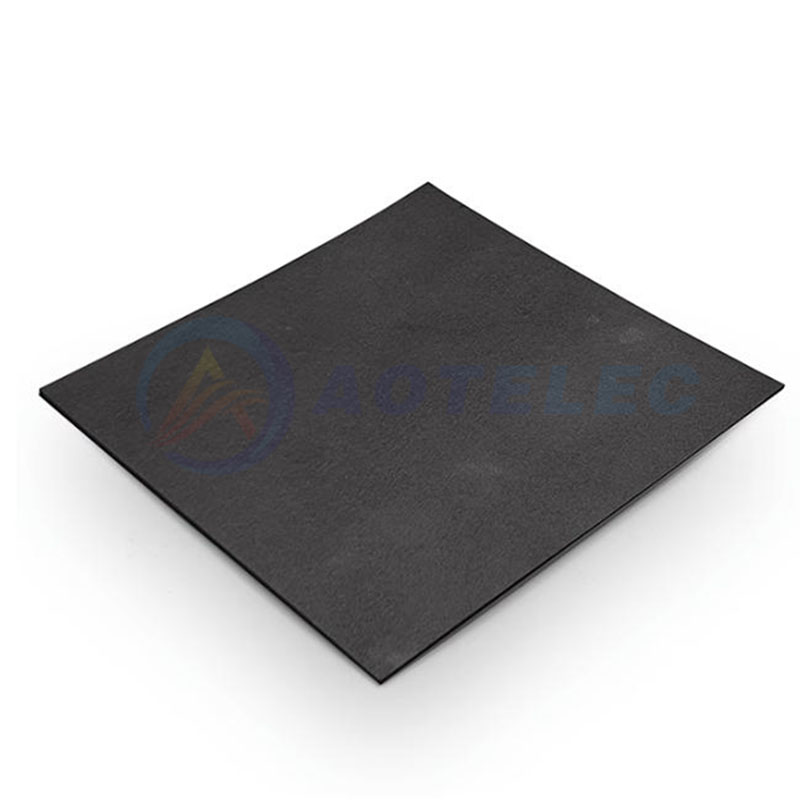

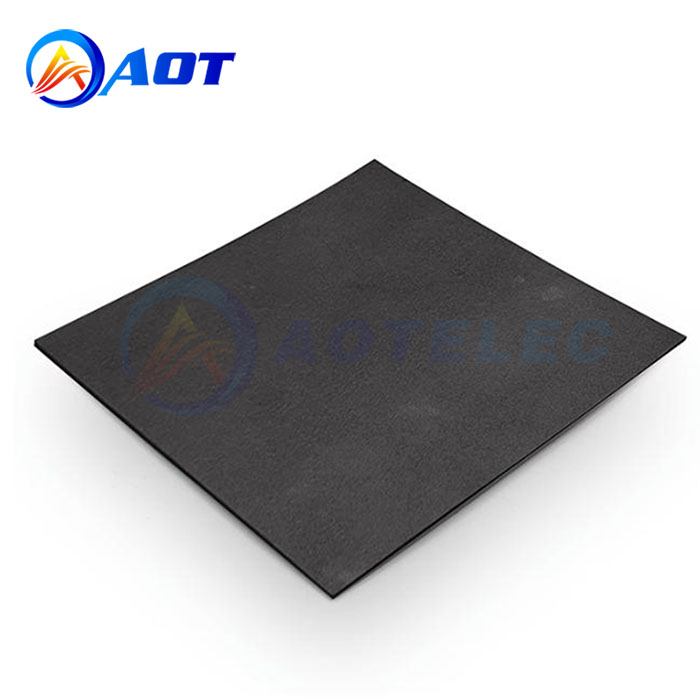

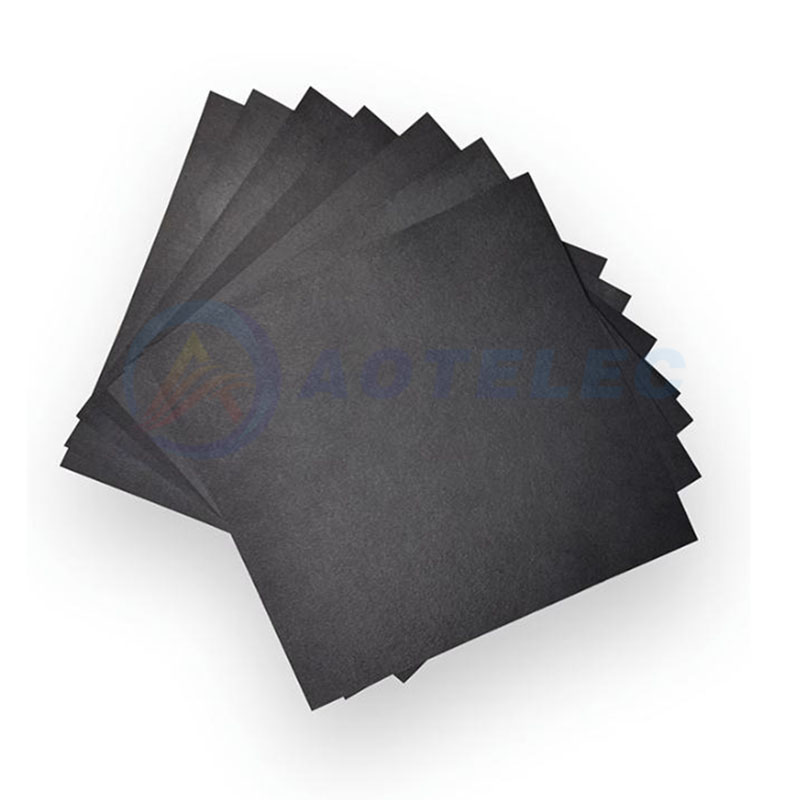

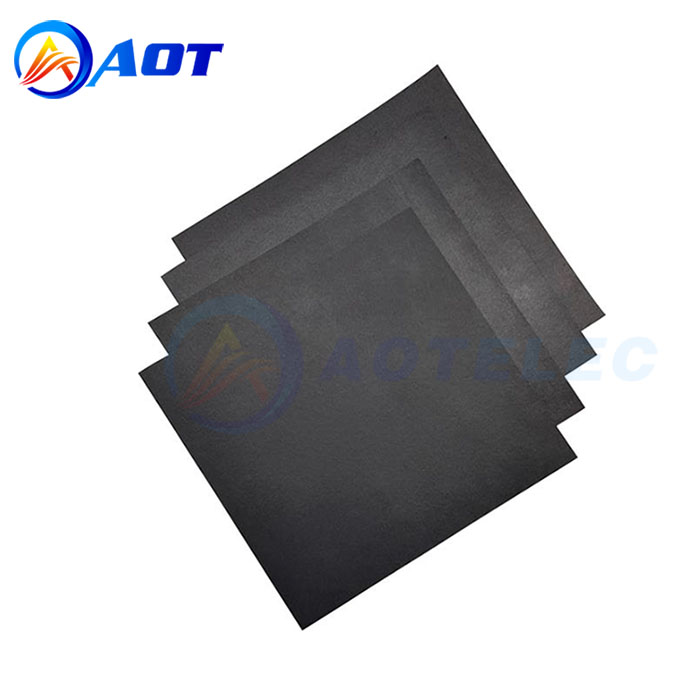

Black Conductive Activated Carbon Paper For Lithium Battery

  • Product Name:TORAY Carbon Paper
  • Thickness:0.19
  • Colour:Black
  • Product Orgin:China
  • Product description: The carbon paper susbtrate has a thickness of 190 um (microns) and the MPL has a thickness of 60 microns. This product has a total thickness of approximately 250 microns. Toray Paper 060 has a PTFE tr
  • INQUIRY

Toray Paper- TGP-T-060 - is a carbon fiber composite paper suitable for use as a catalyst backing layer for fuel cells,electrolyzers, batteries, and various other electrochemical devices after applying a microporous layer (MPL) onto it. The carbon paper susbtrate has a thickness of 190 um (microns) and the MPL has a thickness of 60 microns. This product has a total thickness of approximately 250 microns. Toray Paper 060 has a PTFE treatment of approx. 8-9% and the MPL has a PTFE content of approx. 33-35%. Toray Paper 060 with MPL is a great low-cost alternative to conventional woven carbon cloth Gas Diffusion Layer (GDL) materials. Toray Paper 060 has a standard PTFE wet proofing (which is 8-9%).


Model

TGP-H-030

TGP-H-060

TGP-H-090

TGP-H-120

Thickness

0.11

0.19

0.28

0.37

Power resistance value
(mΩcm)

Thickness direction

80

80

80

80


One-sided direction

5.8

56

4.7

Thermal conductivity
WI(m·k)

Thickness direction (room temperature)

-1.7

-1.7

-1.7


Single direction (room temperature)

21

21

21


Single direction (100)

23

23

23

Gas permeability ml·mm/(cm·hr·mmA q)

2500

1900

1700

1500

Porosity (%)

80

78

78

78

High density (g/cm3)

0.4

0.44

0.44

0.45
