Power

1. 110 - 240V AC (50/60Hz) NRTL certified power adapter for worldwide use

2. 24V DC motor with reducing gear, 15W. The operation is very safe without NRTL certification

Position

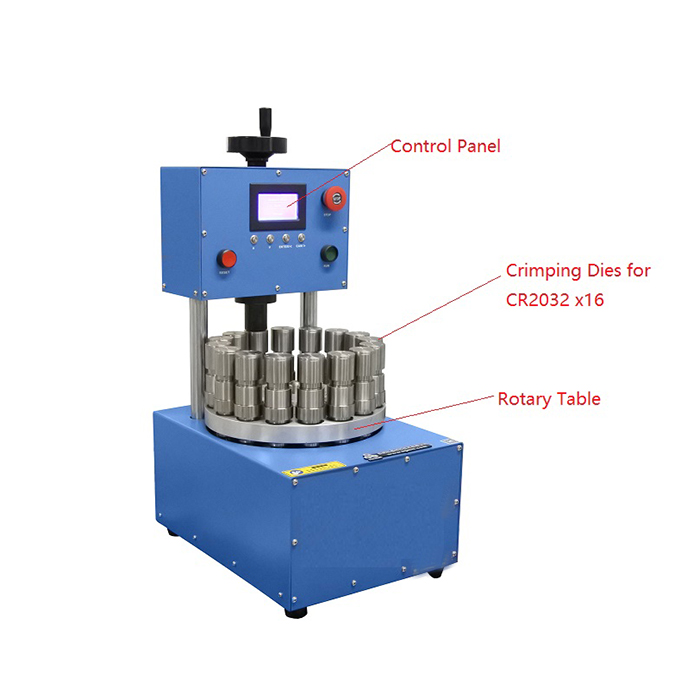

1. One rotary table is driven by an electric motor as a program

2. 16 positions for 16 coin cell crimping die in one single run

3. Automatically crimp 16 cells by touching one button.

Die Set & Compatibility

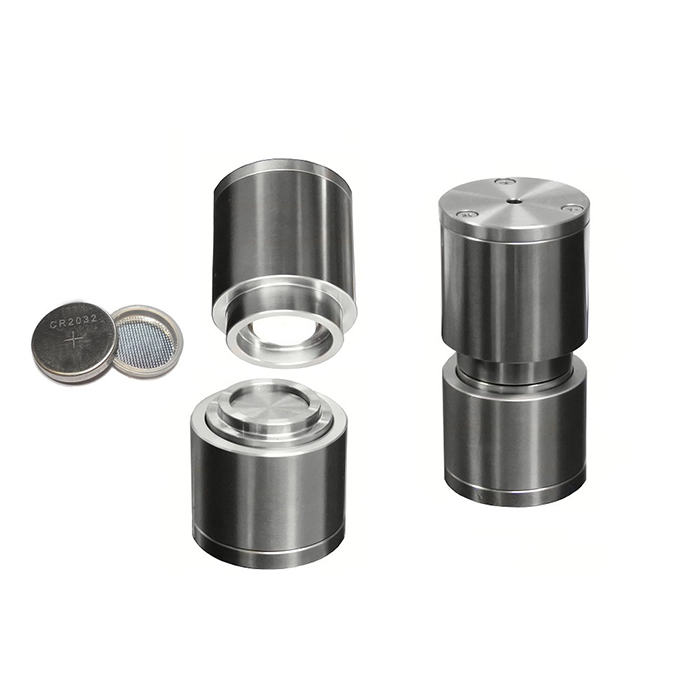

Assembling die (made of hardening steel) for crimping CR2032, CR2025, & CR2016 coin cells (Optional CR2325, CR2450 die sets are available upon request).

160 pcs CR2032 cases are included in the package for immediate testing

Pressure

A built-in load cell with a digital display for pressure measurement and control

The device is Ar gas compatible and used inside the glovebox

Pressure adjustment range: 0 - 1.5 metric tons

Recommended assembling pressure for CR20XX coin cells should be over 0.8T for CR2032 cases. Please find the desired pressure by experiment

Production Dimension

420 mm L x 300 mm W x 620 mm H

Compliance

CE

Application Notes

Such a compact coin cell crimper is suitable for use in the glove box with Ar atmosphere where Lithium-Sulfur, Lithium Air, Lithium Solid-State, or Li-ion half cell will be assembled.

Please use a vacuum pen to pick the electrode disk to make assembling easy
