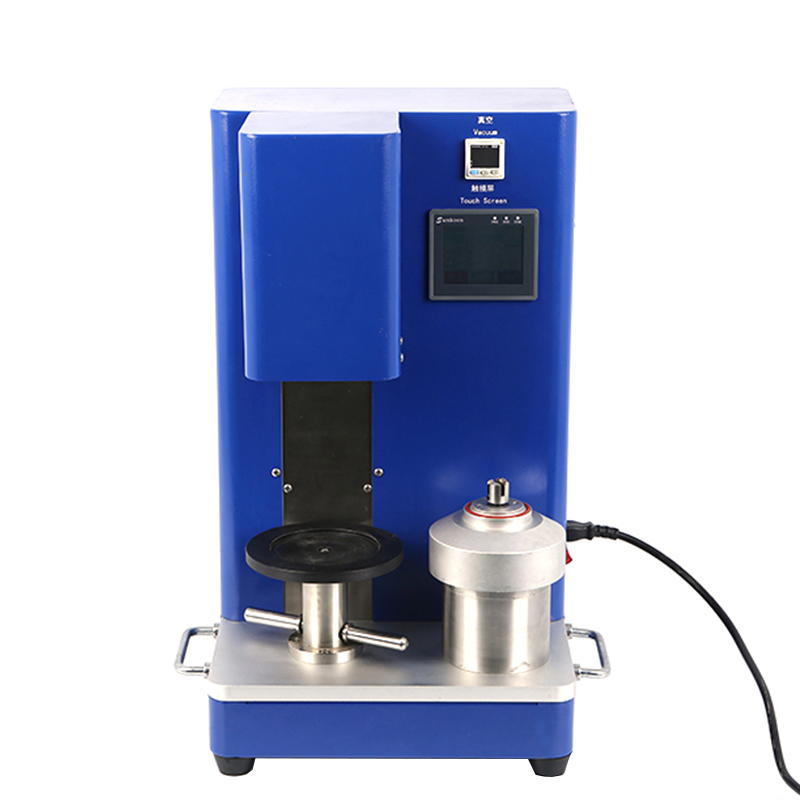

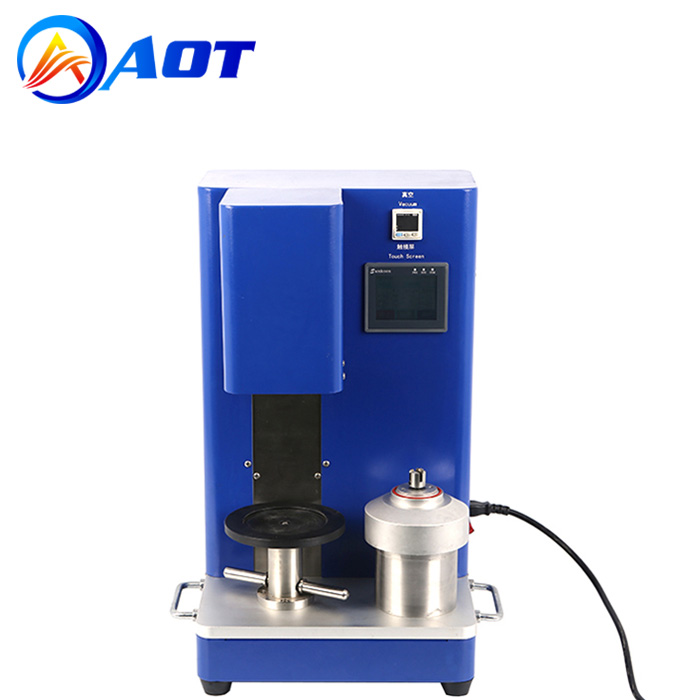

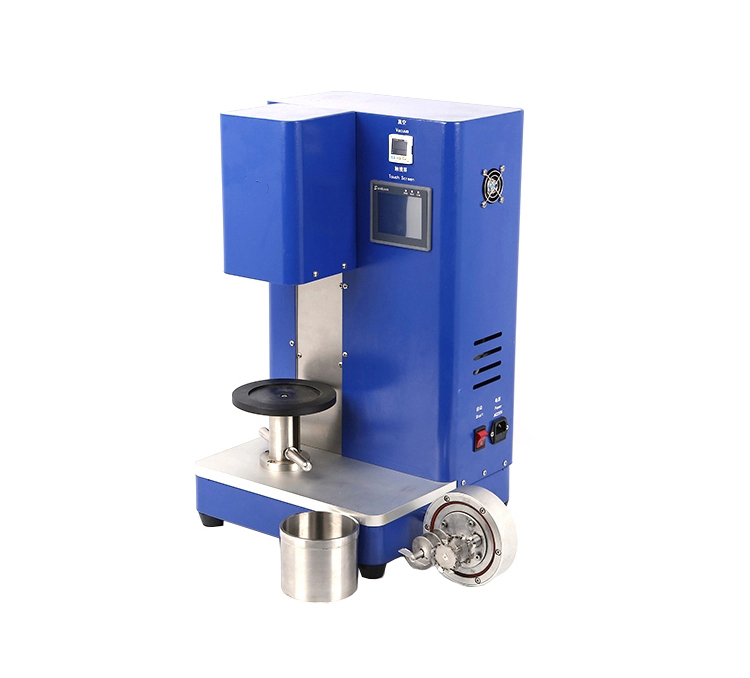

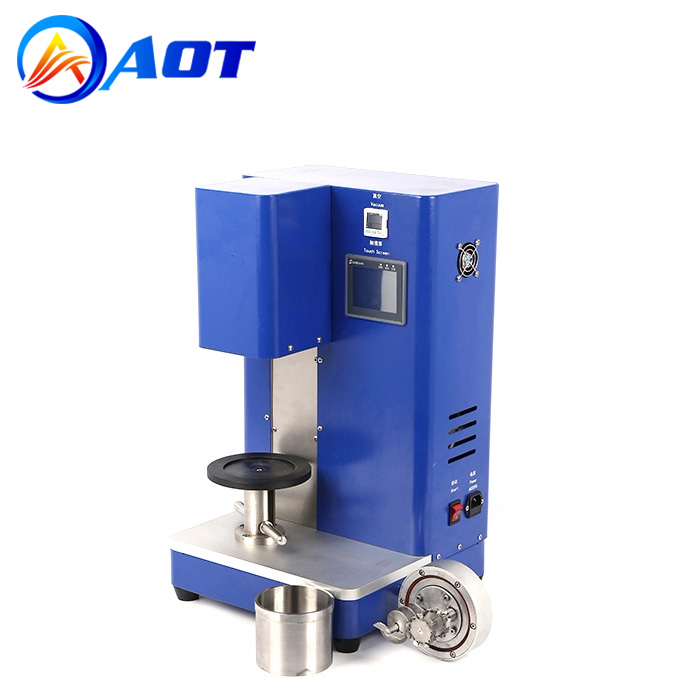

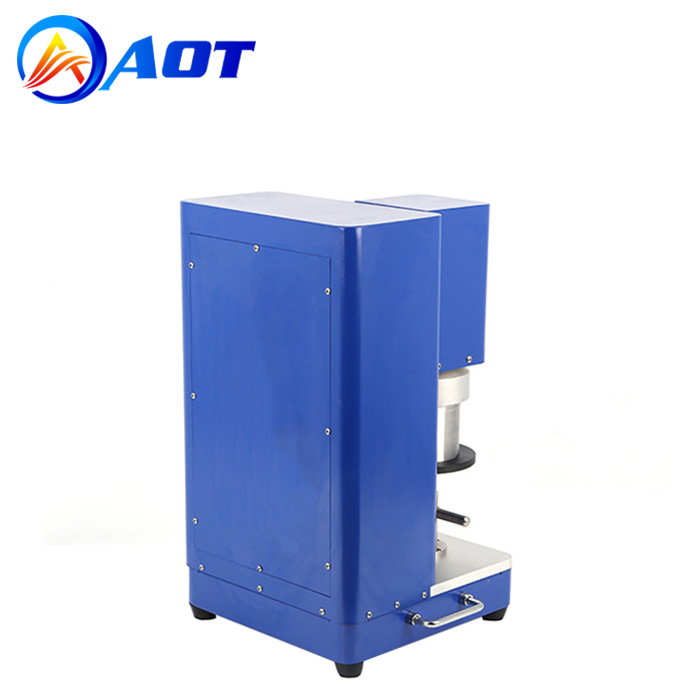

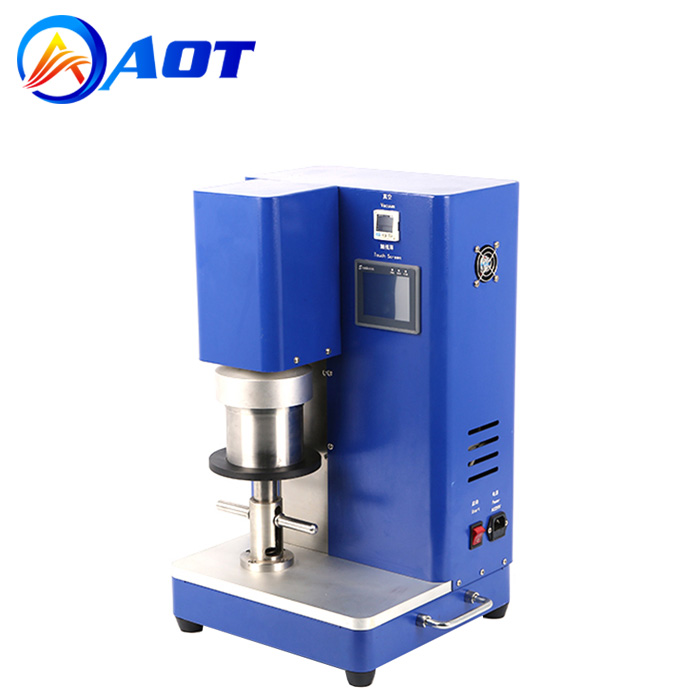

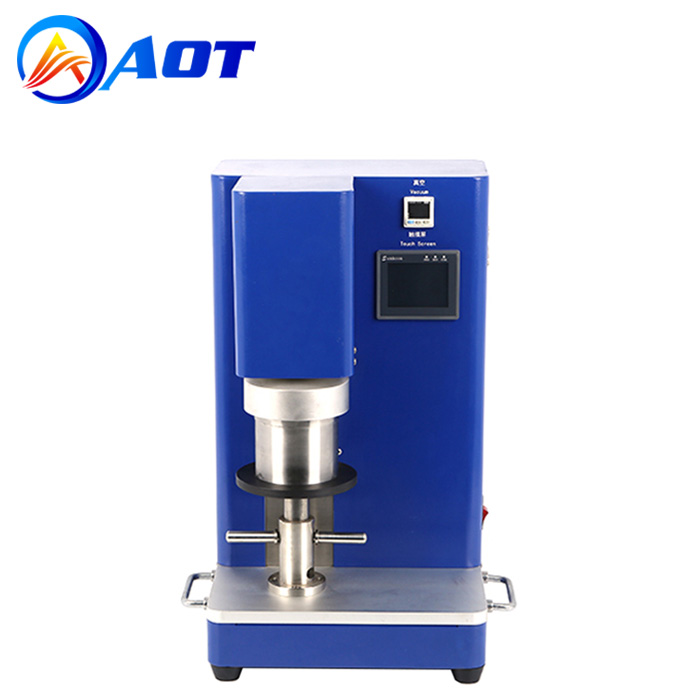

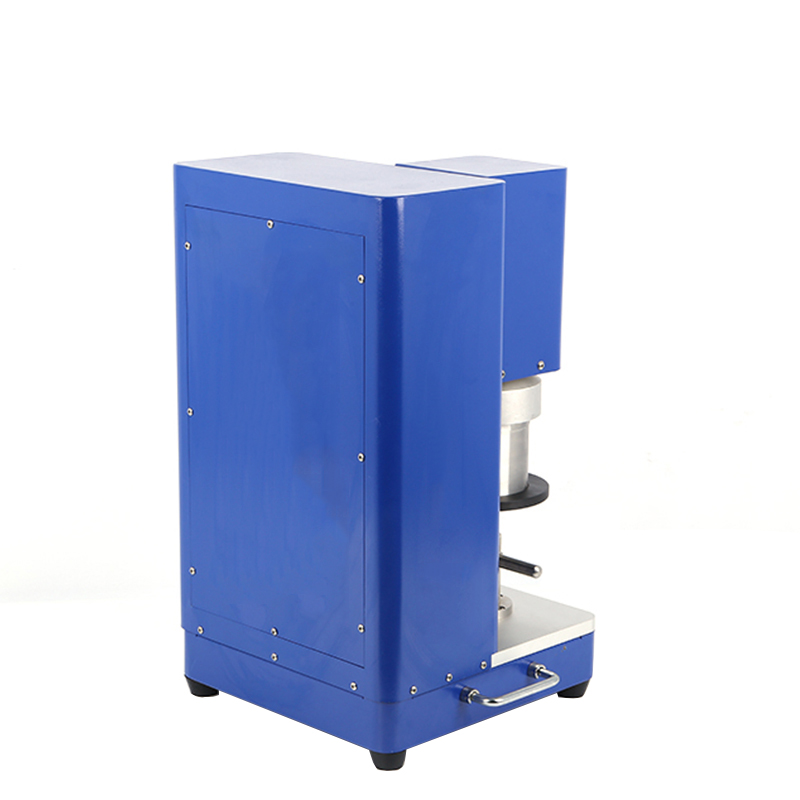

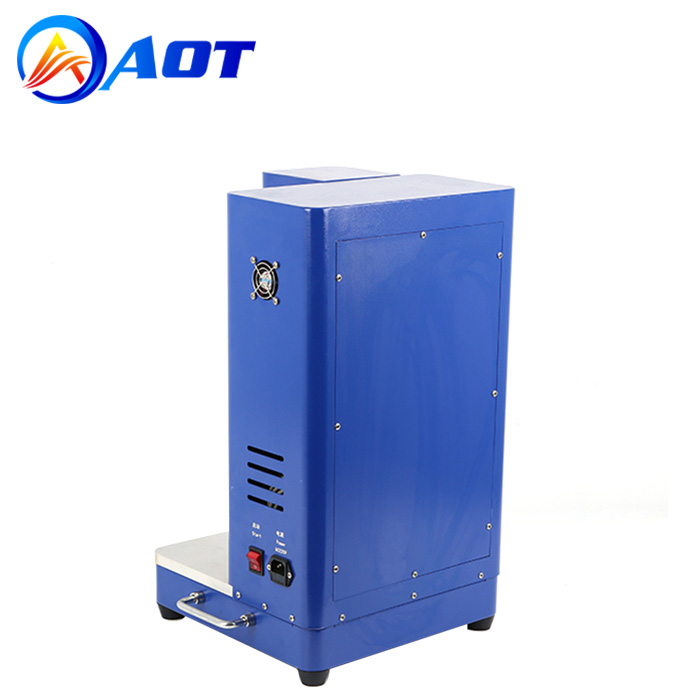

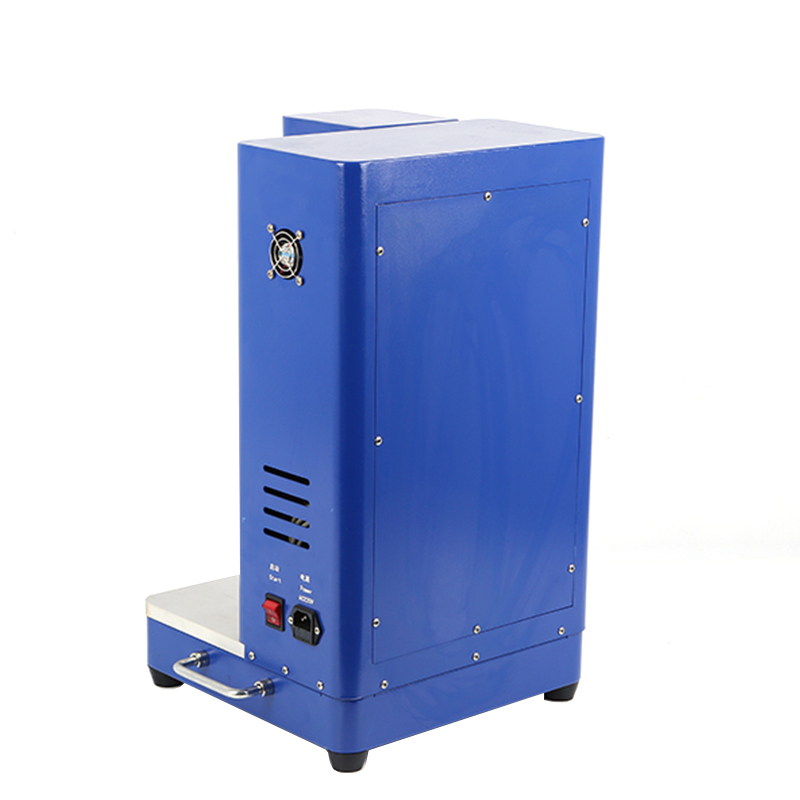

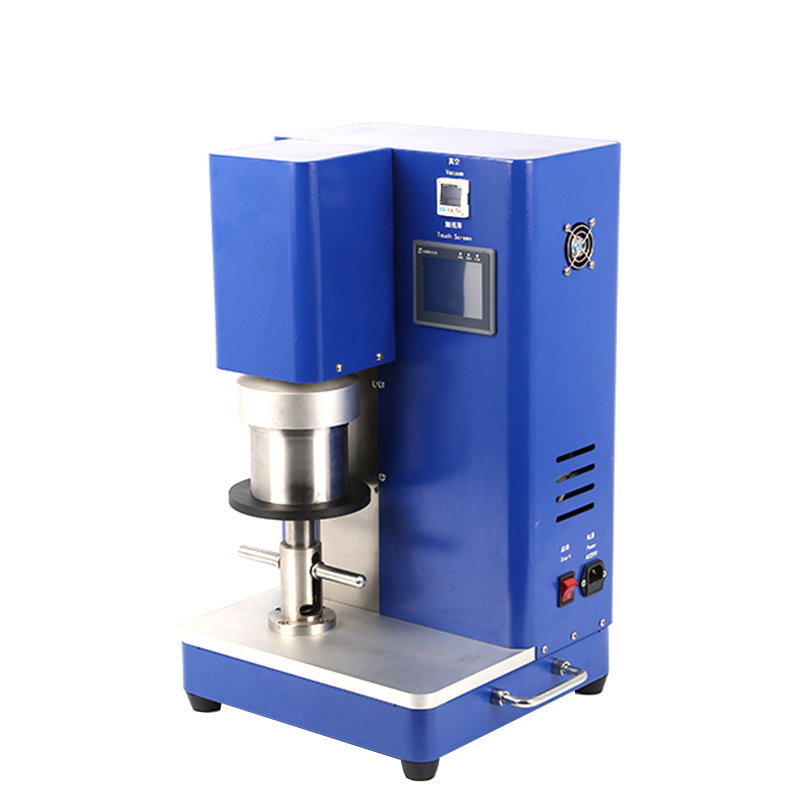

Compact Planetary Vacuum Mixer Machine for Battery Slurry Stirring

  • Model: AOT-PVM-500
  • Paddle: Dual-Shaft
  • Power: 600W
  • Tank volume: 150ml 250ml 500ml
  • Product description: Compact planetary vacuum mixer is a high-efficiency equipment with vacuum and dispersion function, It is suitable for the lithium ion battery lab research during anode and cathode electrode slurry mix
  • INQUIRY

Dual-Shaft Planetary Vacuum Mixer with 150mL 500ml Container for Lithium ion Battery Research

Introduction:

AOT-PVM-500 Compact planetary vacuum mixer is a high-efficiency equipment with vacuum and dispersion function, It is suitable for the lithium ion battery lab research during anode and cathode electrode slurry mixing process, it can be also used for the powdered and ceramic material materials mixing.


Main feature:

1. The equipment comes standard with a two-axis planetary stirring structure, agitator mixing paddles, and different mixing shaft forms and combinations according to the size of the mixing tank.

2. Designed the positive and negative stirring function, which can achieve high speed mixing of higher viscosity slurry, good mixing uniformity

3.Vacuum environment, effectively remove the bubbles generated by the mixing process, the machine comes with a vacuum system

4.Multi-speed operation, set the stirring speed and time of each section, automatic mixing and shutdown

5.Elastic bracket design for easy operation and safety during vacuum mixing process.


Model

Planetary Vacuum Mixing Machine AOT-PVM-500

Source

AC220V/110V

Rated power

600W

Mixing rotate speed

MAX600 turns/min

Vacuum pump

Built-in vacuum pump

Vacuum degree

Less than0.08Mpa

Multi segment function

Three segment can be set

Mixing Jar

standard double-shaft screw stirring paddle

Mixing tank volume

Optional 150ml 250ml500ml SUS304 Stainless Steel Tank

Mixing time

0~600min, itcan be set

Dimension

about 320m*320mm*560mm(L×W×H)

Machine weight

about 30kg
